Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 2 images and 2 PNC and OE references.

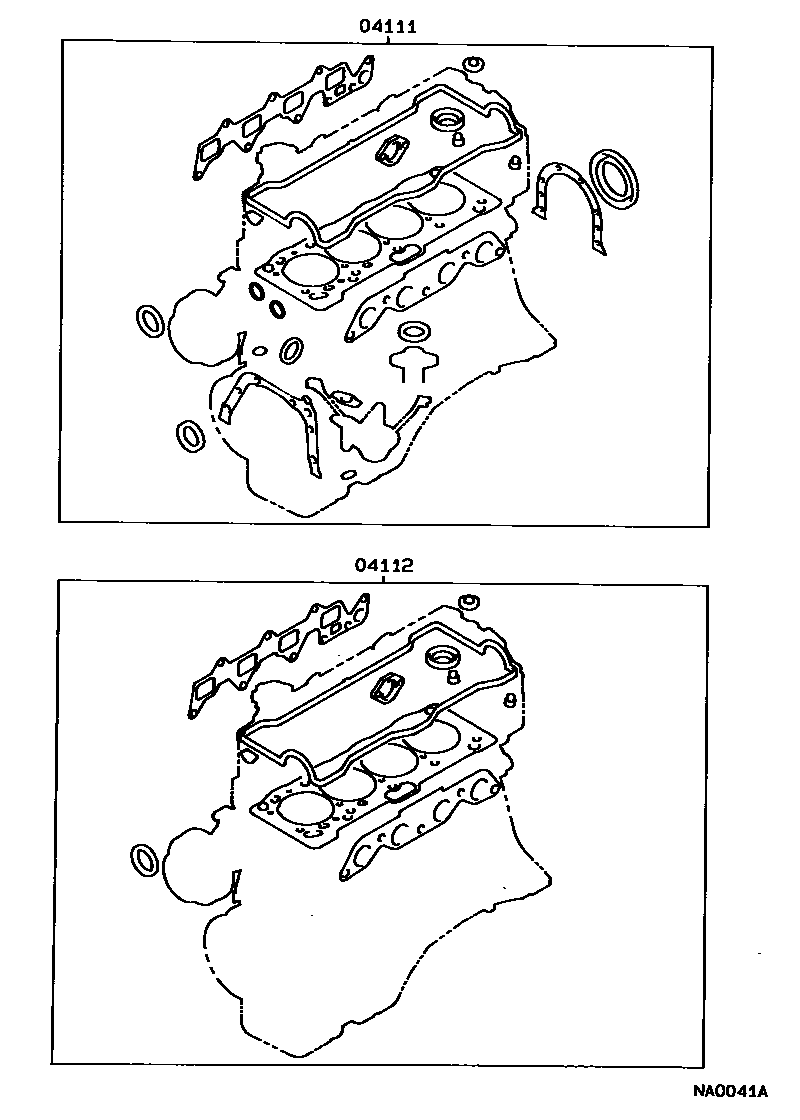

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — NA0041A
Engine Overhaul Gasket Kit — NA0041A (199009 – 999999)

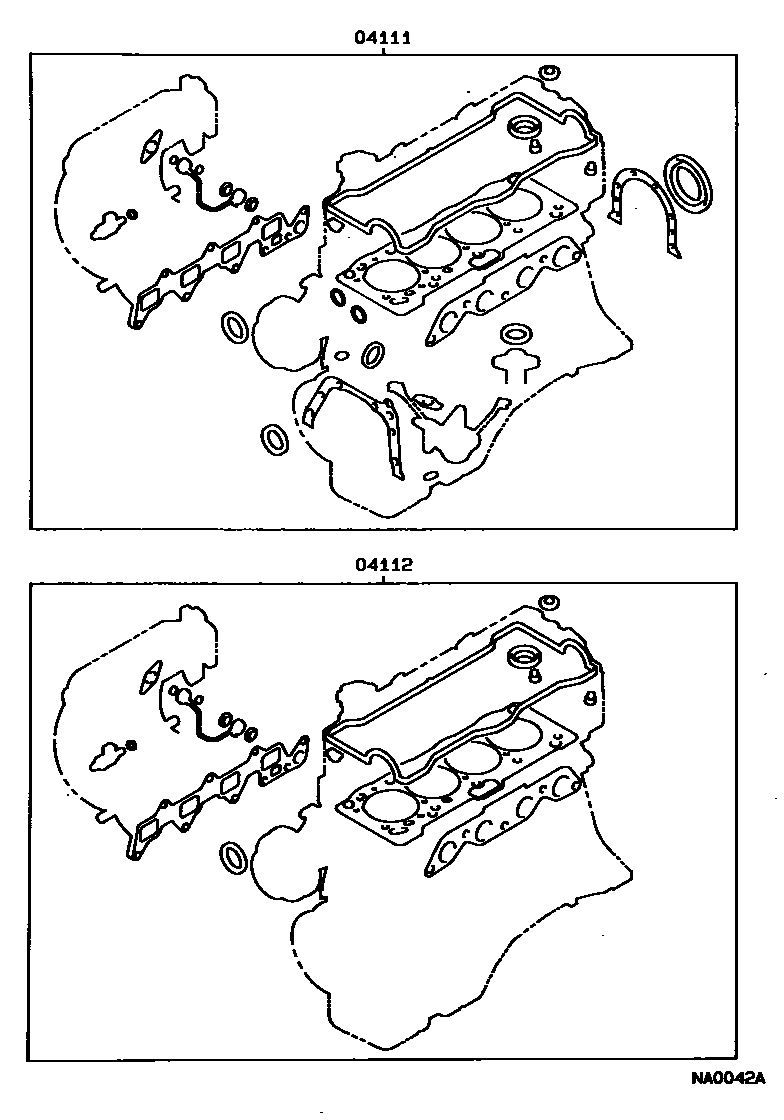

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — NA0042A
Engine Overhaul Gasket Kit — NA0042A (199009 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-16123 · 04111-16142 · 04111-16143 · 04111-16144
04112Engine valve grinding pad assembly04112-16123 · 04112-16143 · 04112-16144
