Toyota COROLLA Partial Engine Assembly — Figure 1101

Toyota COROLLA EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

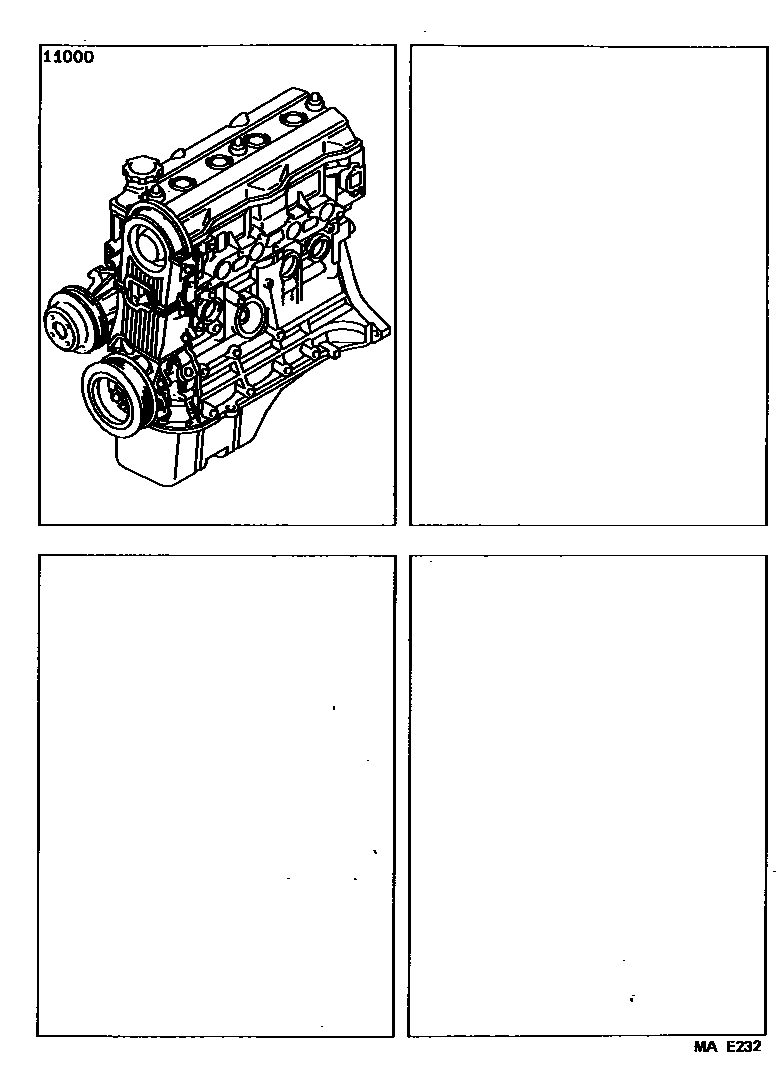

Toyota COROLLA Partial Engine Assembly EPC diagram — MAE232
Partial Engine Assembly — MAE232 (199009 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-16523 · 19000-16524 · 19000-16533 · 19000-16534 · 19000-16573 · 19000-16574
