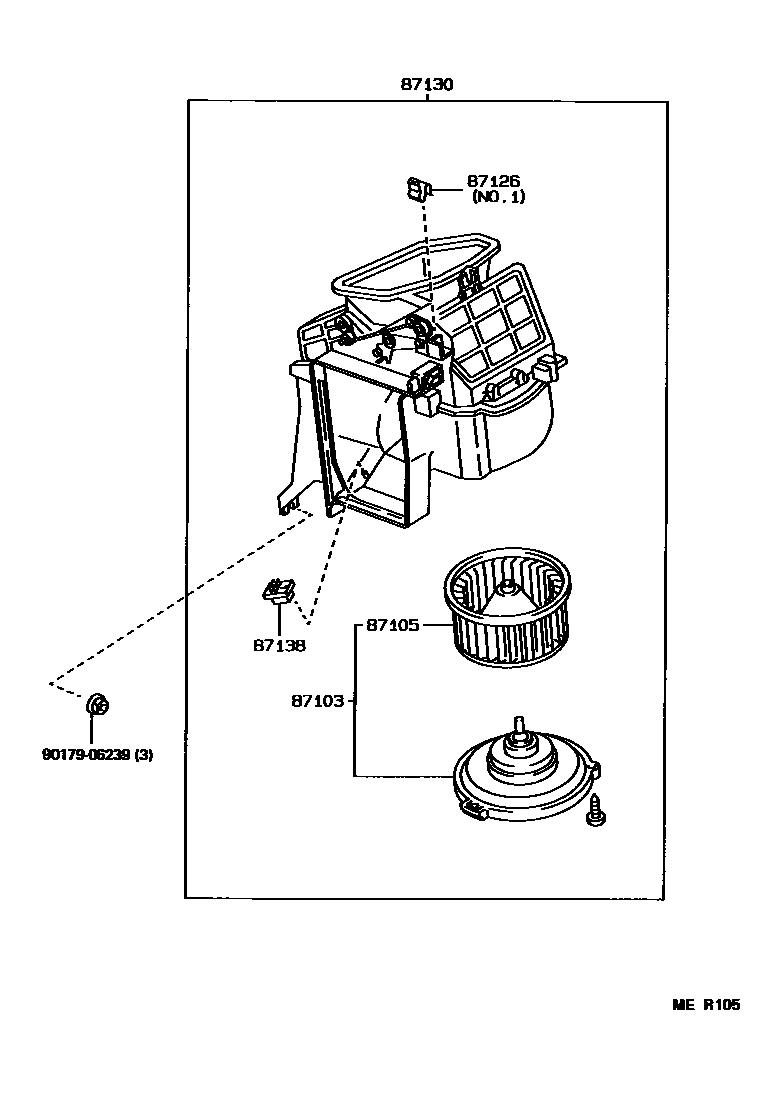

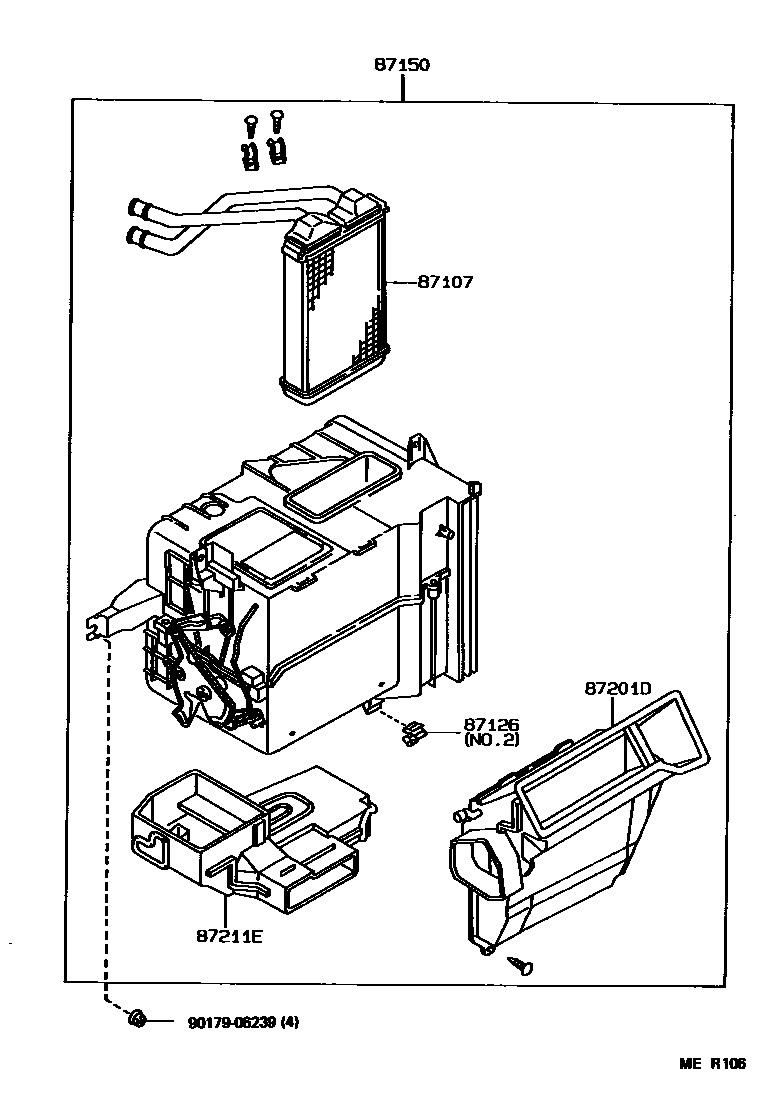

Toyota COROLLA 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712
Toyota COROLLA EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87103 | Heater blower motor sub-assembly with fan | 87103-12020 |
| 87105 | Heater blower fan sub-assembly | 87105-32020 |
| 87107 | Heater radiator device sub-assembly | 87107-12410 · 87107-12420 |
| 87126 | heater control clip | 87126-12040 · 87126-12050 |
| 87130 | Front heater blower assembly | 87130-12270 |
| 87138 | Heater Blower Resistor | 87138-12120 |
| 87150 | Heater radiator assembly | 87150-12480 · 87150-12490 |
| 87201D | Air duct sub-assembly | 87201-12170 |
| 87211E | air duct | 87211-12140 · 87211-12150 |
