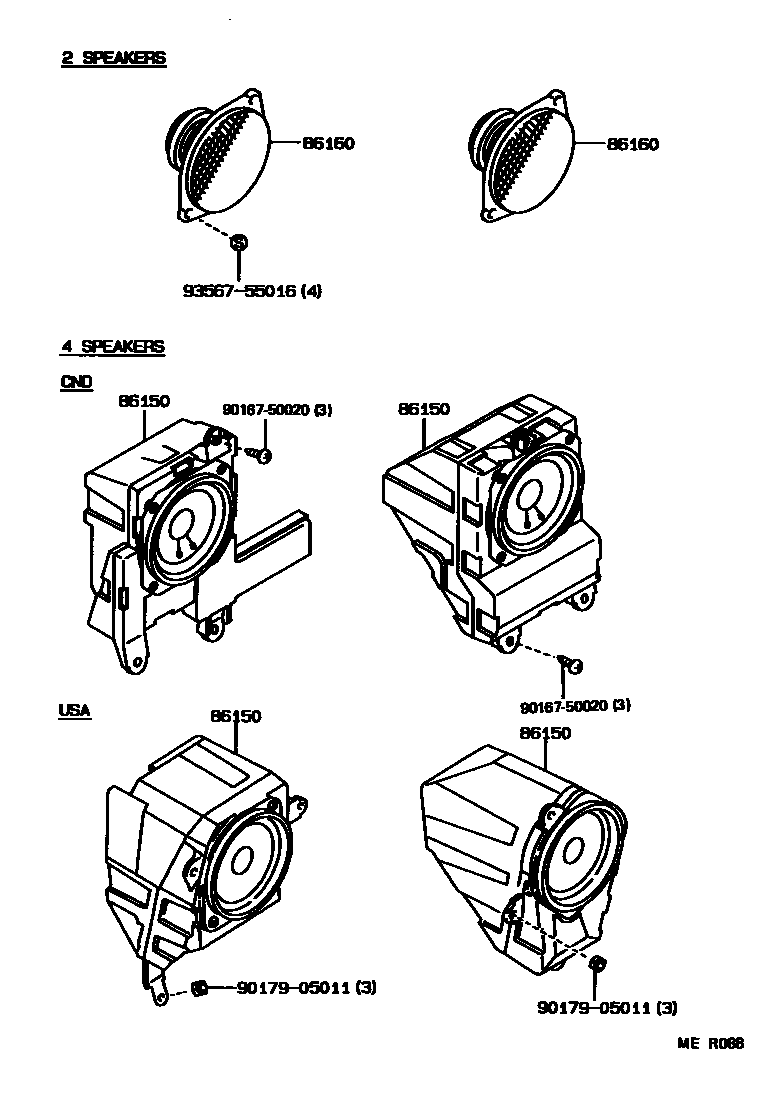

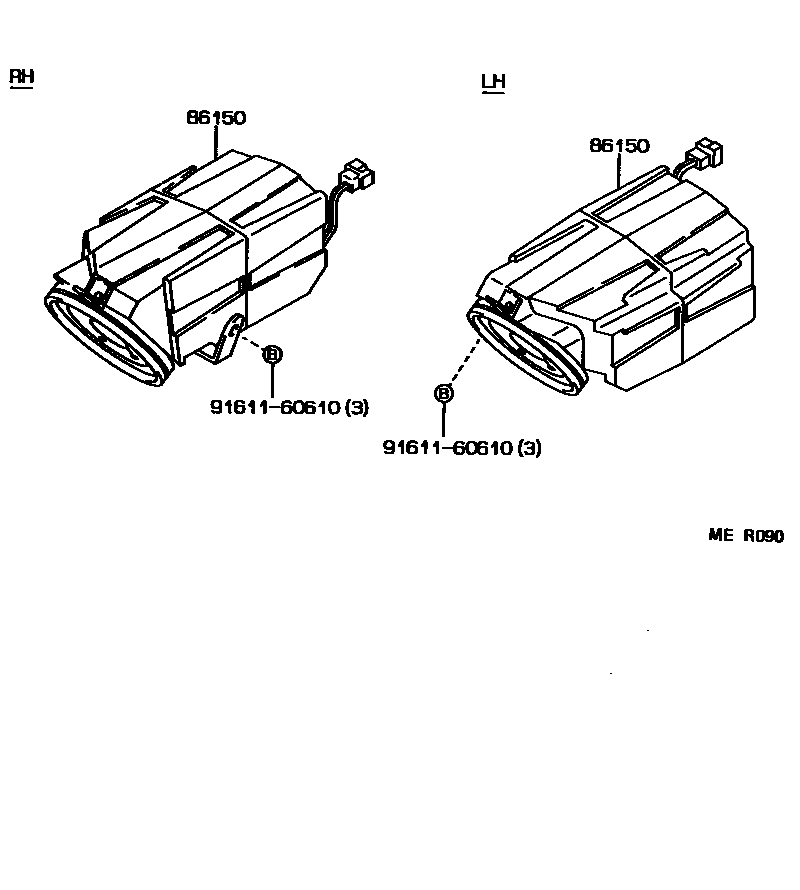

Toyota COROLLA 扬声器 — Figure 8602
Toyota COROLLA EPC diagram 8602, 扬声器, with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86150 | No. 1 loudspeaker assembly with box | 86150-12030 · 86150-12050 · 86150-12081 · 86150-12091 · 86150-12101 · 86150-12111 |
| 86160 | No. 1 front speaker assembly | 86160-12280 · 86160-12290 |
