Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

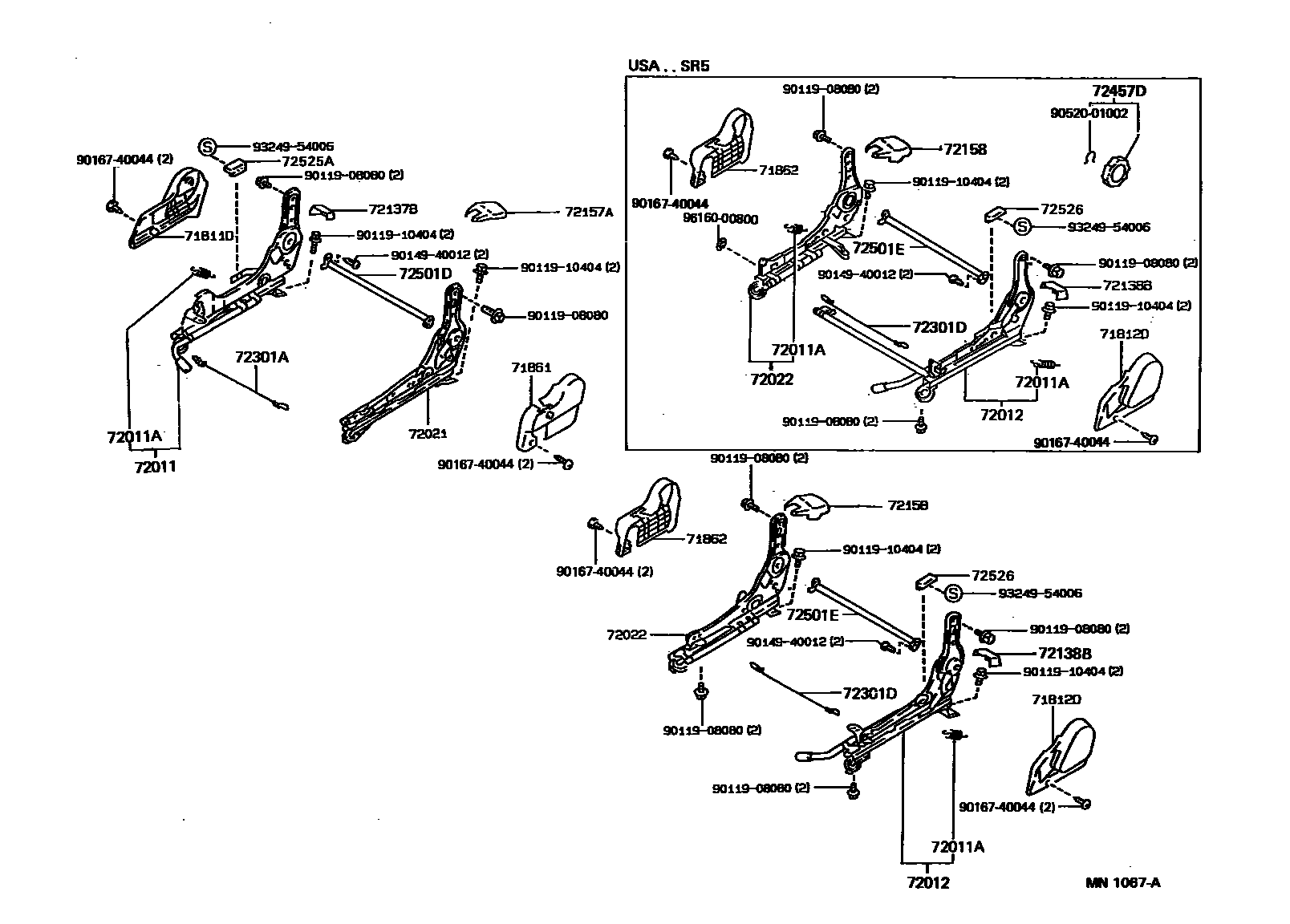

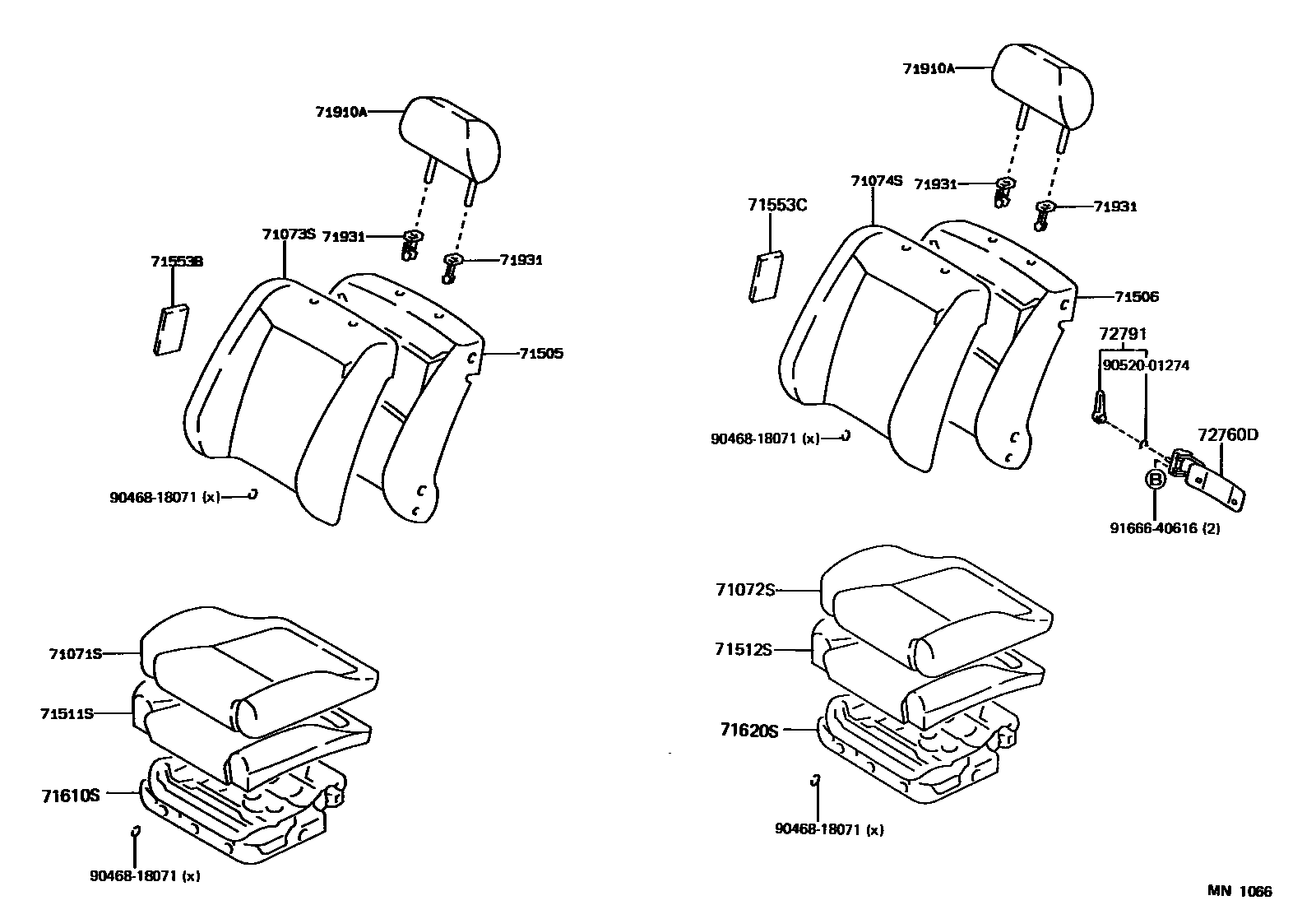

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71505 | Front right seat back cushion sub-assembly with frame | 71505-12070 |
| 71506 | Front left seat back cushion sub-assembly with frame | 71505-12070 · 71505-12080 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12670 · 71511-12680 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-12670 · 71511-12680 |
| 71553B | Front B seat back cushion | 71553-12230 |
| 71553C | Front C seat back cushion | 71553-12230 · 71553-12260 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-12300 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71610-12300 |
| 72011 | Front right seat outer adjuster sub-assembly | 72011-12160 · 72011-12180 |
| 72011A | Tension spring (for front seat outer adjusters) | 90506-14039 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-12160 · 72012-12170 · 72012-12240 · 72012-12250 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-12180 · 72021-12200 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-12170 · 72022-12180 · 72022-12230 · 72022-12240 |
| 72301A | Right seat slide rail balance harness sub-assembly | 72301-12110 |
| 72301D | Left seat slide rail balance harness sub-assembly | 72301-12110 |
| 72501D | Right seat back recline adjuster connecting pipe sub-assembly | 72501-12070 |
| 72501E | Left seat back recline adjuster connecting pipe sub-assembly | 72501-12070 |
| 72760D | Left lumbar support adjuster assembly | 72760-12090 |
