Toyota COROLLA 发动机盖锁和铰链 — Figure 5303

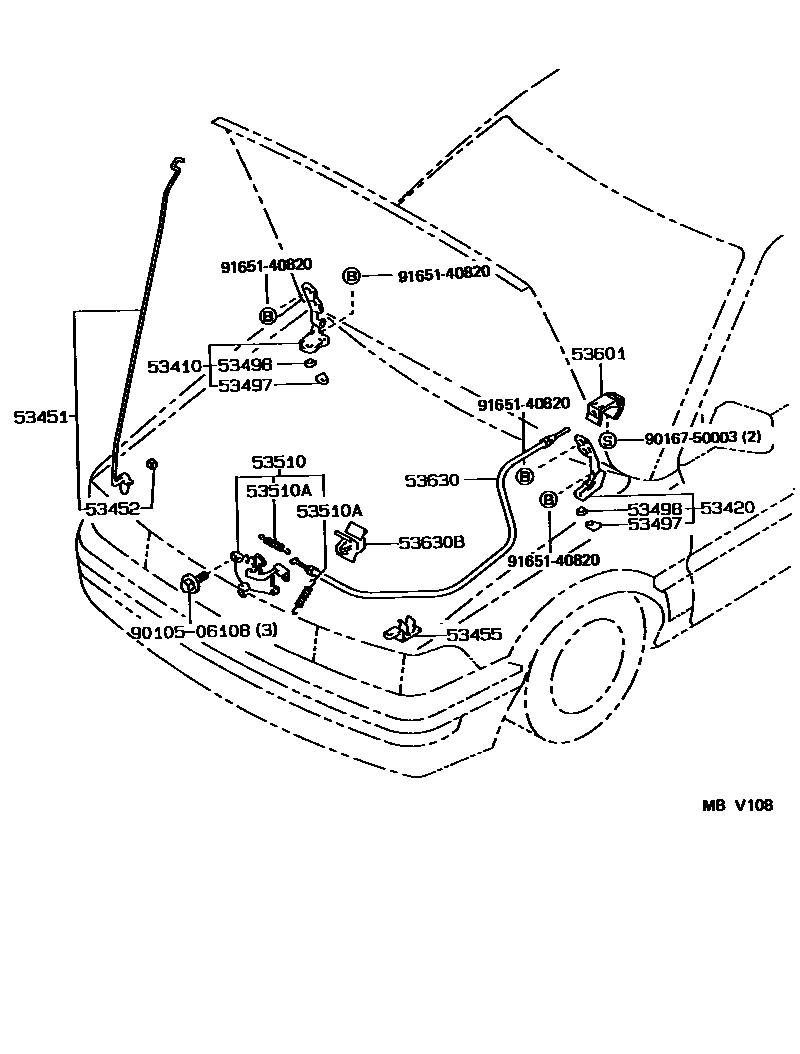

Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-12181 |
| 53420 | Engine cover left hinge assembly | 53420-12171 |
| 53451 | Engine cover support rod | 53451-12101 |
| 53452 | Engine cover stay rod fixing | 53452-12020 |
| 53455 | Engine cover support rod clip | 53455-12080 |
| 53497 | No. 1 engine cover hinge gasket | 53497-12011 |
| 53498 | No. 2 engine cover hinge gasket | 53498-12011 |
| 53510 | Engine cover lock assembly | 53510-12360 |
| 53510A | Tension spring (for hood lock) | 90506-09008 · 90506-09038 · 90506-20008 |
| 53630 | Engine hood lock control cable assembly | 53630-12250 |
| 53630B | Clip (for hood lock control cable) | 90467-09043 |
