Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804

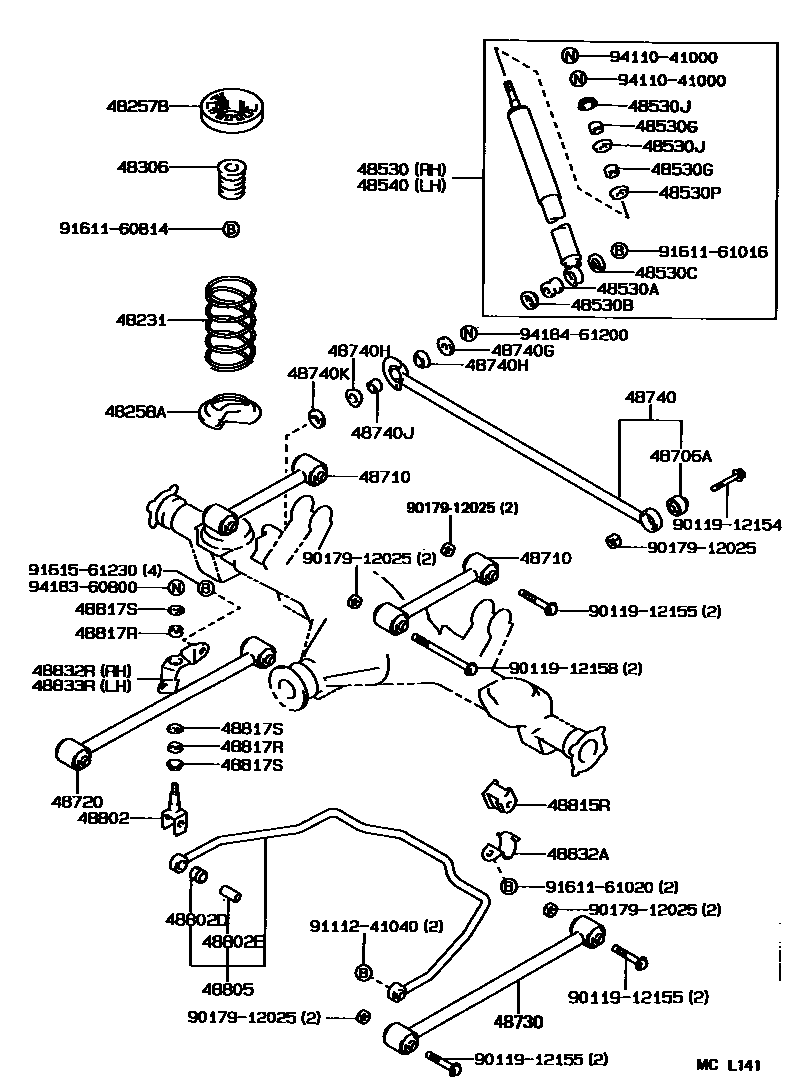

Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48231 | rear coil spring | 48231-1A860 |
| 48257B | Rear coil spring upper vibration isolation pad | 48257-12020 |
| 48258A | Rear coil spring lower vibration isolation pad | 48258-12010 |
| 48306 | Rear spring buffer block sub-assembly | 48306-12070 |
| 48530 | Right rear shock absorber assembly | 48531-80101 |
| 48530A | Bushing (for rear shock absorber) | 90385-16004 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-03004 |
| 48530C | Rear shock absorber No. 2 cushion washer | 90948-02047 · 90948-03012 |
| 48530G | Rear shock absorber No. 1 cushion | 90948-01003 · 90948-01018 |
| 48530J | No. 1 cushion block (for rear shock absorber) | 90948-02002 |
| 48530P | No. 2 buffer pad block (for rear shock absorber) | 90948-02007 |
| 48540 | Left rear shock absorber assembly | 48531-80101 |
| 48706A | Rear transverse control rod bushing sub-assembly | 48706-14010 |
| 48710 | Upper control arm assembly | 48710-12140 |
| 48720 | Right lower control arm assembly | 48720-12080 |
| 48730 | Left lower control arm assembly | 48720-12080 |
| 48740 | Rear transverse control rod assembly | 48740-12040 |
| 48740G | No. 1 flat washer (for rear transverse control lever) | 90201-12010 |
| 48740H | Bushing No. 1 (for rear transverse control rod) | 90385-20007 |
| 48740J | Bushing No. 2 (for rear transverse control rod) | 90386-20001 |
| 48740K | No. 2 flat washer (for rear transverse control lever) | 94612-12000 |
| 48802 | Stabilizer bar connecting rod sub-assembly | 48802-12040 |
| 48802D | Stabilizer bar connecting rod bushing | 90385-11021 |
| 48802E | Spacer (for rear stabilizer bar) | 90560-10275 |
| 48805 | Rear stabilizer bar sub-assembly | 48805-12090 |
| 48815R | Rear stabilizer bar bushing | 48815-20020 |
| 48817R | Stabilizer bumper (for rear stabilizer link) | 48817-12010 |
| 48817S | Crash pad block No. 1 (for rear stabilizer bar) | 90948-02024 · 90948-02025 |
| 48832A | Rear stabilizer bar No. 1 bracket | 48832-22020 |
| 48832R | Right rear stabilizer bar bracket No. 1 | 48832-12011 |
| 48833R | Left rear stabilizer bar bracket No. 1 | 48833-12011 |
