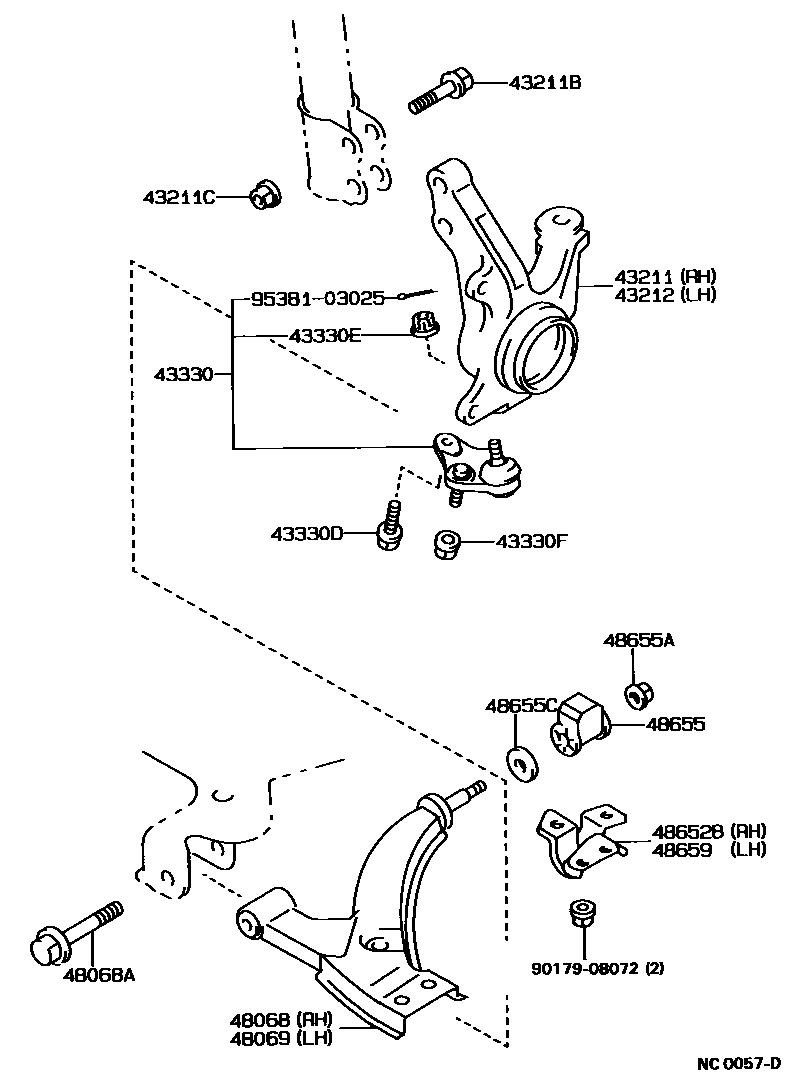

Toyota COROLLA 前桥控制臂和转向节 — Figure 4802
Toyota COROLLA EPC diagram 4802, 前桥控制臂和转向节, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 43211 | Right steering knuckle | 43211-12110 · 43211-12120 |
| 43211B | Bolts (for securing the shock absorber) | 90105-15001 |
| 43211C | Nut (for fixing the shock absorber) | 90179-15001 |
| 43212 | left steering knuckle | 43212-12070 · 43212-12080 |
| 43330 | Front lower ball joint assembly | 43330-19066 · 43340-19016 |
| 43330D | Bolt (for front lower ball joint) | 90105-12156 |
| 43330E | Castle nut (used to secure the front lower ball joint) | 90171-14003 |
| 43330F | Nut (used to secure the front lower ball joint) | 90179-12070 |
| 48068 | Right front suspension No. 1 lower arm sub-assembly | 48068-12110 |
| 48068A | Bolt (for front suspension lower arm) | 90119-14023 |
| 48069 | Left front suspension No. 1 lower arm sub-assembly | 48069-12110 |
| 48652B | Right front lower arm brace | 48652-12010 |
| 48655 | No. 2 lower arm bushing | 48655-12010 · 48655-12060 |
| 48655A | Nut (for suspension No. 2 lower arm bushing) | 90179-14006 |
| 48655C | No. 2 Cushion Pad Block (for Suspension No. 2 Lower Arm Bushing) | 90948-02061 |
| 48659 | Left front lower arm brace | 48659-12010 |
