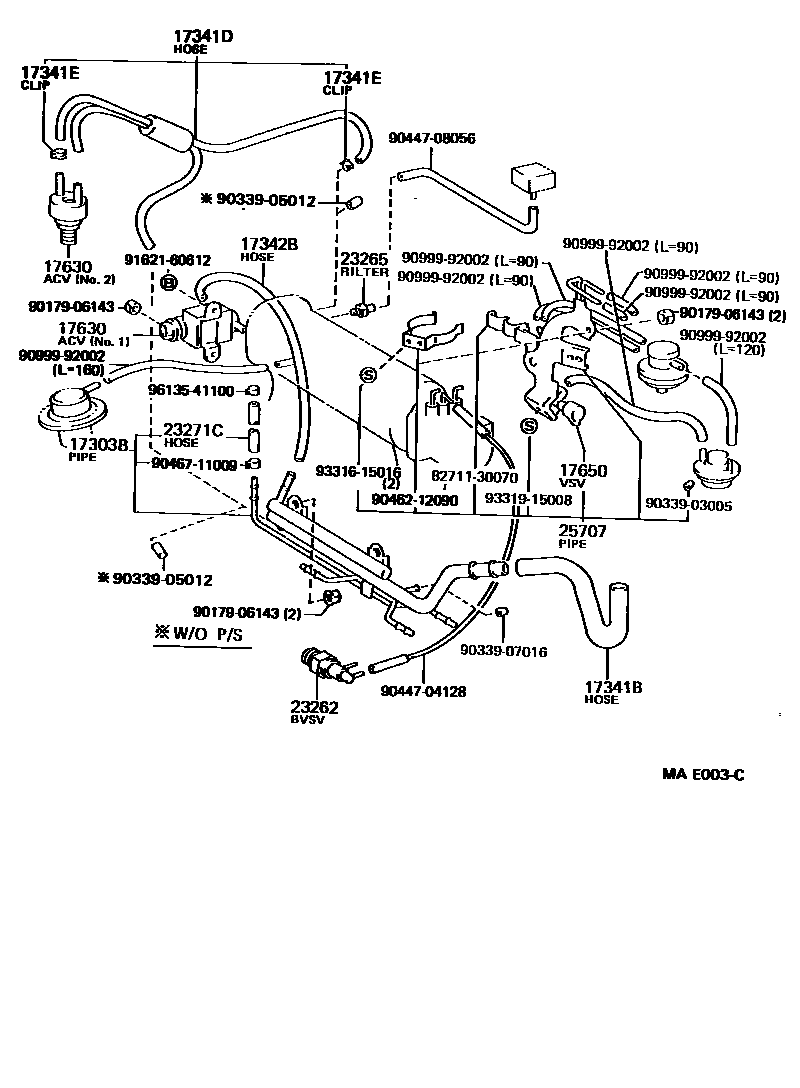

Toyota COROLLA vacuum tube — Figure 1708
Toyota COROLLA EPC diagram 1708, vacuum tube, with 2 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303B | No. 1 air pipe sub-assembly | 17303-16140 |
| 17341B | Hoses No. 1 (for air injection systems) | 17341-15170 |
| 17341D | No. 1 hose (for idle boost) | 17302-16010 |
| 17341E | Clamp No. 1 (for idle lift hose) | 96132-30400 |
| 17342B | No. 2 hose (for idle boost) | 90445-10029 |
| 17630 | Air control valve assembly | 17630-15060 · 17630-16070 |
| 17650 | Vacuum switch valve assembly | 90910-12091 |
| 23262 | No. 1 bimetallic vacuum switch valve | 90925-05068 |
| 23265 | No. 1 gas filter | 90917-11022 |
| 23271C | fuel hose | 95333-06020 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-16151 |
