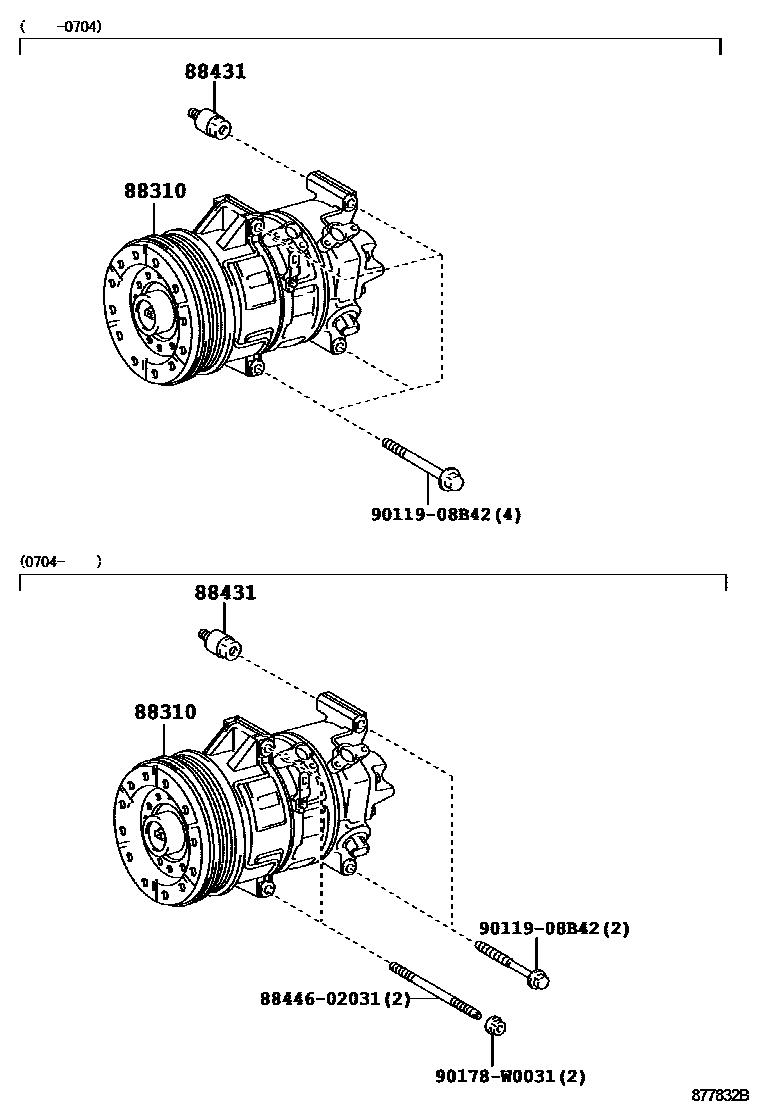

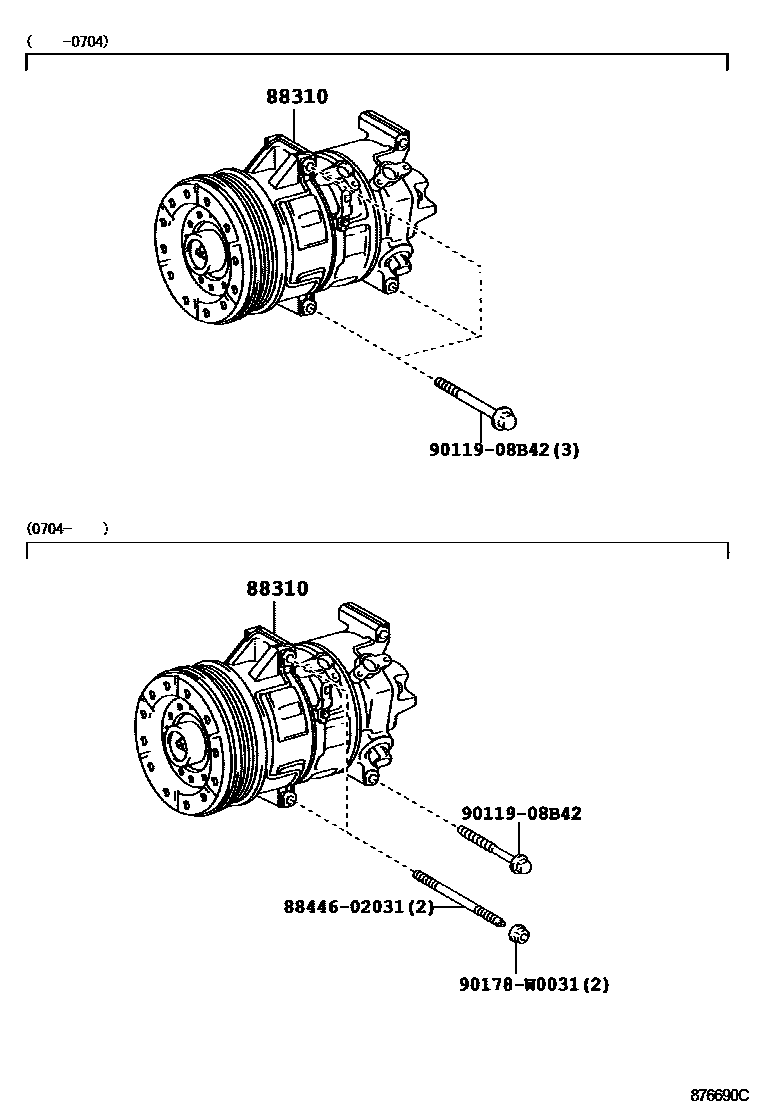

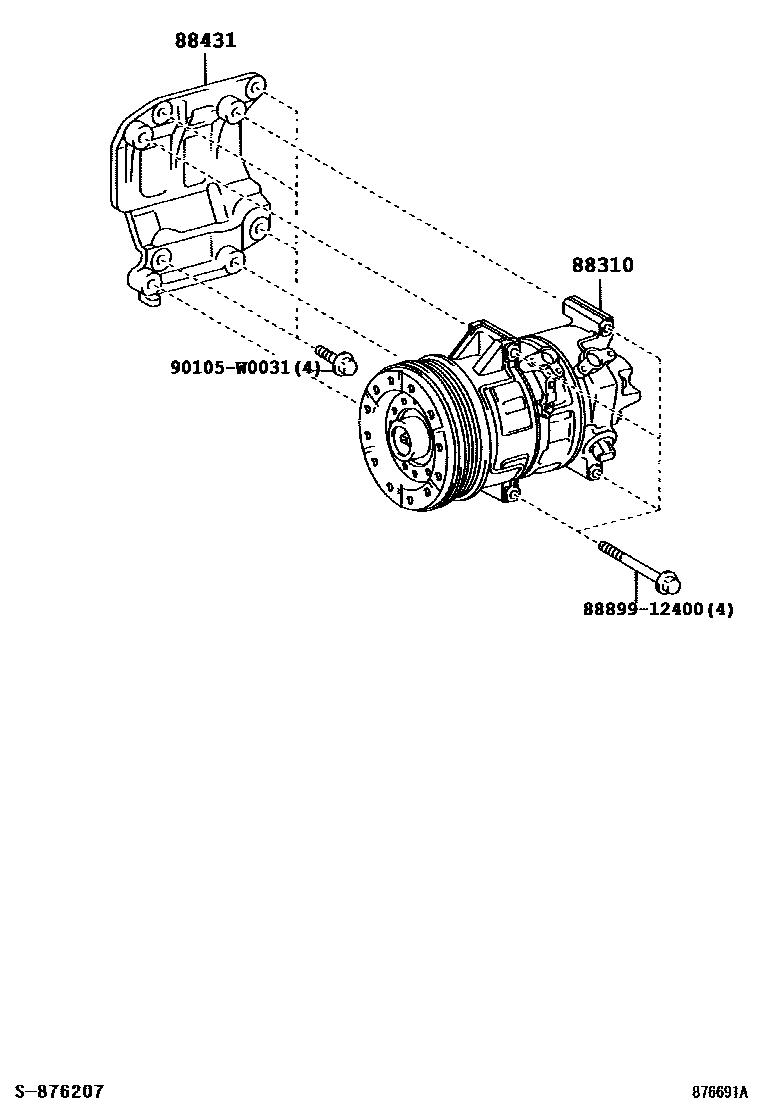

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88310 | Compressor assembly with pulley | 88310-0F010 · 88310-0F020 · 88310-0F021 · 88310-0F030 |
| 88431 | Compressor No. 1 mounting bracket | 88431-05010 · 88433-20040 |
