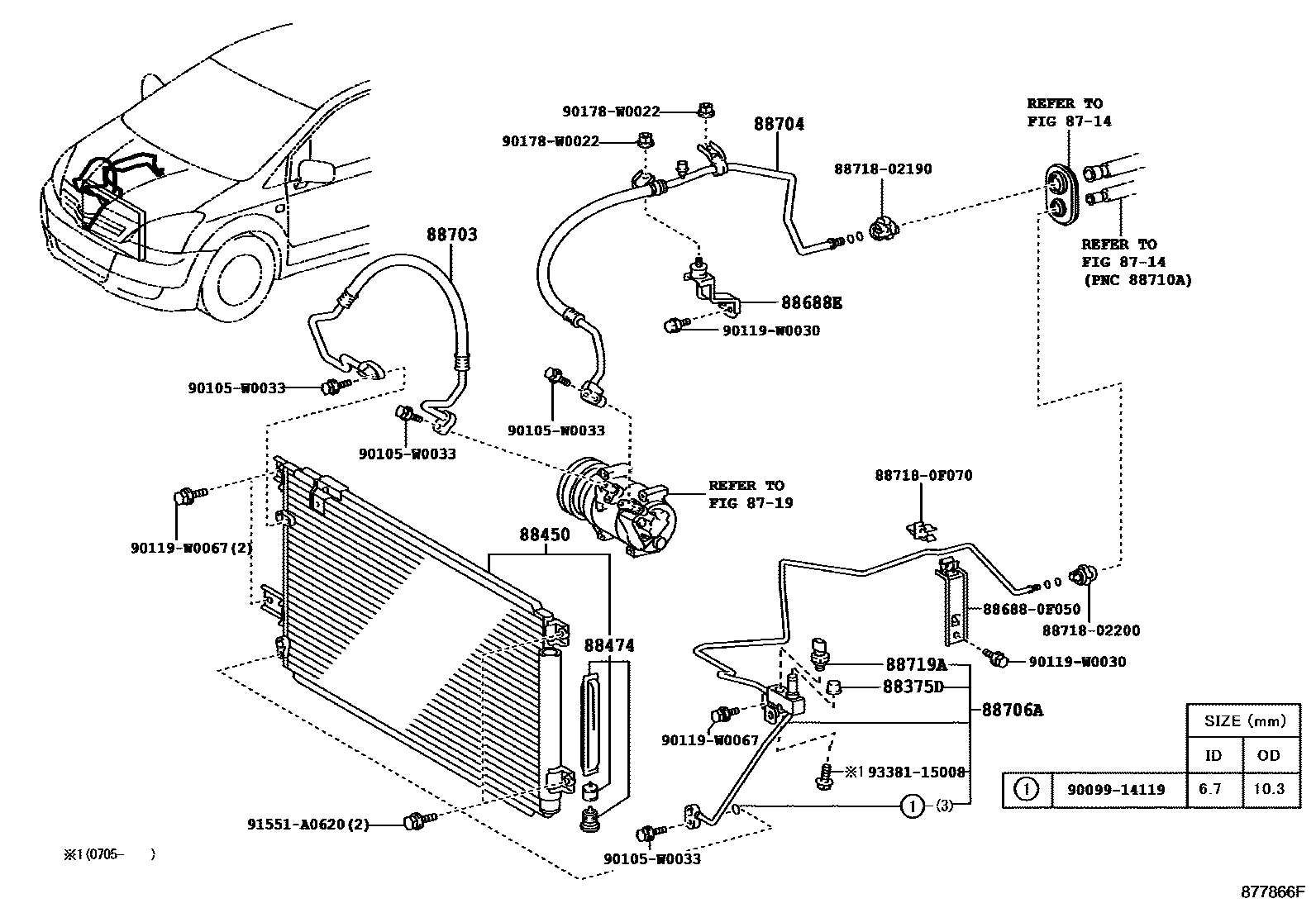

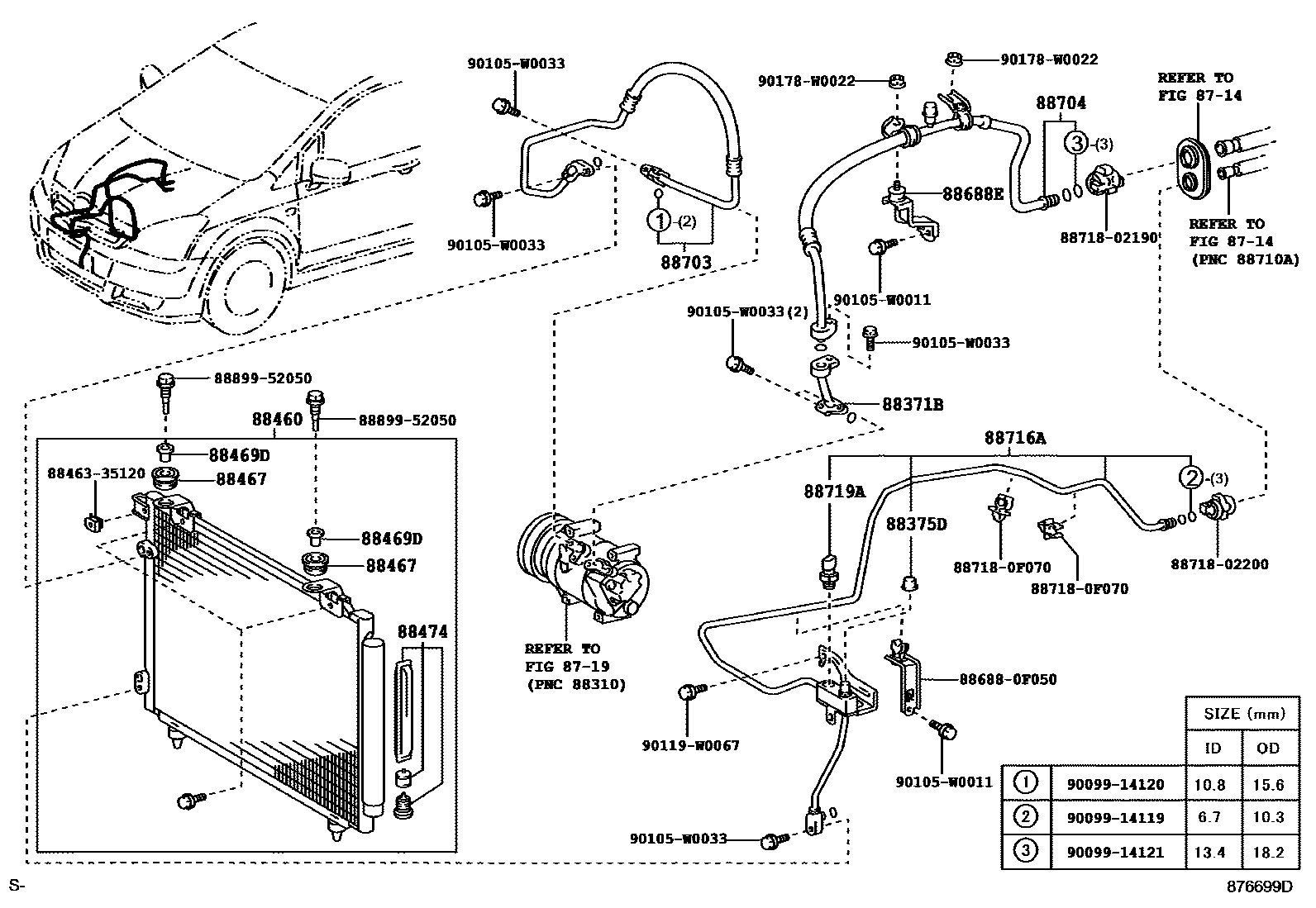

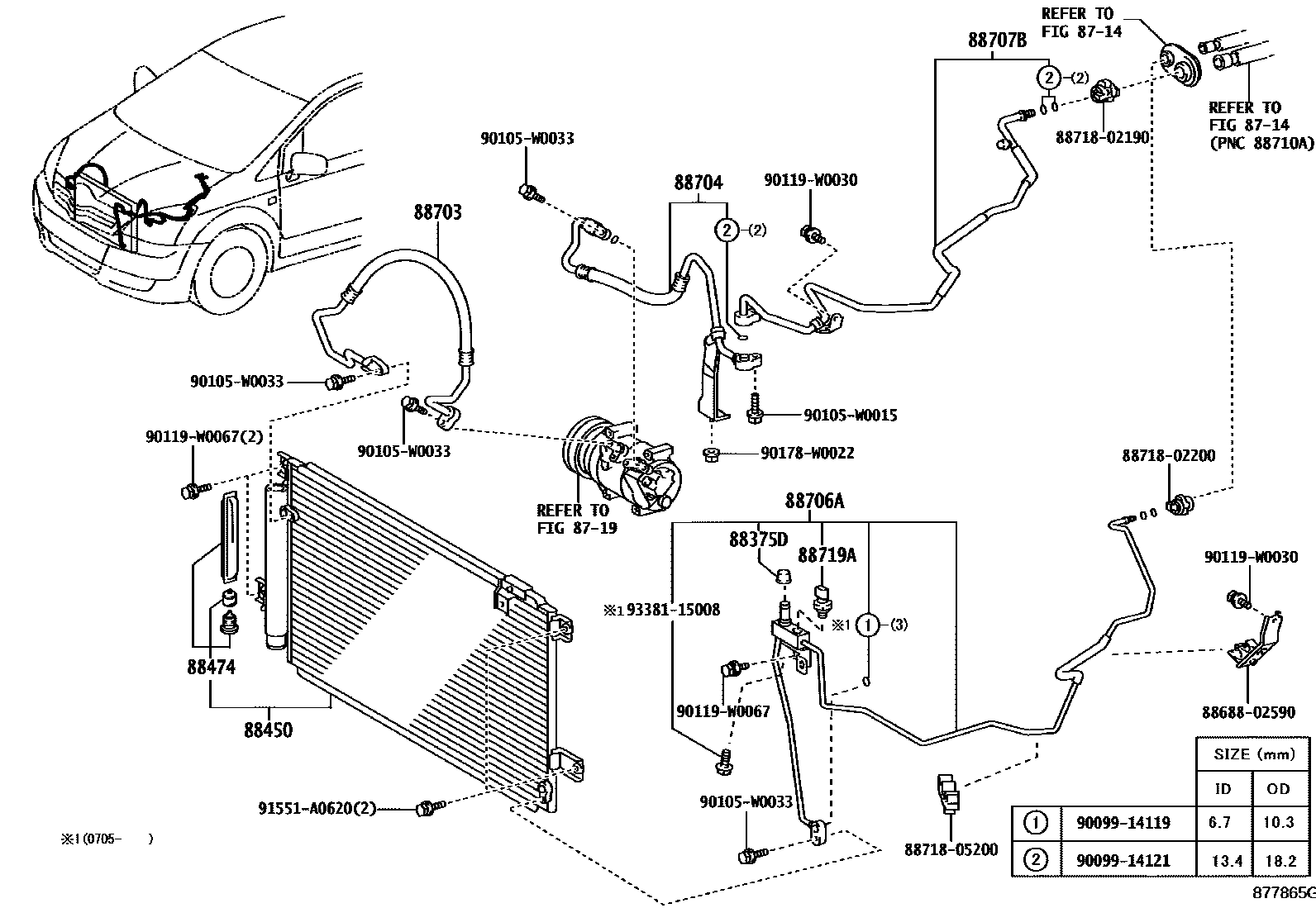

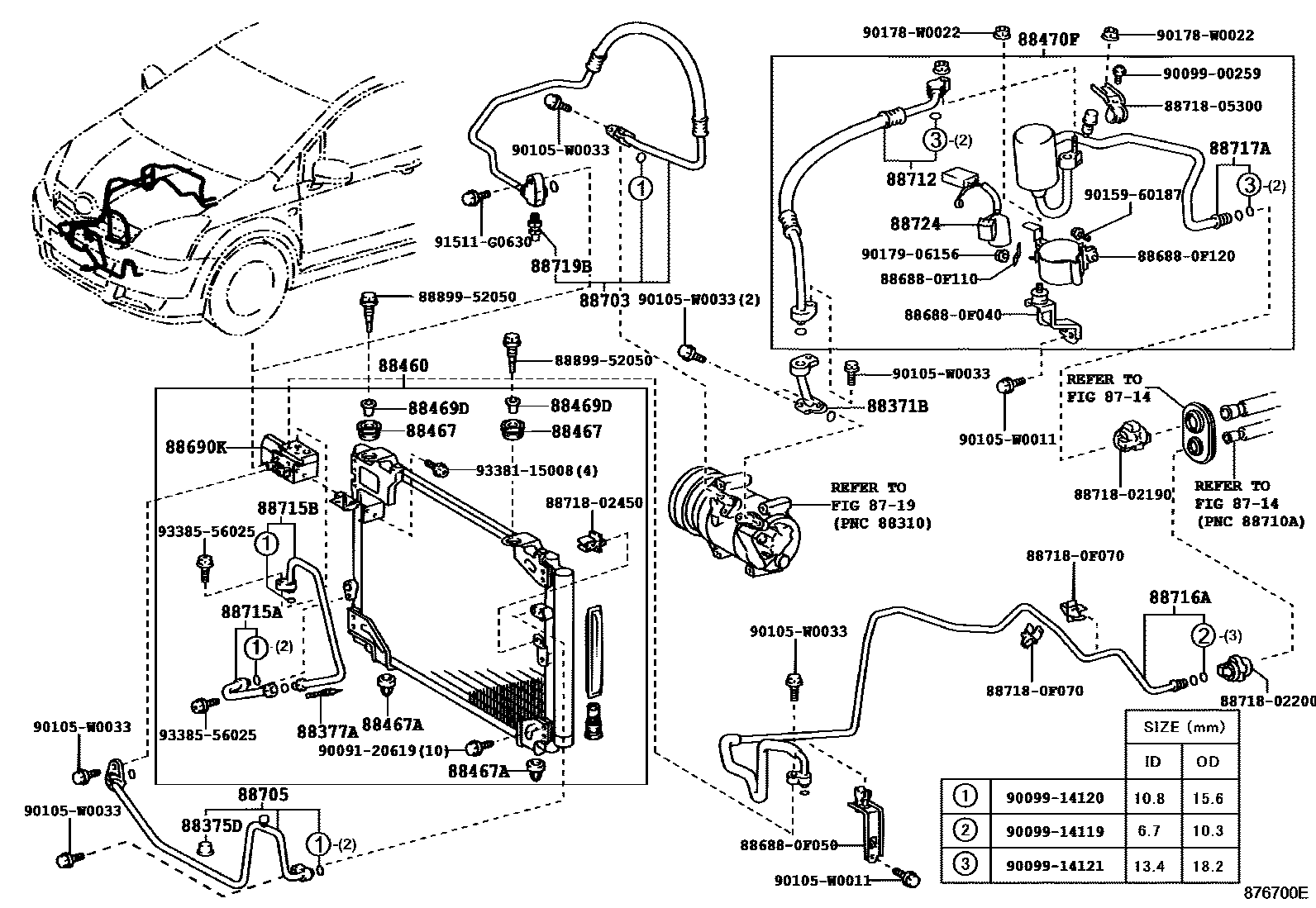

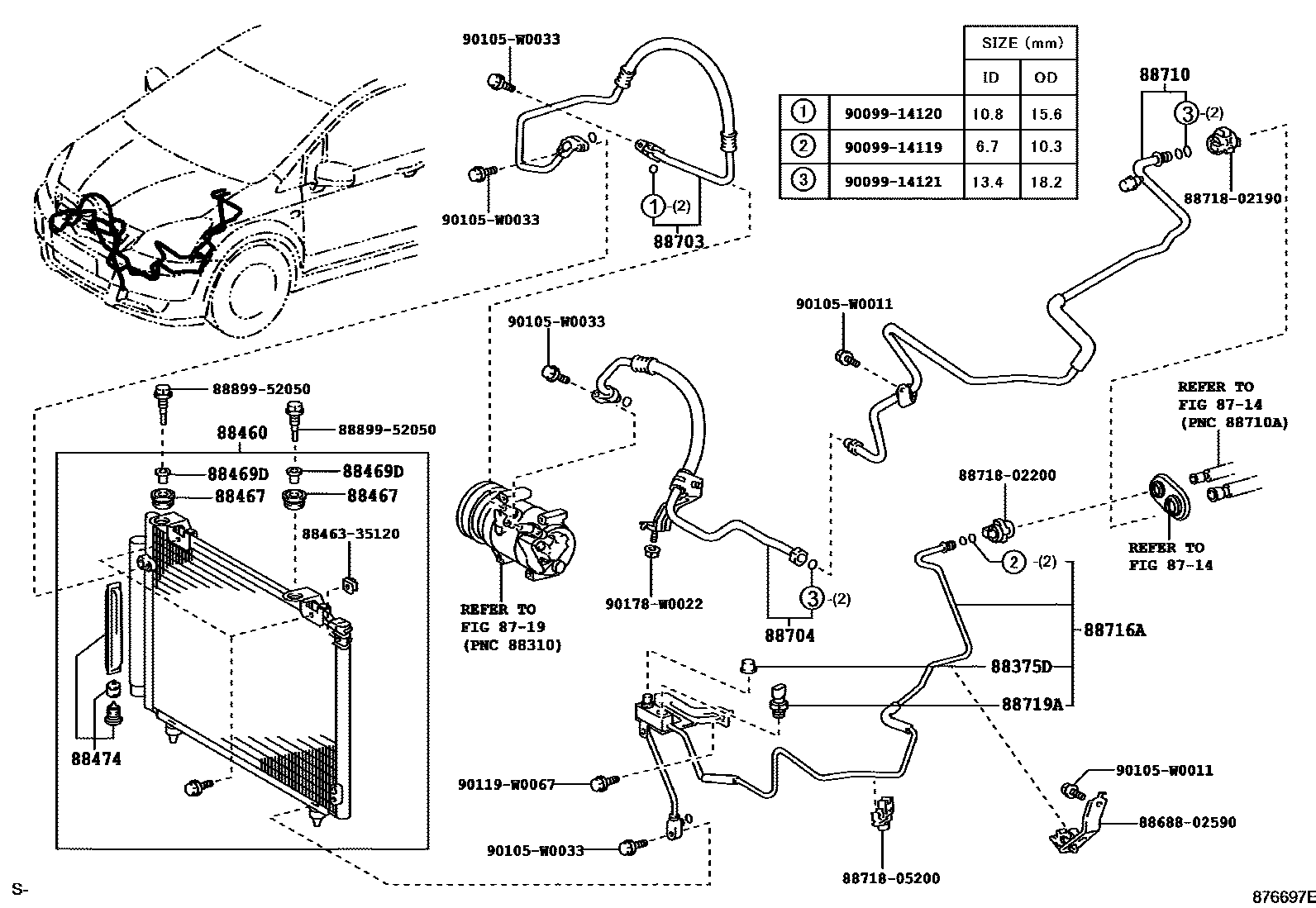

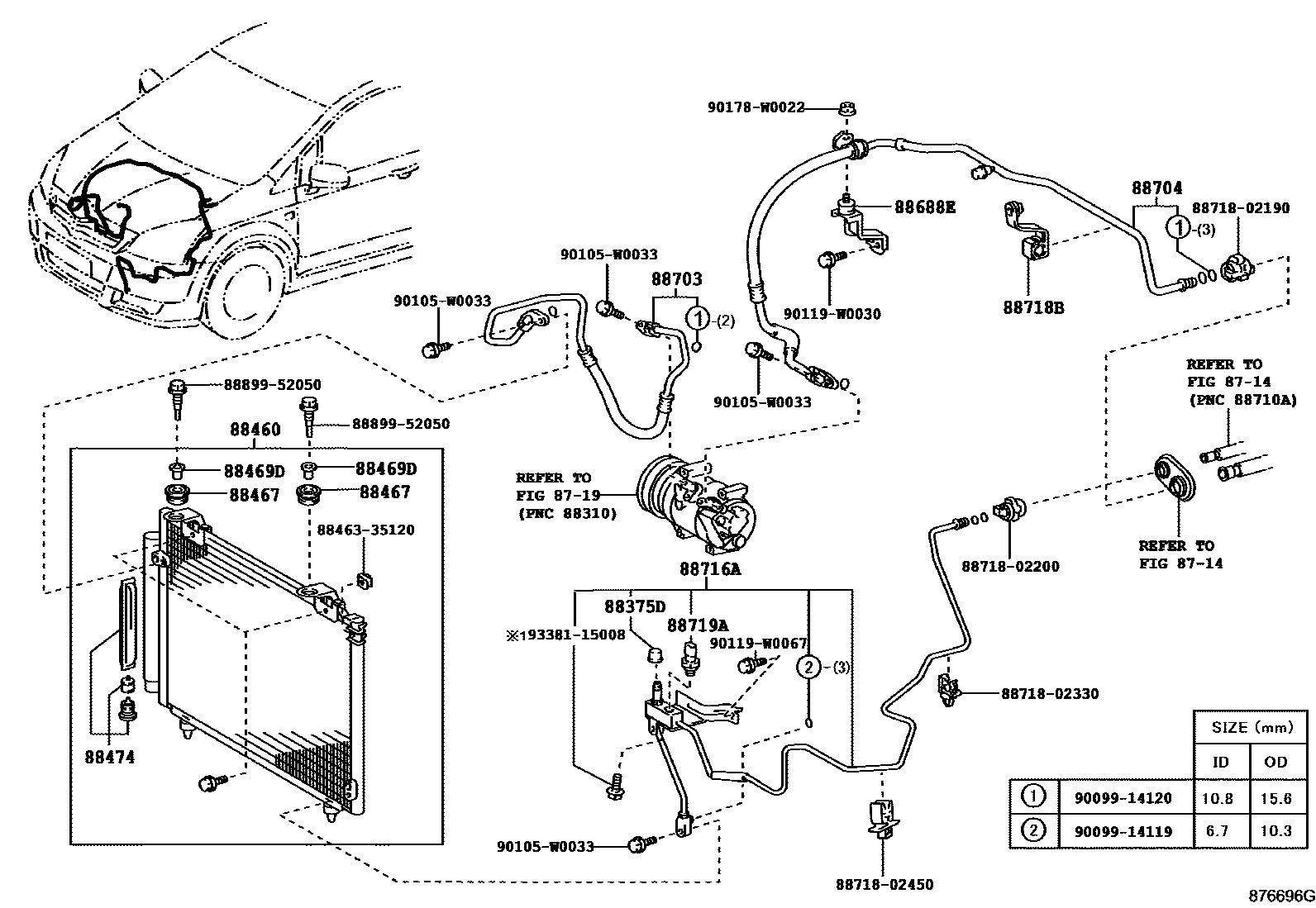

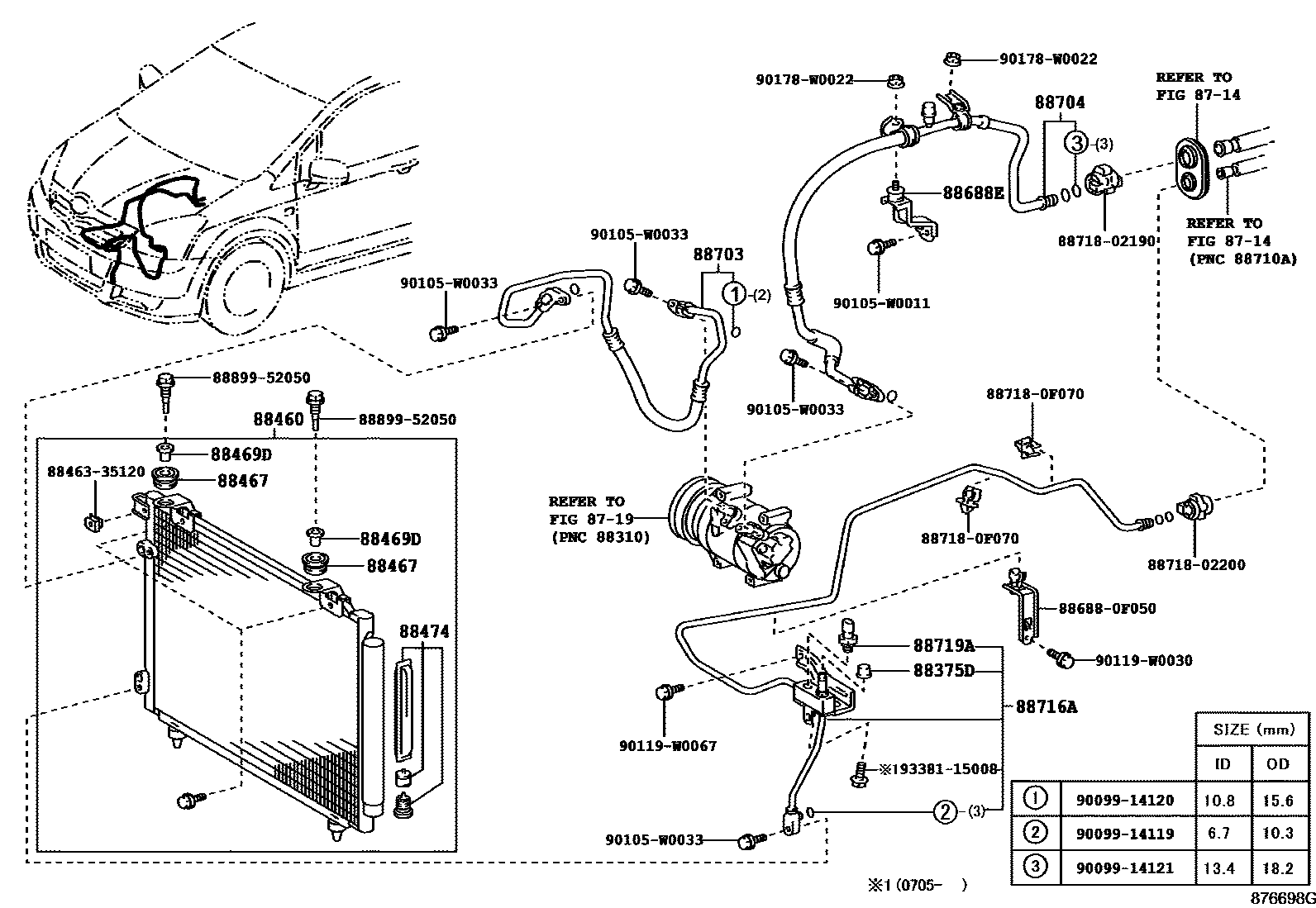

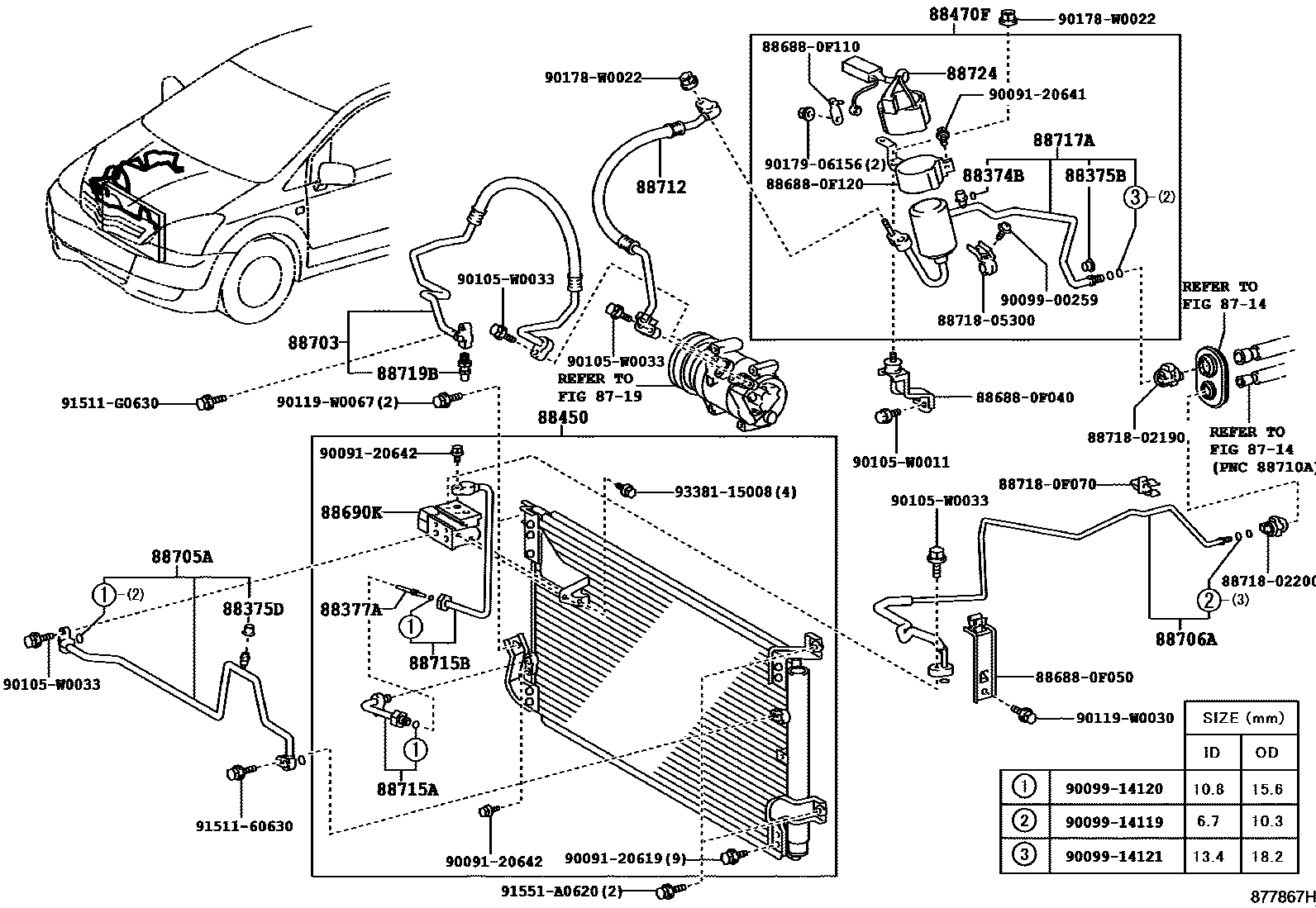

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 8 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88371B | Suction service valve | 88371-05010 |
| 88374B | Service valve No. 1 | 88374-30010 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88375D | No. 2 maintenance valve cover | 88375-30280 |
| 88377A | refrigerant filter | 88377-52010 |
| 88450 | Condenser assembly with liquid reservoir | 88450-0F130 · 88450-0F140 · 88450-0F150 |
| 88460 | Air conditioning condenser assembly | 88450-0F100 · 88450-0F110 · 88450-0F120 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-12180 |
| 88467A | No. 2 air conditioning condenser buffer pad | 88467-05010 |
| 88469D | No. 1 condenser bracket collar | 88469-52010 |
| 88470F | Accumulator and accessories assembly | 88470-0F040 · 88470-0F060 |
| 88474 | cooler dryer | 88474-17010 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-0F020 |
| 88690K | Solenoid valve assembly | 88690-05010 |
| 88703 | Discharge hose sub-assembly | 88703-0F020 · 88703-0F021 · 88703-0F030 · 88703-0F040 · 88703-0F050 · 88703-0F060 |
| 88704 | Oil suction hose sub-assembly | 88704-0F020 · 88704-0F021 · 88704-0F030 · 88704-0F031 · 88704-0F040 · 88704-0F050 · 88704-0F061 · 88704-0F062 · 88704-0F070 · 88704-0F071 |
| 88705 | Discharge pipe sub-assembly | 88705-0F020 |
| 88705A | Discharge pipe sub-assembly | 88705-0F030 · 88705-0F040 |
| 88706A | Liquid pipe A sub-assembly | 88706-0F210 · 88706-0F211 · 88706-0F220 · 88706-0F230 · 88706-0F231 · 88706-0F270 · 88706-0F280 |
| 88707B | Suction pipe B sub-assembly | 88707-0F031 |
| 88710 | Air conditioning pipe assembly | 88710-0F060 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-0F030 · 88712-0F080 · 88712-0F081 |
| 88715A | Cooler refrigerant discharge pipe A | 88715-05010 · 88715-0F020 |
| 88715B | Cooler refrigerant discharge pipe B | 88715-0F010 · 88715-0F030 |
| 88716A | Cooler refrigerant liquid pipe A | 88706-0F140 · 88706-0F150 · 88706-0F151 · 88706-0F160 · 88706-0F170 · 88706-0F250 · 88706-0F260 · 88710-0F050 |
| 88717A | Cooler refrigerant suction pipe A | 88717-0F010 · 88717-0F030 |
| 88718B | Clamp No. 2 (for cooler refrigerant pipe) | 88718-02440 |
| 88719A | Air conditioning pressure sensor | 88719-40020 |
| 88719B | No. 2 air conditioning pressure sensor | 88719-40020 |
| 88724 | Refrigerant heater | 88724-0F010 |
