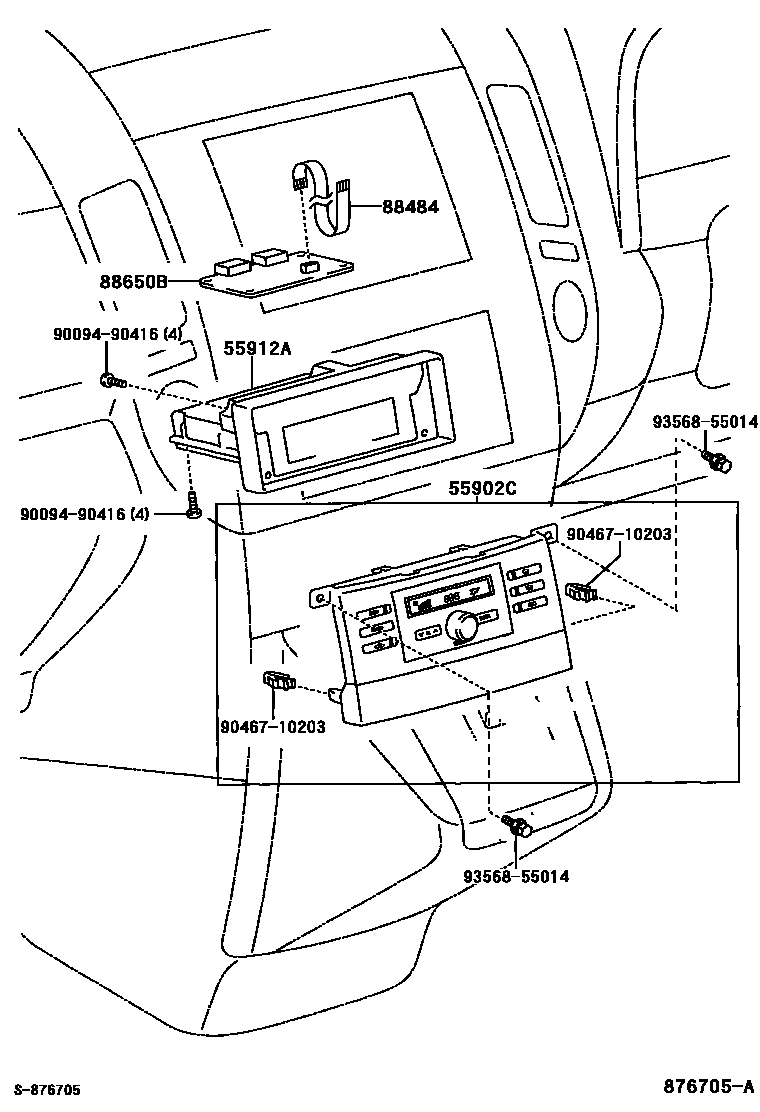

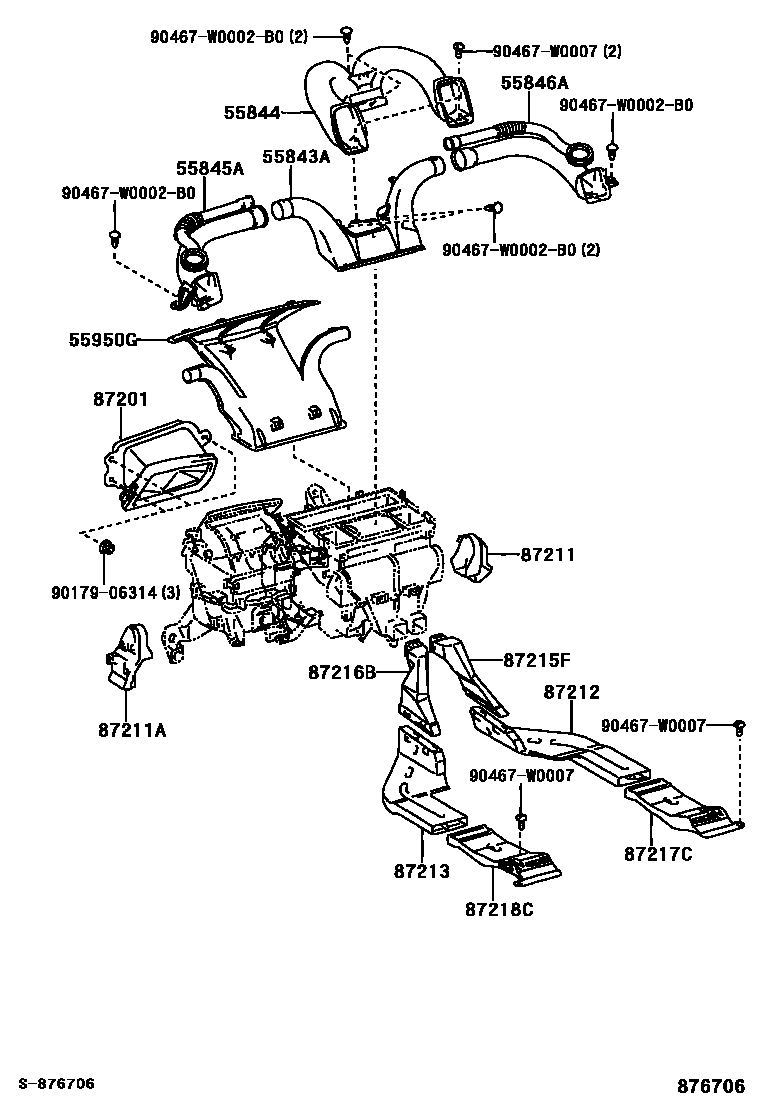

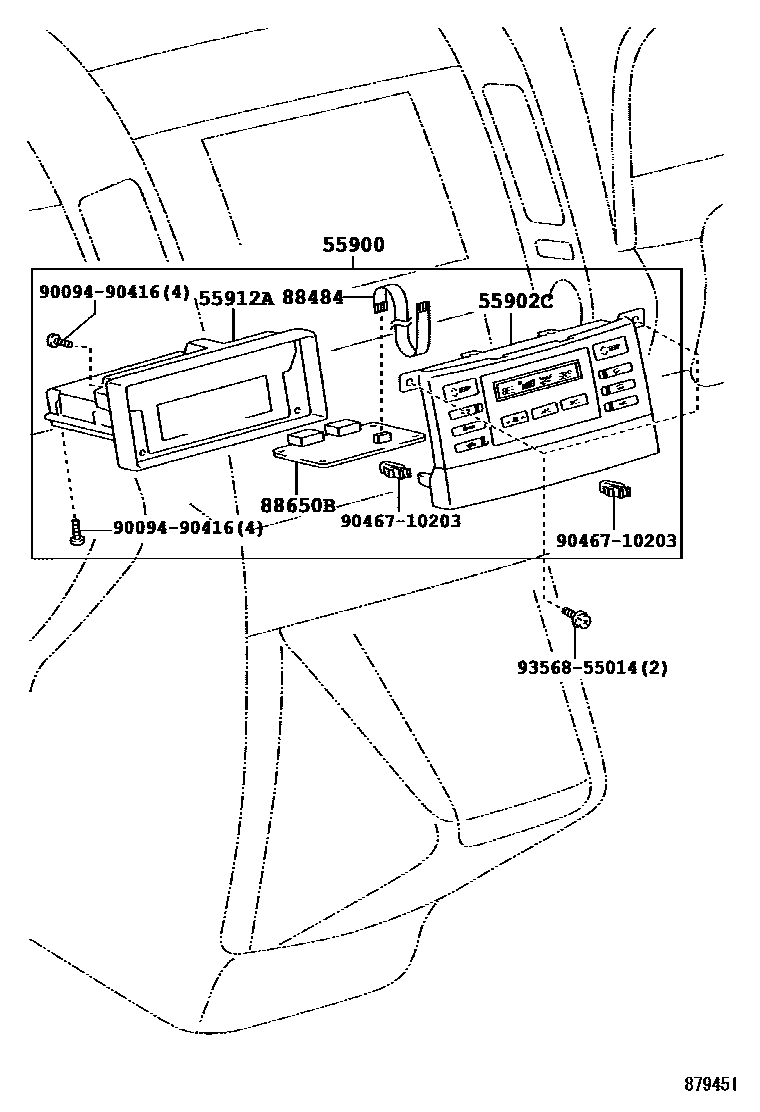

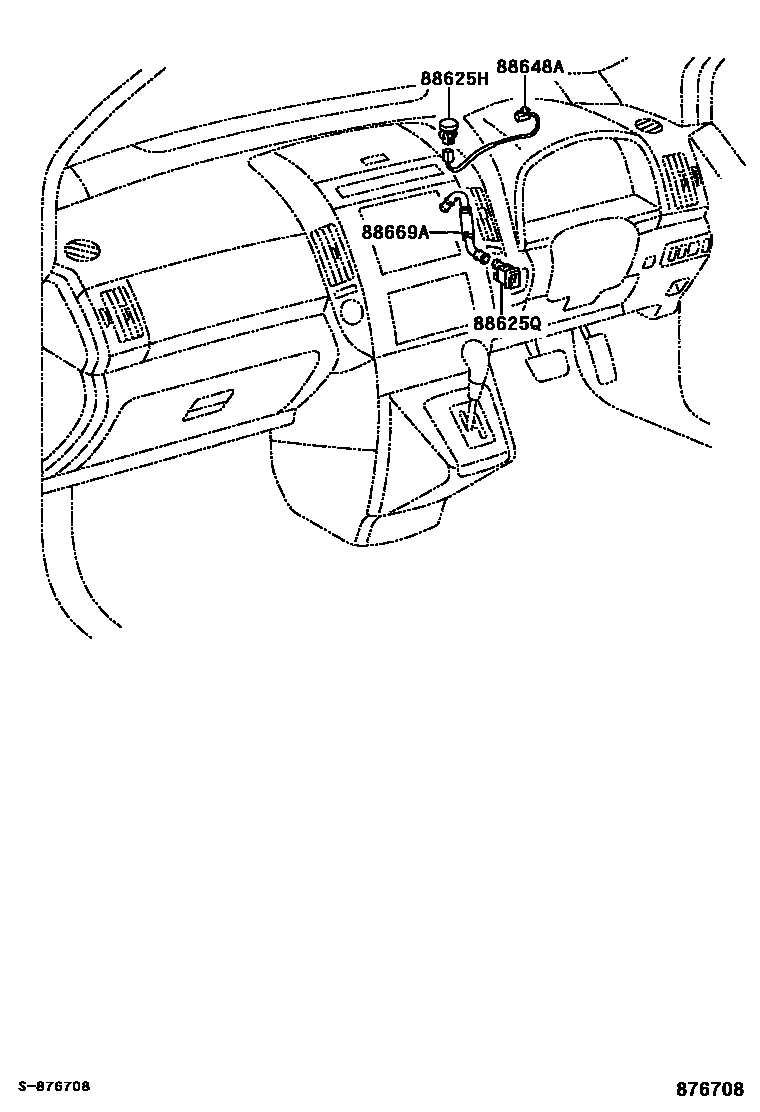

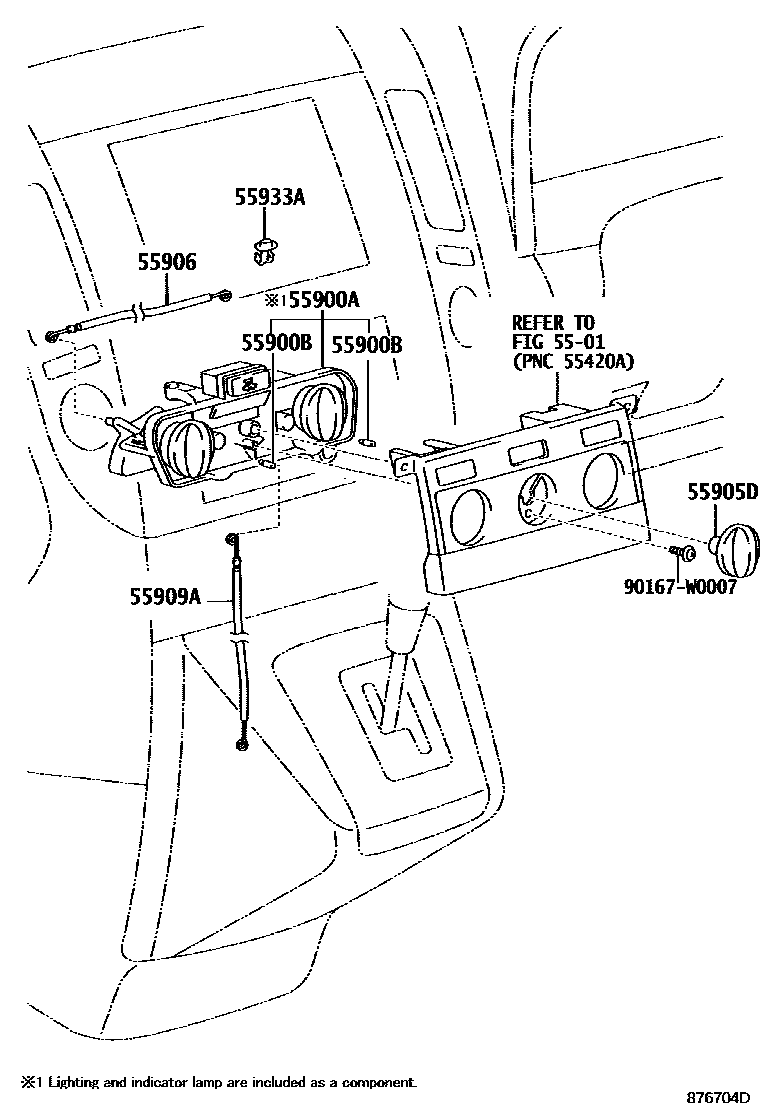

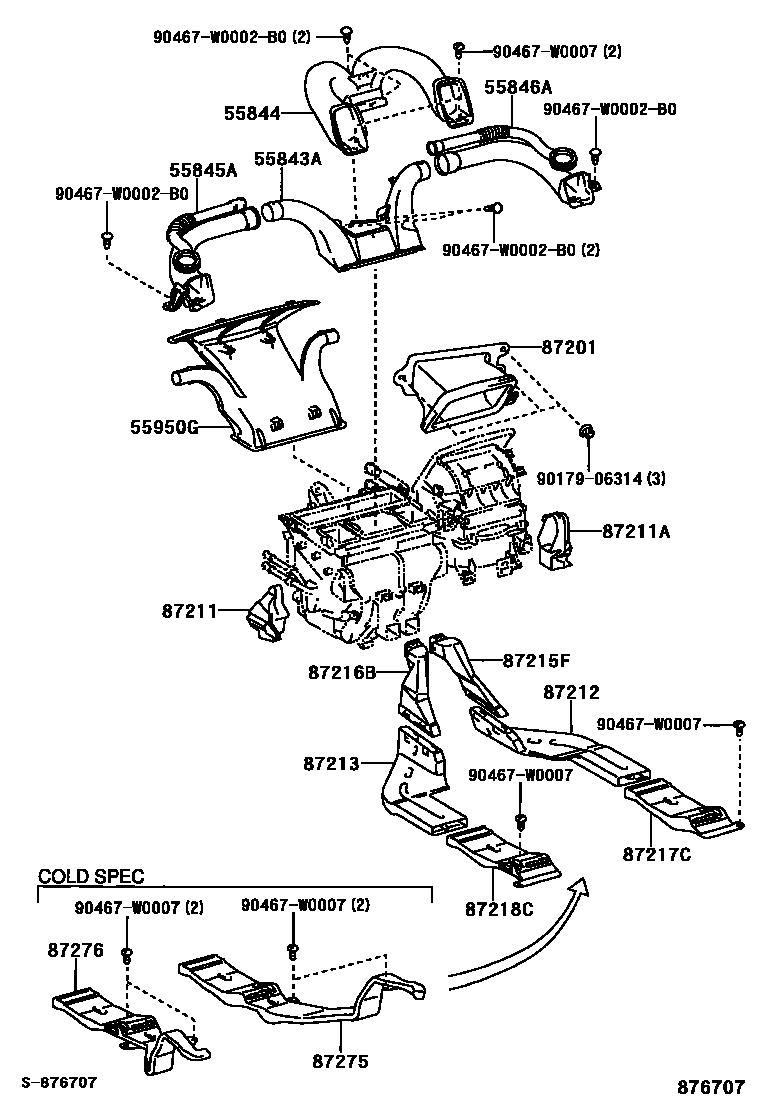

Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 6 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55843A | Air duct No. 1 from heater to air register | 55843-0F010 · 55843-0F020 · 55843-0F030 · 55843-0F040 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-0F010 · 55844-0F020 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-0F010 |
| 55846A | Air duct No. 4 from heater to air register | 55846-0F010 |
| 55900 | Air conditioning control assembly | 55900-0F040 · 55900-0F050 · 55900-0F060 · 55900-0F070 |
| 55900A | Heater control and accessory assembly | 55900-0F010 · 55900-0F011 |
| 55900B | air conditioning control light bulb | 90981-WB011 |
| 55902C | Air conditioning panel sub-assembly | 55902-0F010 · 55902-0F020 · 55902-0F030 |
| 55905D | Control button sub-assembly | 55905-0F030 |
| 55906 | Heater control cable sub-assembly | 55906-0F010 · 55906-0F020 |
| 55909A | Air mix damper control cable sub-assembly | 55909-0F010 · 55909-0F020 |
| 55912A | heater control housing | 55912-0F010 |
| 55933A | Heater control cable clip | 55933-0D010 |
| 55950G | Defroster nozzle assembly | 55950-0F010 · 55950-0F020 |
| 87201 | No. 1 air duct sub-assembly | 87201-0F010 · 87201-0F020 |
| 87211 | No. 1 air duct | 87211-05030 · 87211-0F020 |
| 87211A | Duct No. 2 | 87211-02120 · 87211-0F040 |
| 87212 | No. 1 rear air duct | 87212-0F010 |
| 87213 | No. 2 rear air duct | 87213-0F010 |
| 87215F | No. 3 rear air duct | 87215-0F010 |
| 87216B | No. 4 rear air duct | 87216-0F010 |
| 87217C | No. 5 rear air duct | 87217-0F010 |
| 87218C | No. 6 rear air duct | 87218-0F010 |
| 87275 | Right floor heater air duct No. 1 | 87275-0F010 |
| 87276 | Left floor heater air duct No. 1 | 87276-0F010 |
| 88484 | No. 1 cooler wiring harness | 88484-05030 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-47031 |
| 88625Q | Cooler thermistor (interior temperature sensor) | 88625-47021 |
| 88648A | Cooler wiring harness | 88648-0F150 |
| 88650B | Air conditioning amplifier assembly | 88650-0F010 · 88650-0F020 · 88650-0F050 · 88650-0F060 |
| 88669A | Hoses (for cooler thermistor) | 87230-0F010 · 87233-0F020 |
