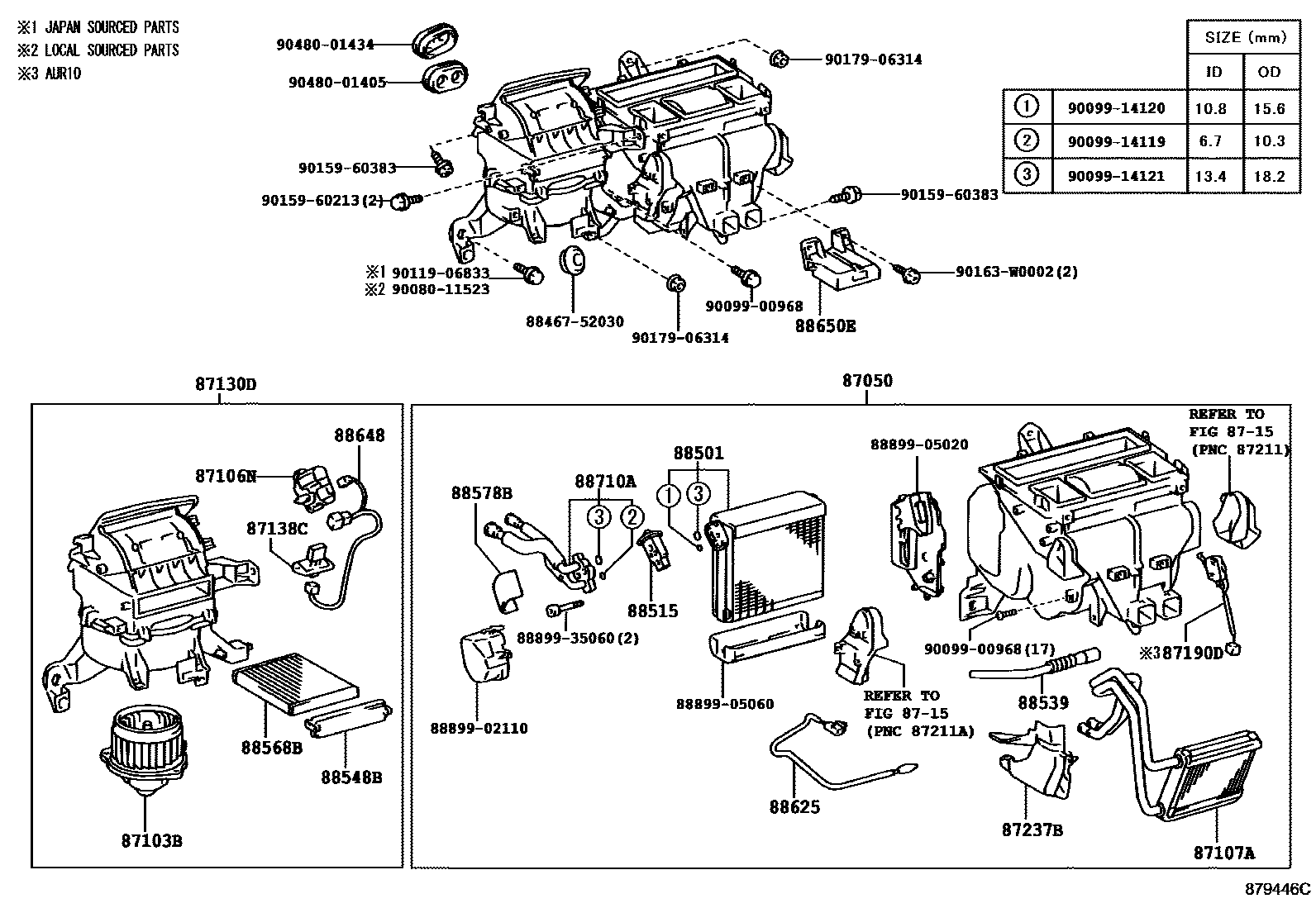

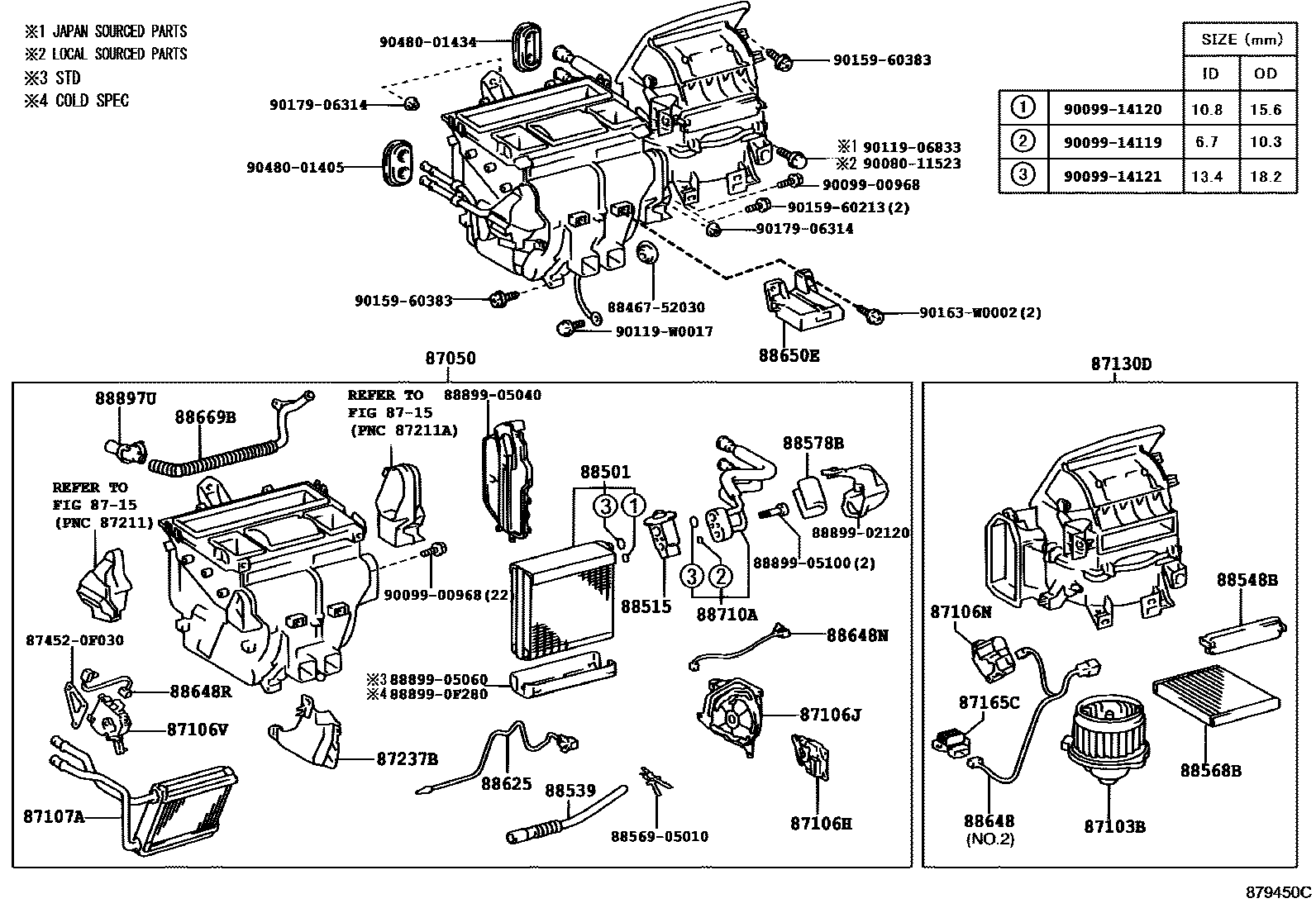

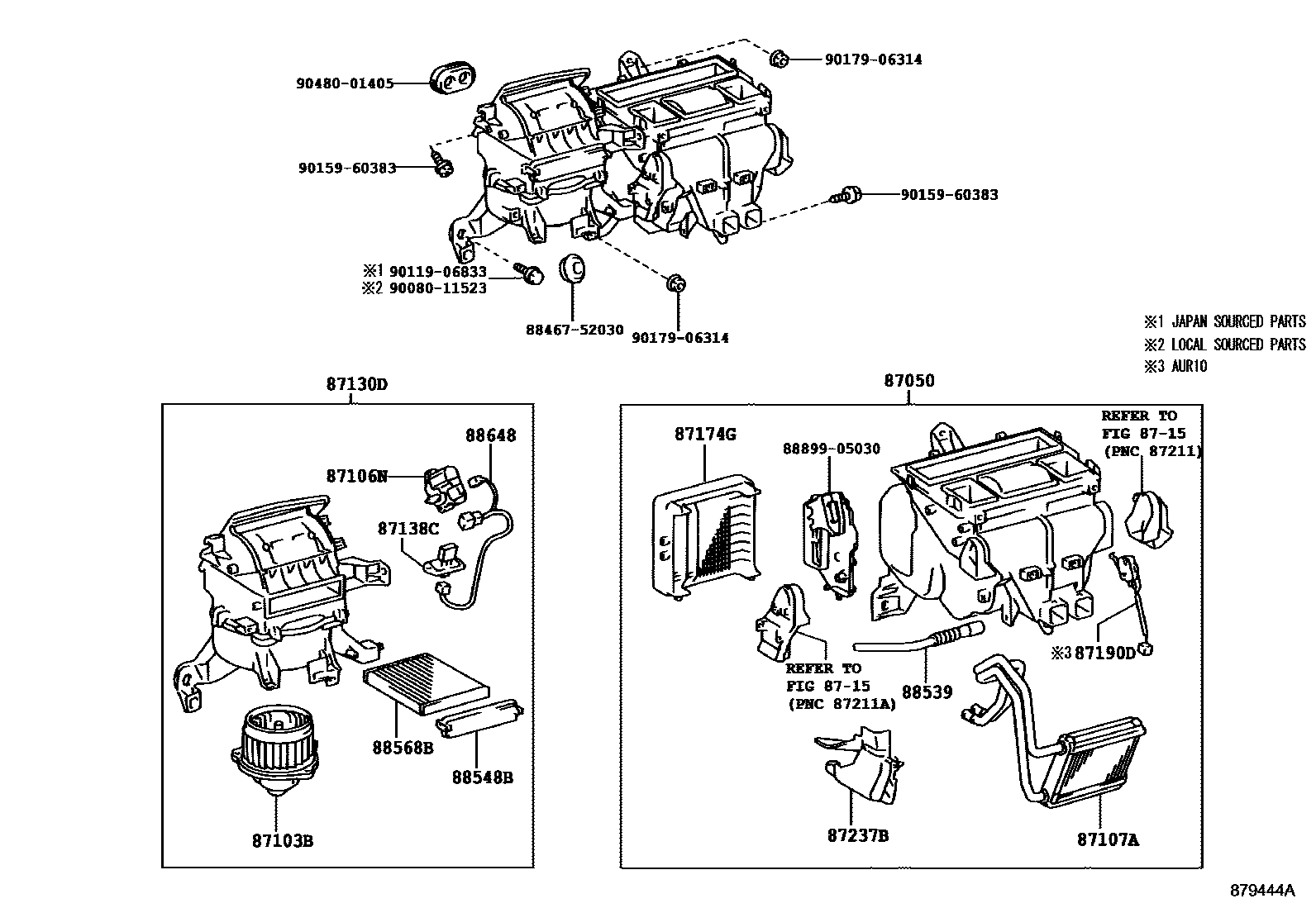

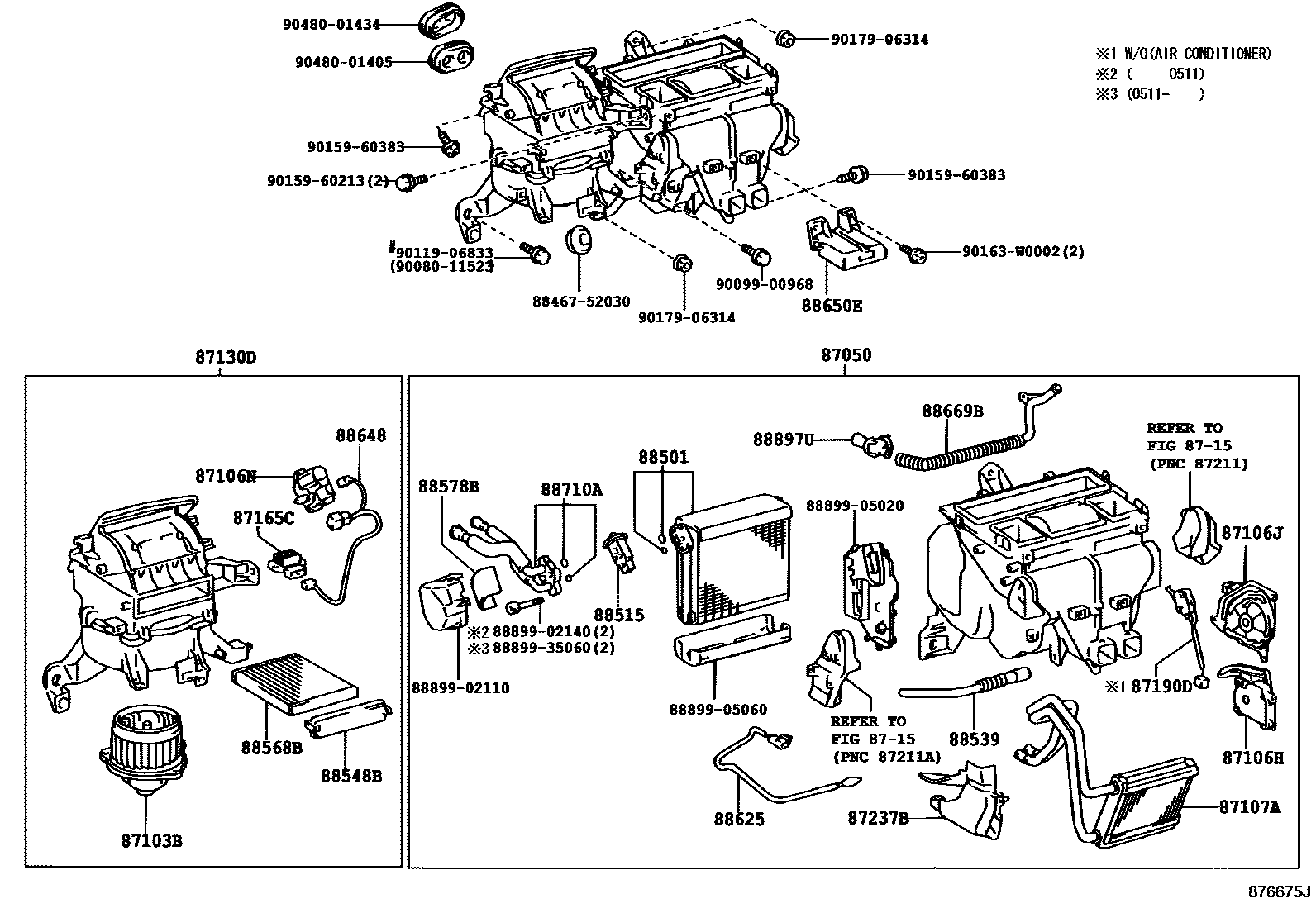

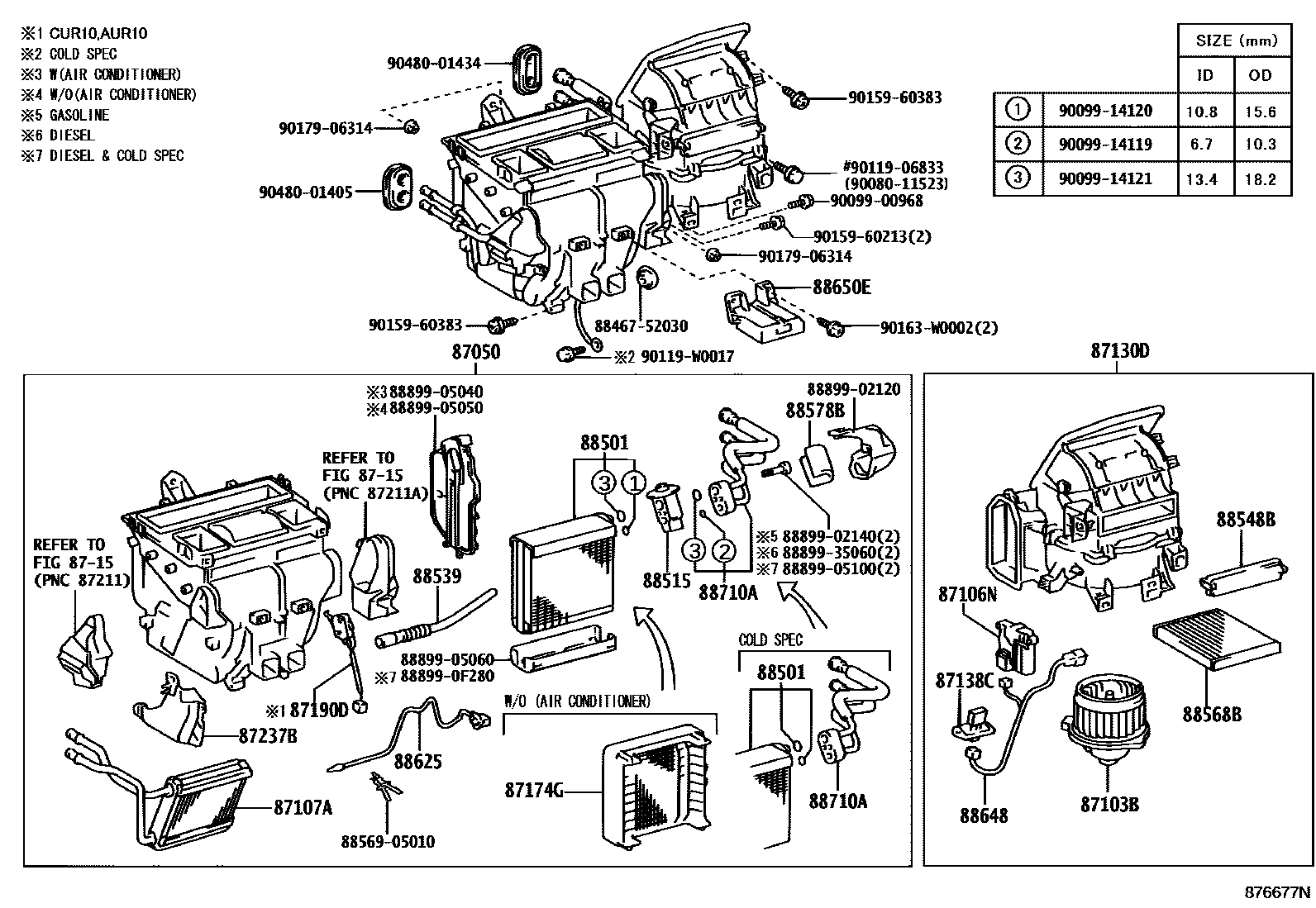

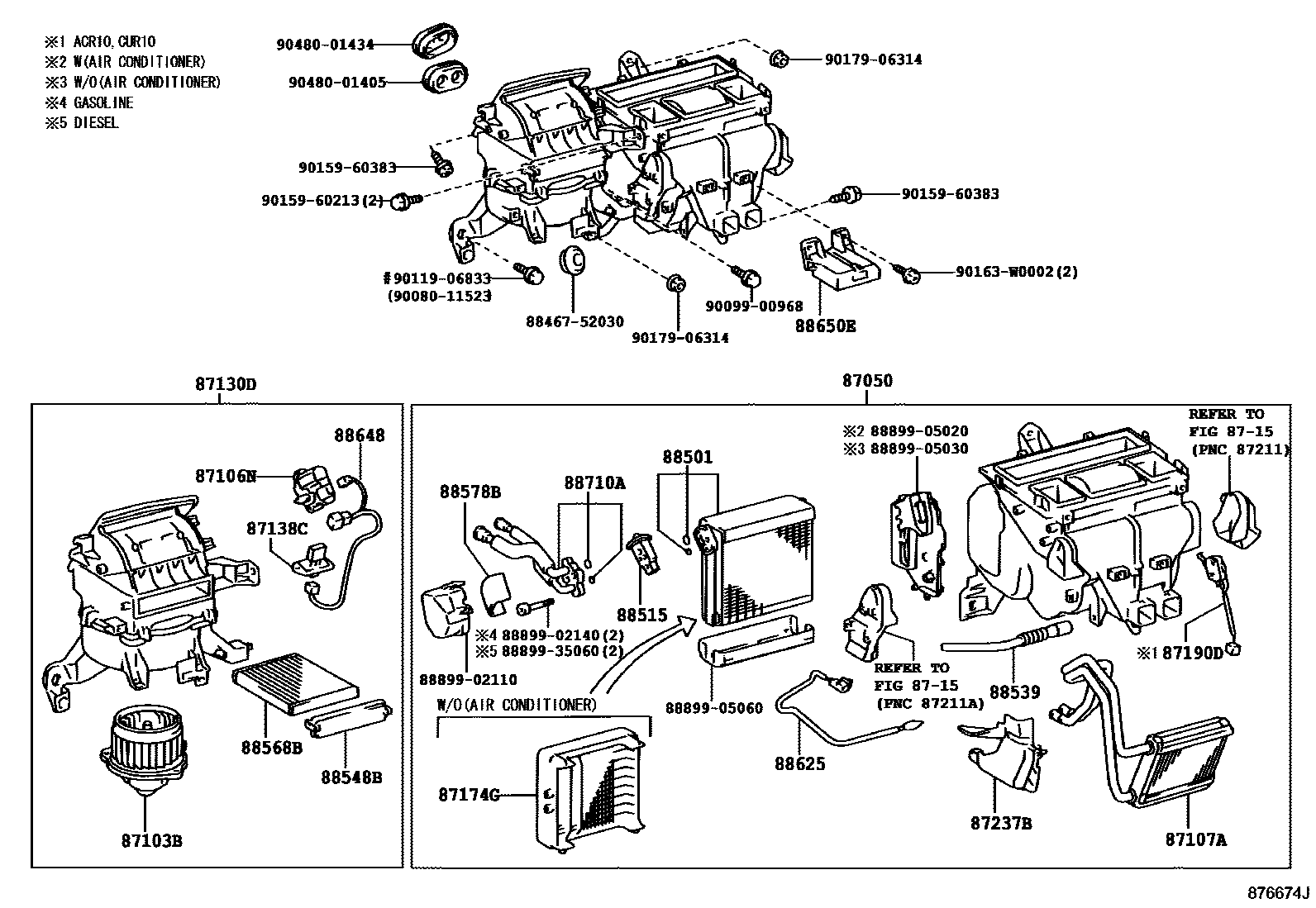

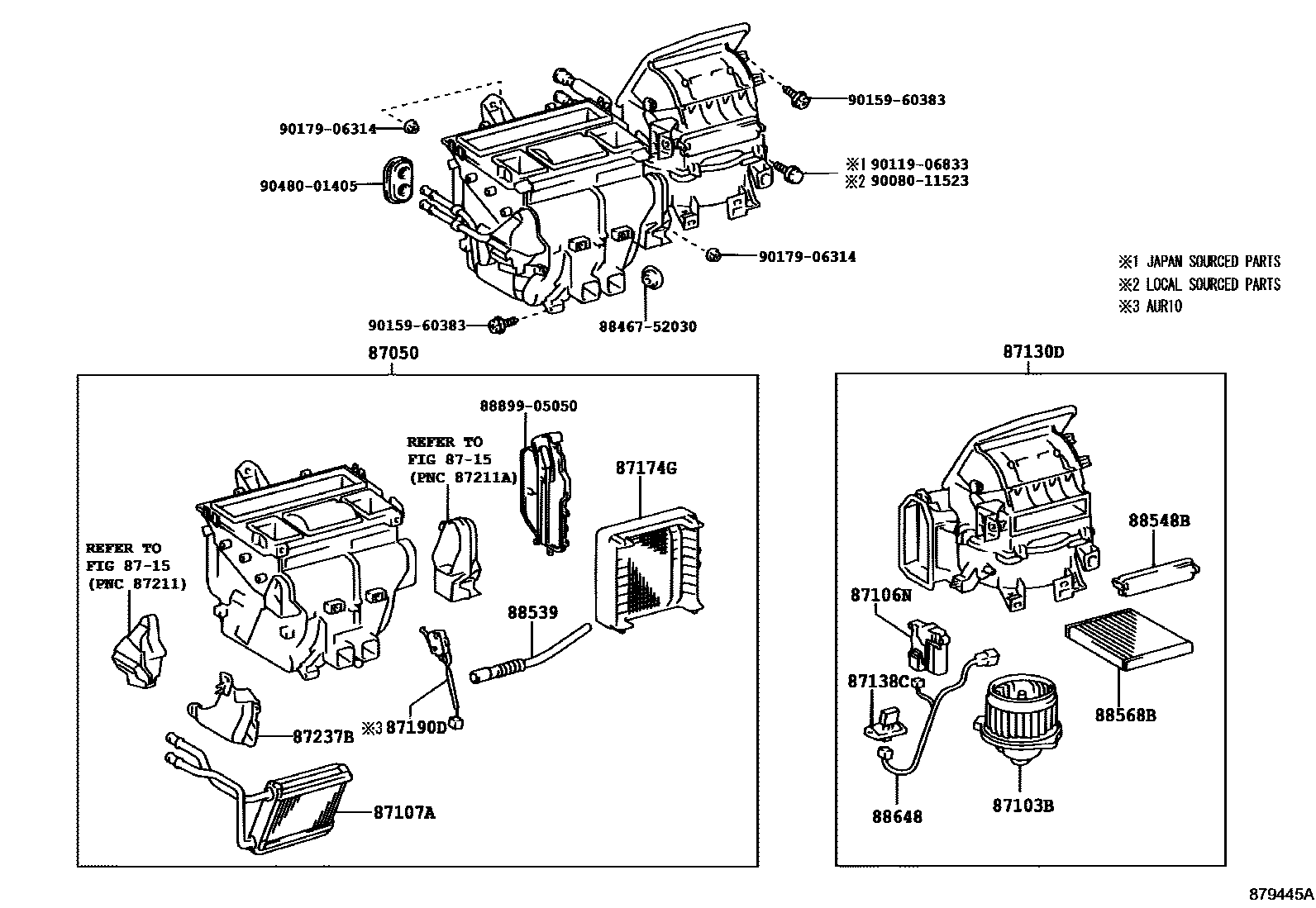

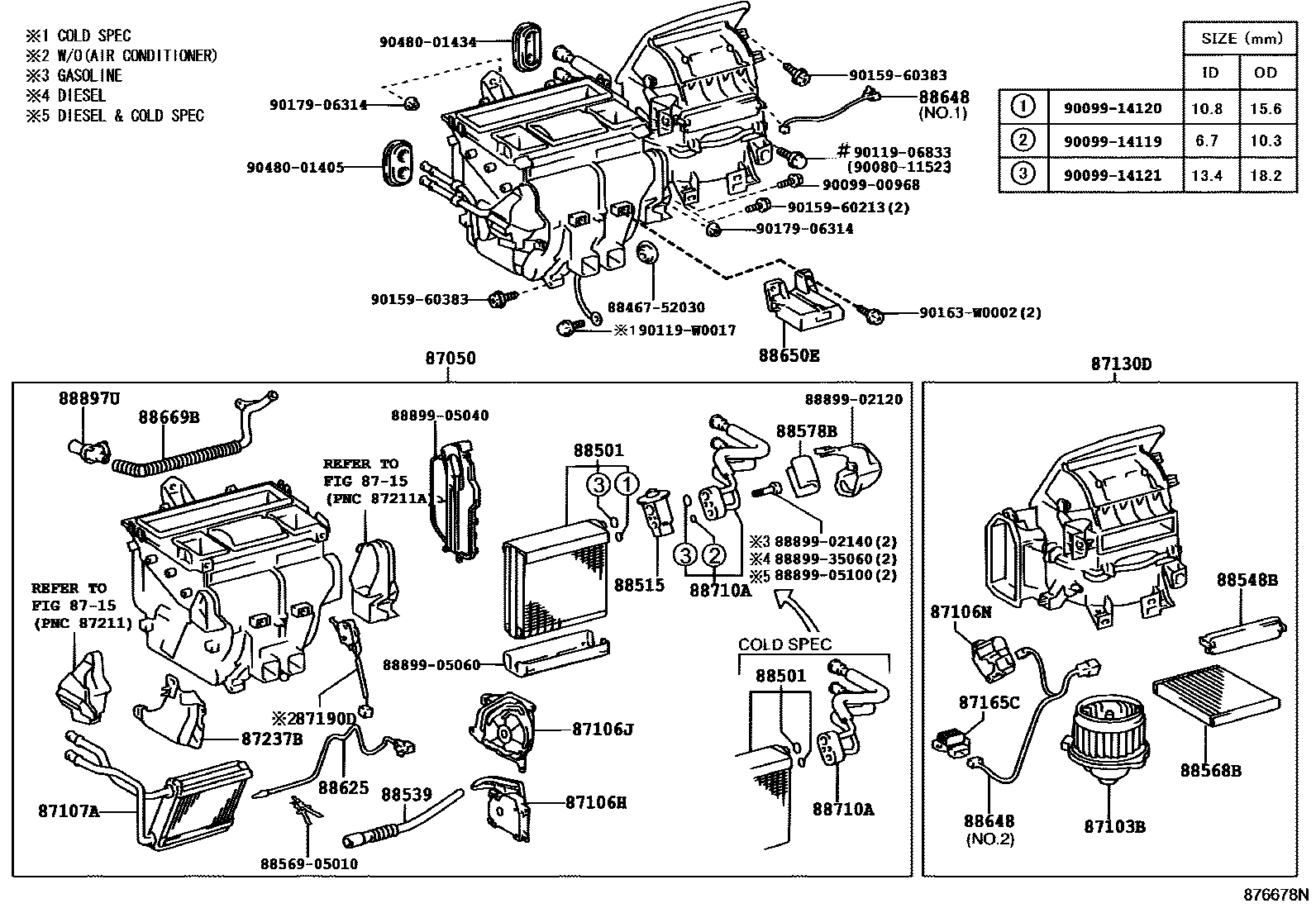

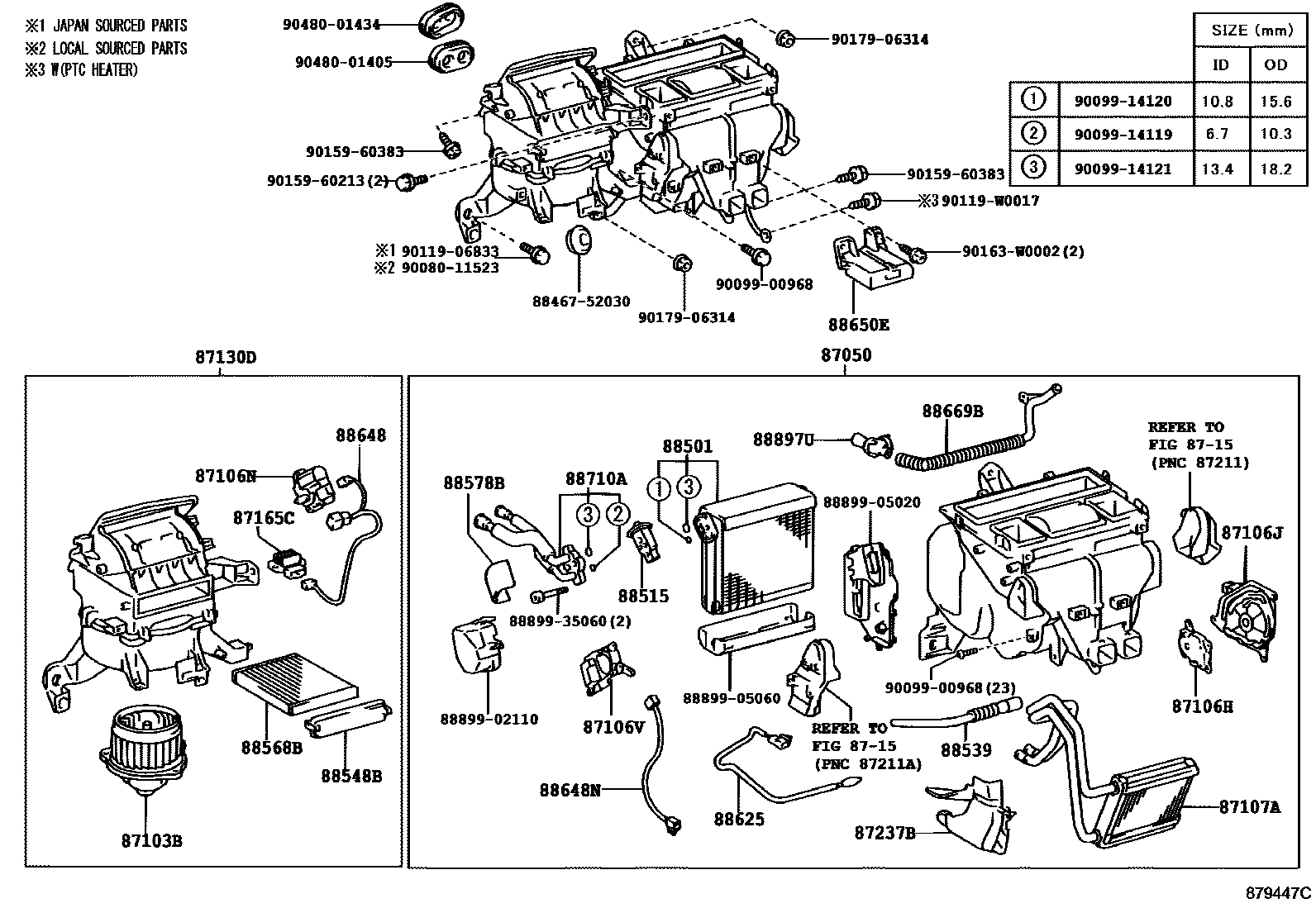

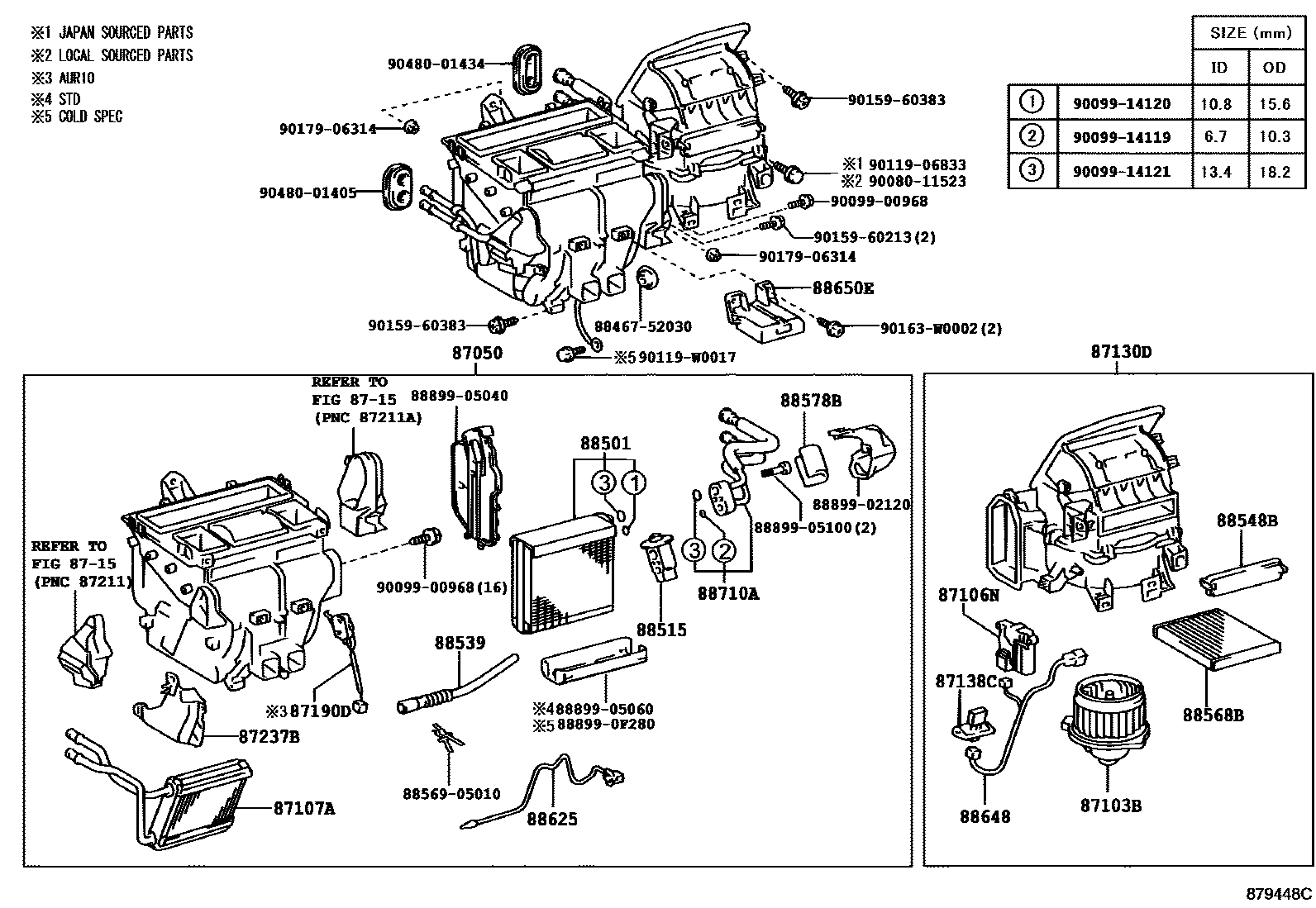

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 10 images and 27 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87050 | Air conditioning radiator assembly | 87050-0F010 · 87050-0F020 · 87050-0F030 · 87050-0F040 · 87050-0F050 · 87050-0F060 · 87050-0F070 · 87050-0F080 · 87050-0F090 · 87050-0F100 · 87050-0F110 · 87050-0F120 · 87050-0F130 · 87050-0F140 · 87050-0F150 · 87050-0F160 · 87050-0F170 · 87050-0F180 · 87050-0F190 · 87050-0F200 · 87050-0F210 · 87050-0F220 · 87050-0F230 · 87050-0F240 · 87050-0F260 · 87050-0F280 |
| 87103B | Blower motor sub-assembly with fan | 87103-02070 · 87103-02080 |
| 87106H | Damper servo mechanism sub-assembly (for air mixing) | 87106-02030 · 87106-05030 |
| 87106J | Damper servo mechanism sub-assembly (for mode) | 87106-02040 |
| 87106N | Damper servo mechanism sub-assembly (for recirculation) | 87106-02070 · 87106-02100 |
| 87106V | Damper servo mechanism sub-assembly (for No. 2 air mixing) | 87106-05010 · 87106-05020 |
| 87107A | Heater radiator device sub-assembly | 87107-02120 · 87107-05090 · 87107-0F020 · 87107-0F030 · 87107-0F040 |
| 87130D | Blower assembly | 87130-0F010 · 87130-0F011 · 87130-0F020 · 87130-0F021 · 87130-0F022 · 87130-0F030 · 87130-0F031 · 87130-0F040 · 87130-0F041 · 87130-0F042 · 87130-0F050 · 87130-0F051 · 87130-0F060 · 87130-0F061 |
| 87138C | Blower resistor | 87138-02040 |
| 87165C | Blower motor control device | 87165-13010 |
| 87174G | Air heater deflector | 87174-05010 · 87174-0F010 |
| 87190D | Temperature control switch assembly | 87190-0F010 · 87190-0F020 |
| 87237B | Heater connection cover | 87237-05050 · 87237-0F020 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-05070 · 88501-05080 · 88501-0F021 · 88501-0F031 · 88501-0F040 · 88501-0F041 |
| 88515 | Cooler expansion valve | 88515-21040 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-02070 |
| 88548B | air filter housing | 88548-02040 |
| 88568B | Air Cleaner | 88568-02030 |
| 88578B | Cooling unit seal No. 1 | 88578-12520 |
| 88625 | Cooler No. 1 Thermistor | 88620-05020 · 88620-0F020 · 88625-02060 · 88625-52070 |
| 88648 | No. 1 cooler wiring harness | 88648-0F110 · 88648-0F120 · 88648-0F130 · 88648-0F140 · 88648-0F160 |
| 88648N | No. 2 cooler wiring harness | 88648-05020 · 88648-0F130 |
| 88648R | No. 3 cooler wiring harness | 88648-0F170 |
| 88650E | No. 1 air conditioning amplifier assembly | 88650-0F030 · 88650-0F040 · 88650-0F070 · 88650-0F080 |
| 88669B | Cooler air hose | 87233-0F010 · 87233-0F030 |
| 88710A | Air conditioning pipe assembly | 88710-05350 · 88710-05360 · 88710-05380 |
| 88897U | aspirator tube | 88897-02180 |
