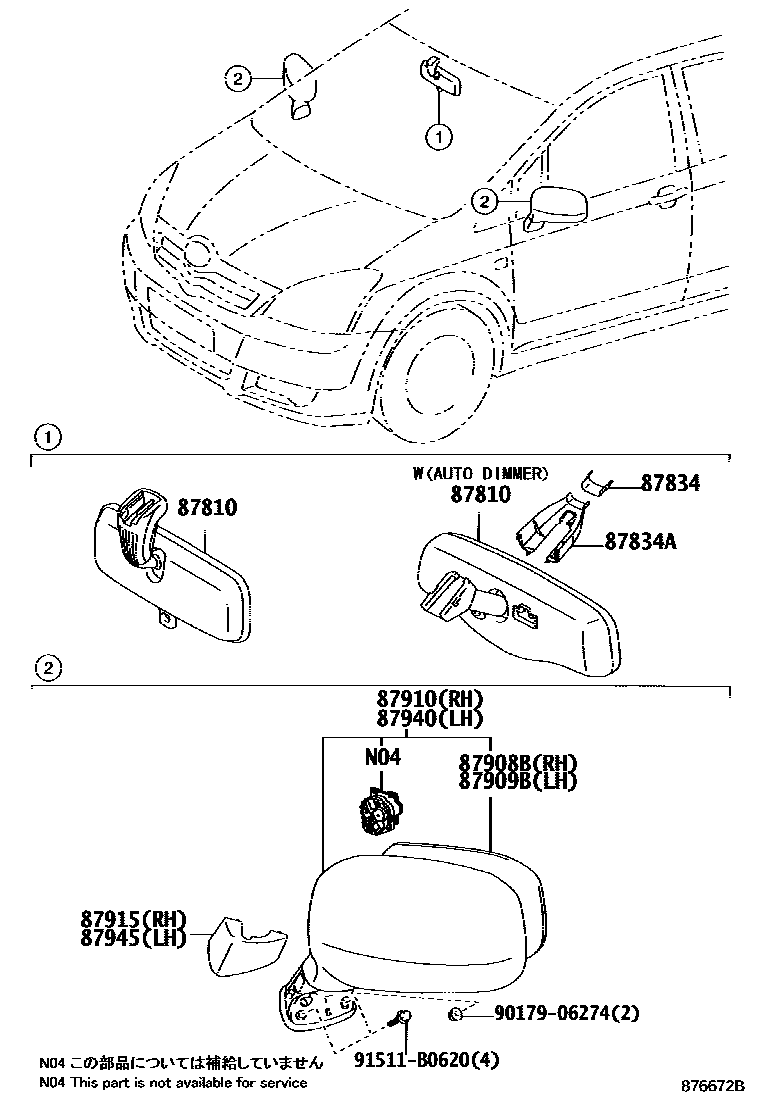

Toyota COROLLA 后视镜 — Figure 8701
Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87810 | Interior rearview mirror assembly | 87810-05040 · 87810-05041 · 87810-05042 · 87810-0D010 · 87810-0D011 |
| 87834 | Interior rearview mirror stay fixing cover | 87818-0F010 |
| 87834A | No. 2 interior rearview mirror stay fixing cover | 87834-05020 |
| 87908B | Right rearview mirror sub-assembly | 87908-0F010 · 87908-0F020 · 87908-0F030 · 87908-0F040 |
| 87909B | Left rearview mirror sub-assembly | 87909-0F010 · 87909-0F020 · 87909-0F030 · 87909-0F040 |
