Toyota COROLLA 倒车影像和摄像头 — Figure 8606

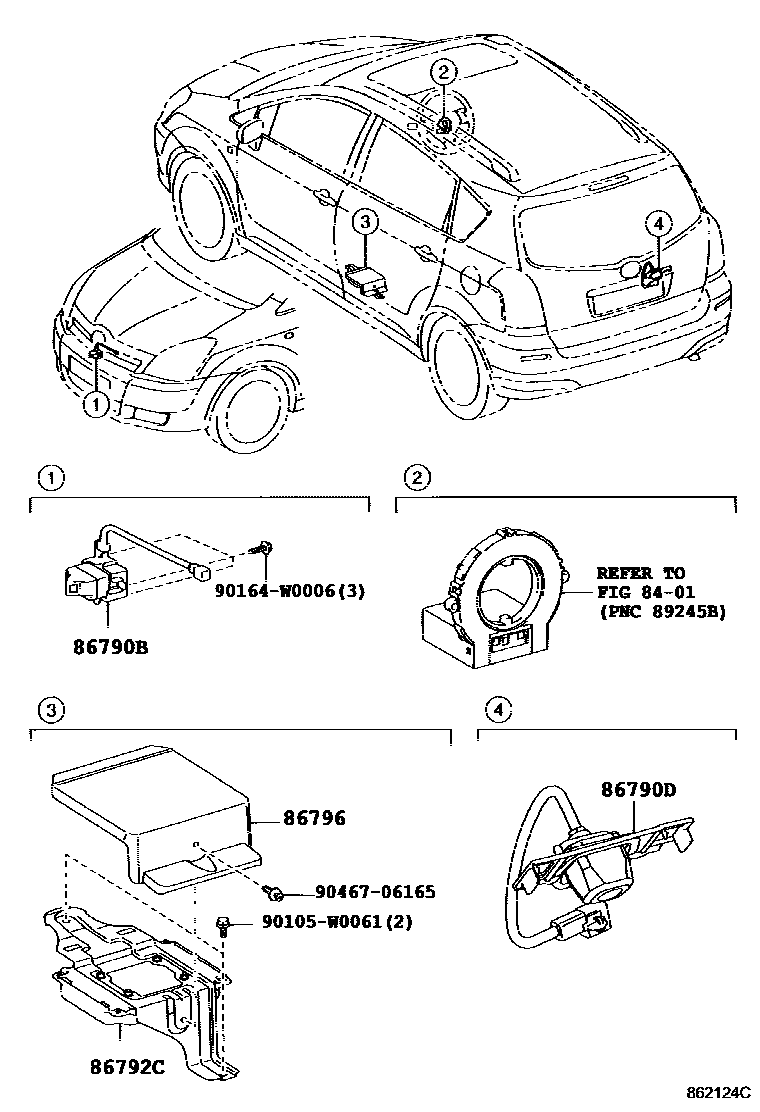

Toyota COROLLA EPC diagram 8606, 倒车影像和摄像头, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86790B | Front image camera assembly | 86790-64020 · 86790-64040 |
| 86790D | Rear reversing image camera assembly | 86790-64010 · 86790-64030 |
| 86792C | Parking assist ECU | 86792-64010 · 86792-64011 · 86792-64020 · 86792-64030 |
| 86796 | Parking assist ECU cover | 86796-21010 |
