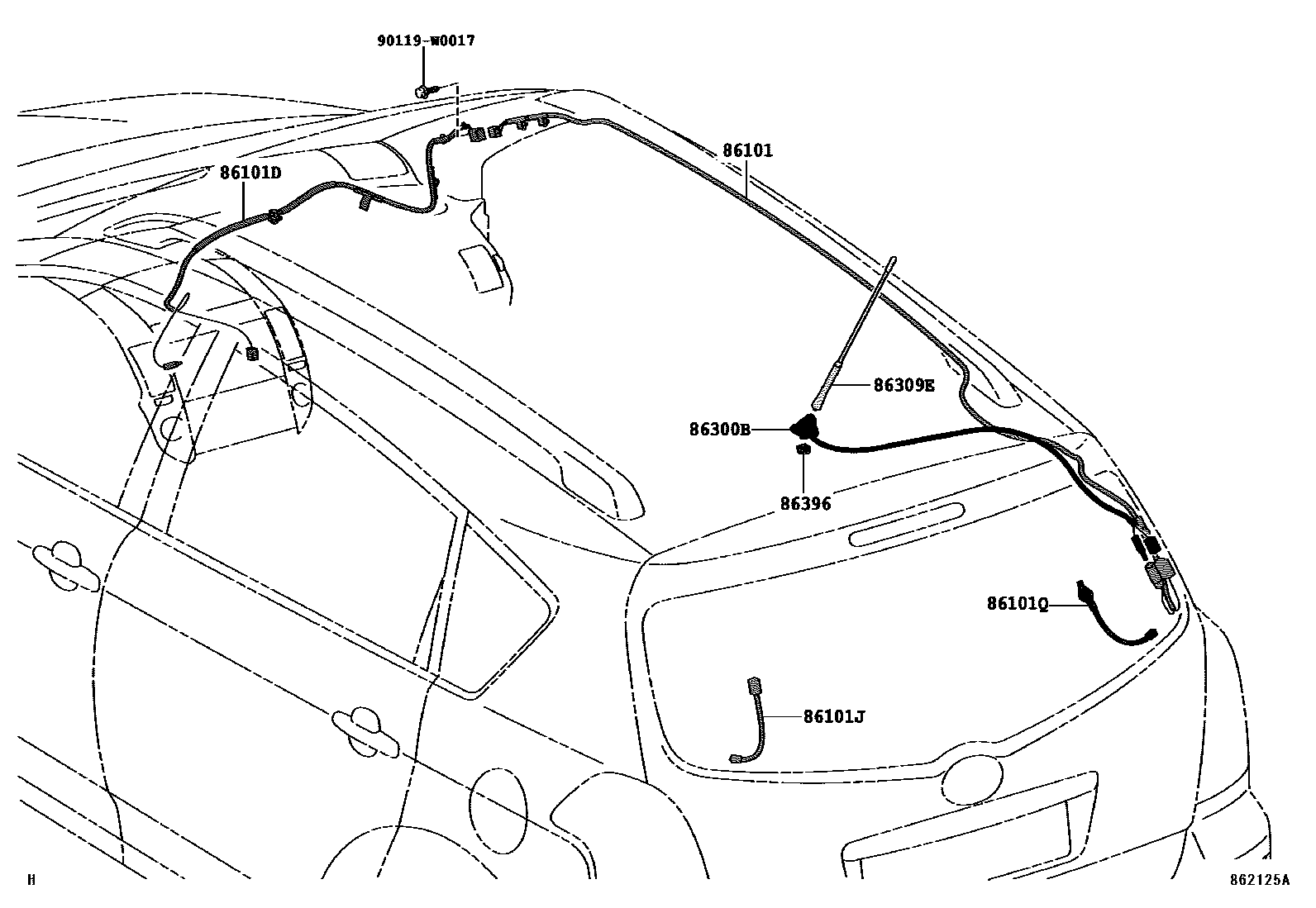

Toyota COROLLA antenna — Figure 8604
Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-0F030 |
| 86101D | No. 3 antenna wire sub-assembly | 86101-0F040 · 86101-0F050 |
| 86101J | No. 2 antenna wire sub-assembly | 86101-0F020 |
| 86101Q | No. 4 antenna wire sub-assembly | 86101-0F010 |
| 86300B | Amplifier antenna assembly | 86300-0F010 · 86300-0F011 |
| 86309E | Roof antenna sub-assembly | 86309-02040 |
| 86396 | Antenna nut | 86396-02020 |
