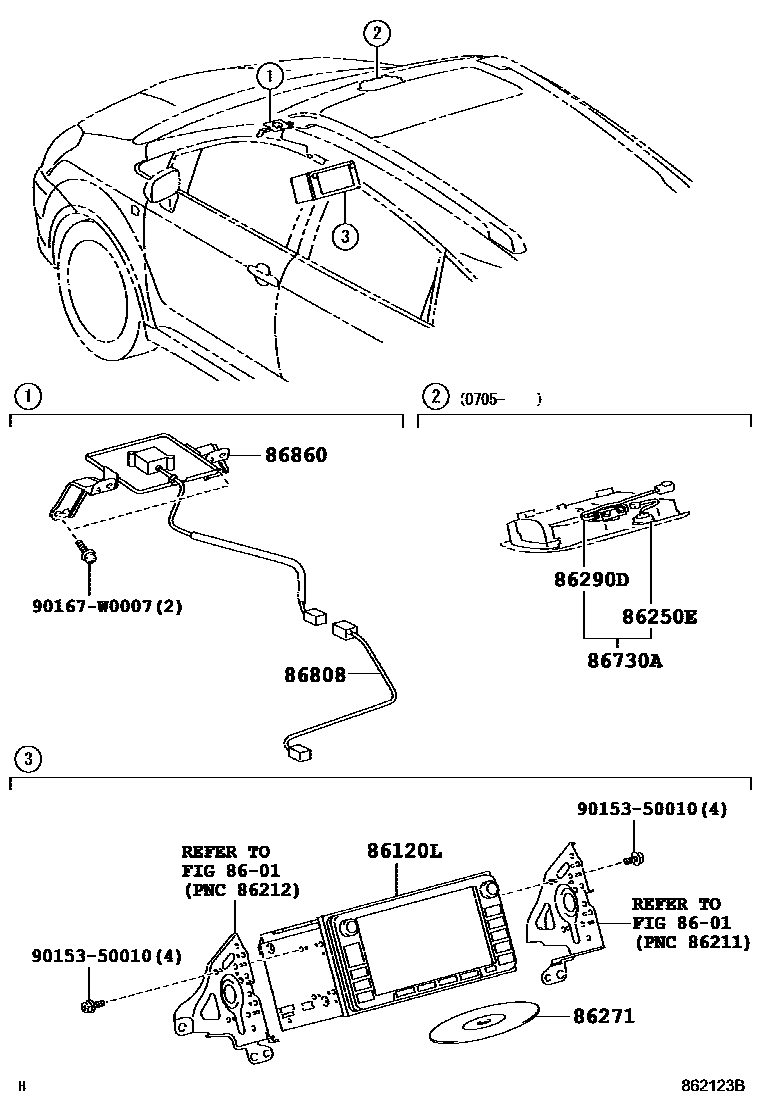

Toyota COROLLA 导航和前监视器显示屏 — Figure 8603
Toyota COROLLA EPC diagram 8603, 导航和前监视器显示屏, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86120L | Navigation receiver assembly | 86120-64010 · 86120-64020 |
| 86250E | amplifier loudspeaker assembly | 86250-64010 |
| 86271 | CD | 86271-53030 · 86271-53031 · 86271-64011 · 86271-64012 |
| 86290D | Speaker amplifier assembly | 86290-64010 |
| 86730A | Telephone amplifier assembly | 86730-64010 |
| 86808 | No. 1 navigation antenna wire sub-assembly | 86808-0F010 |
| 86860 | Navigation antenna assembly | 86860-64010 |
