Toyota COROLLA 前大灯清洗器 — Figure 8505

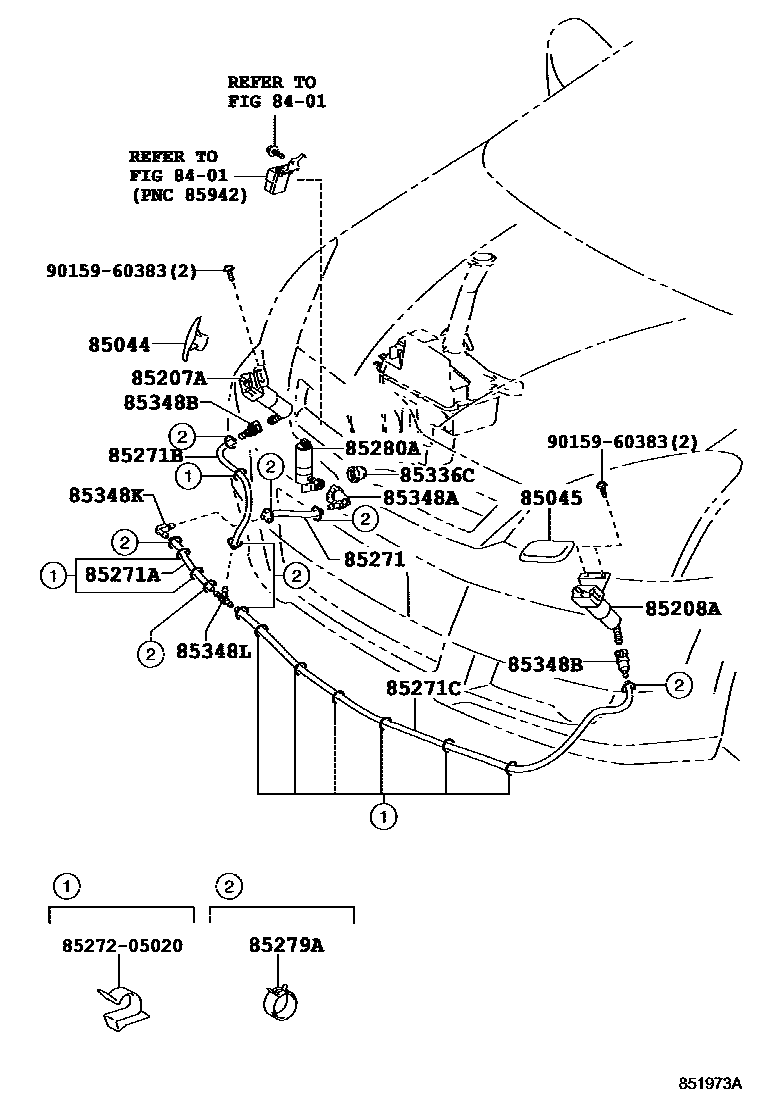

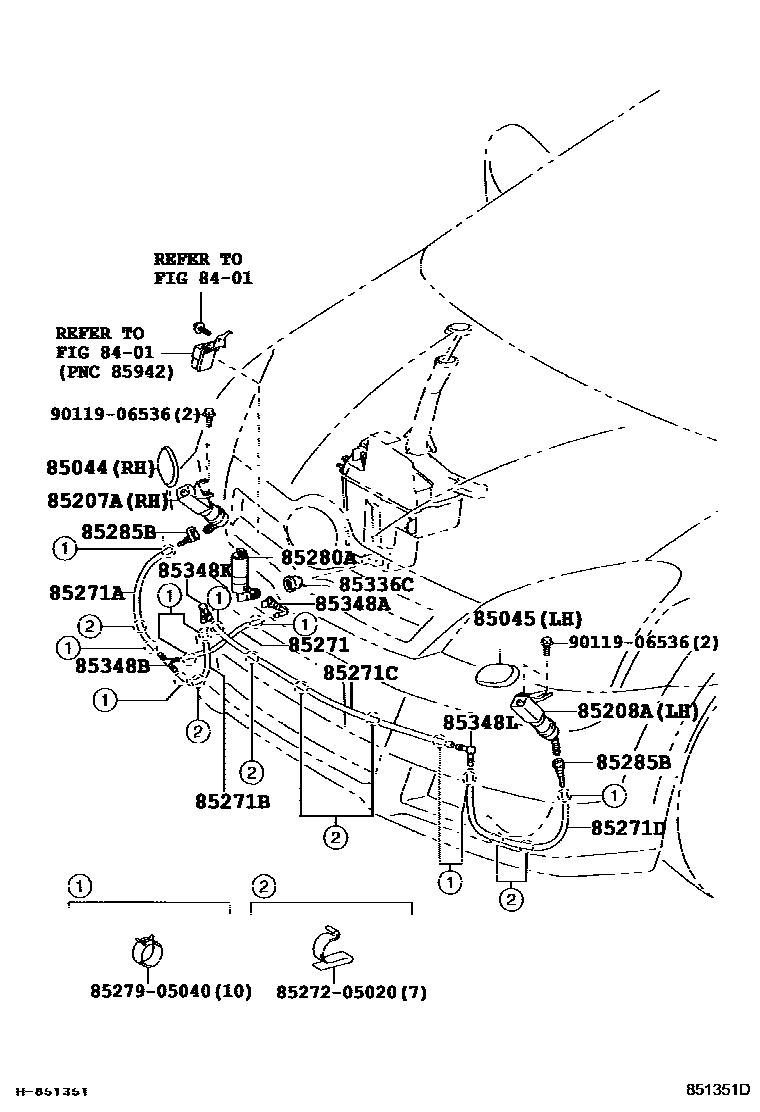

Toyota COROLLA EPC diagram 8505, 前大灯清洗器, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85044 | Right type 1 headlight washer nozzle sub-assembly | 85044-0F901 |
| 85045 | Left type 1 headlight washer nozzle sub-assembly | 85045-0F901 |
| 85207A | Right headlight washer actuator sub-assembly | 85207-0F010 · 85207-0F020 |
| 85208A | Left headlight washer actuator sub-assembly | 85208-0F010 · 85208-0F020 |
| 85271 | No. 1 headlight washer hose | 85277-05050 |
| 85271A | No. 2 headlight washer hose | 85276-02050 |
| 85271B | No. 3 headlight washer hose | 85277-05040 · 85277-05050 |
| 85271C | No. 4 headlight washer hose | 85276-05050 |
| 85271D | No. 5 headlight washer hose | 85276-02050 |
| 85279A | Headlight washer hose connector | 85279-05040 |
| 85280A | Headlight washer motor and pump assembly | 85280-02020 · 85280-02021 |
| 85285B | No. 1 headlight washer nozzle connector | 85285-05040 |
| 85336C | Headlight washer motor seal | 90069-20005 |
| 85348A | Headlight washer hose connector No. 1 | 90069-44001 |
| 85348B | No. 2 headlight washer hose connector | 85287-02070 · 85288-02030 |
| 85348K | No. 1 headlight washer elbow joint | 85278-02050 |
| 85348L | No. 2 headlight washer elbow joint | 85278-02050 · 85288-05080 |
