Toyota COROLLA 后清洗器 — Figure 8504

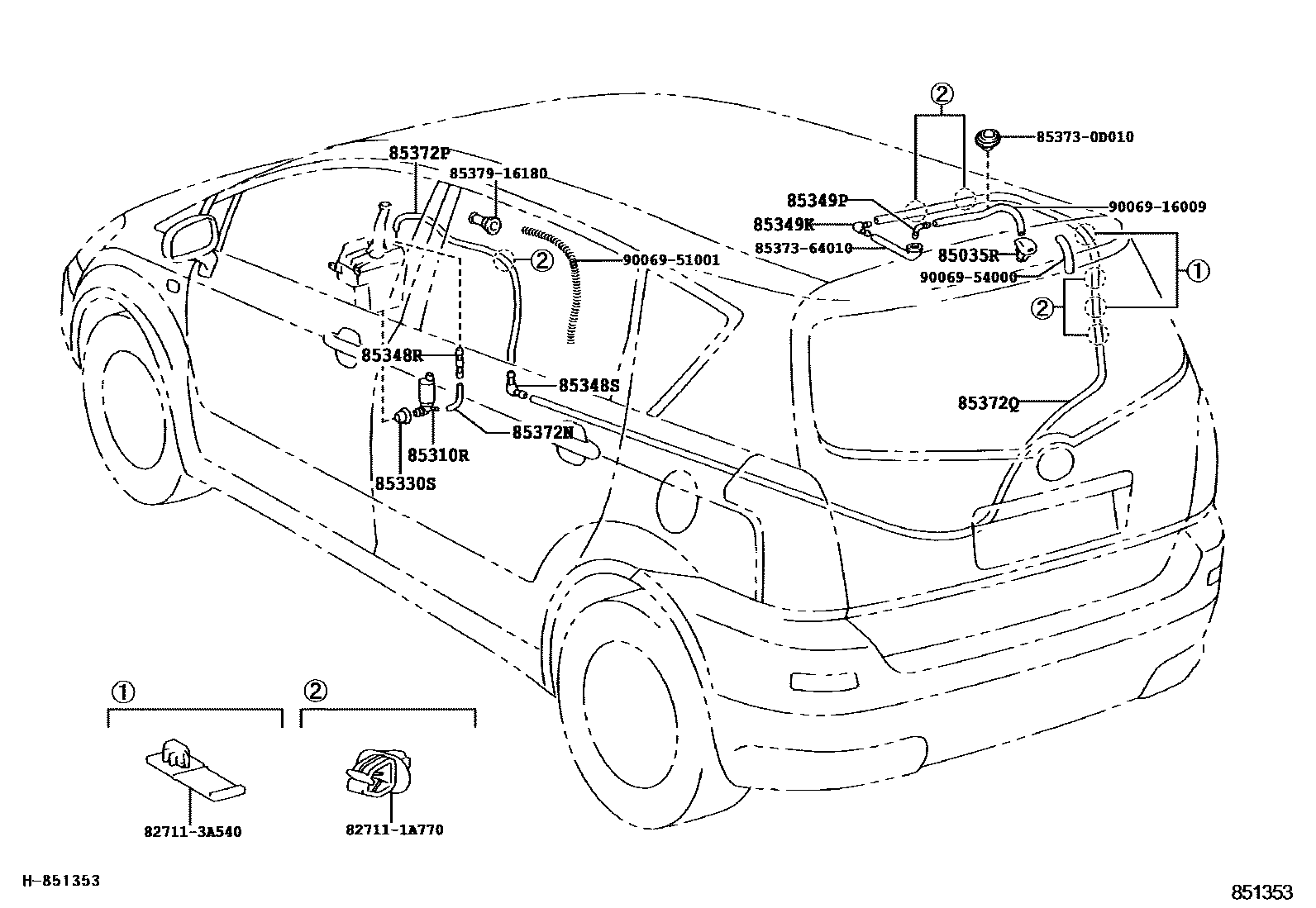

Toyota COROLLA EPC diagram 8504, 后清洗器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035R | Rear washer nozzle sub-assembly | 85391-0F010 · 85391-0F011 |
| 85310R | Rear washer motor assembly | 85340-05010 · 85340-05011 |
| 85330S | Rear washer fluid tank bushing | 90069-20005 |
| 85348R | No. 1 rear washer hose connector | 85375-05050 |
| 85348S | No. 1 rear cleaner elbow joint | 85395-05020 |
| 85349K | No. 2 rear cleaner elbow joint | 85395-05020 |
| 85349P | No. 3 rear cleaner elbow joint | 85395-0D010 |
| 85372N | No. 1 rear washer hose (from connector to connector) | 90069-16009 |
| 85372P | No. 2 rear washer hose (from connector to connector) | 90069-46011 |
| 85372Q | No. 3 rear washer hose (from connector to connector) | 90069-46012 |
