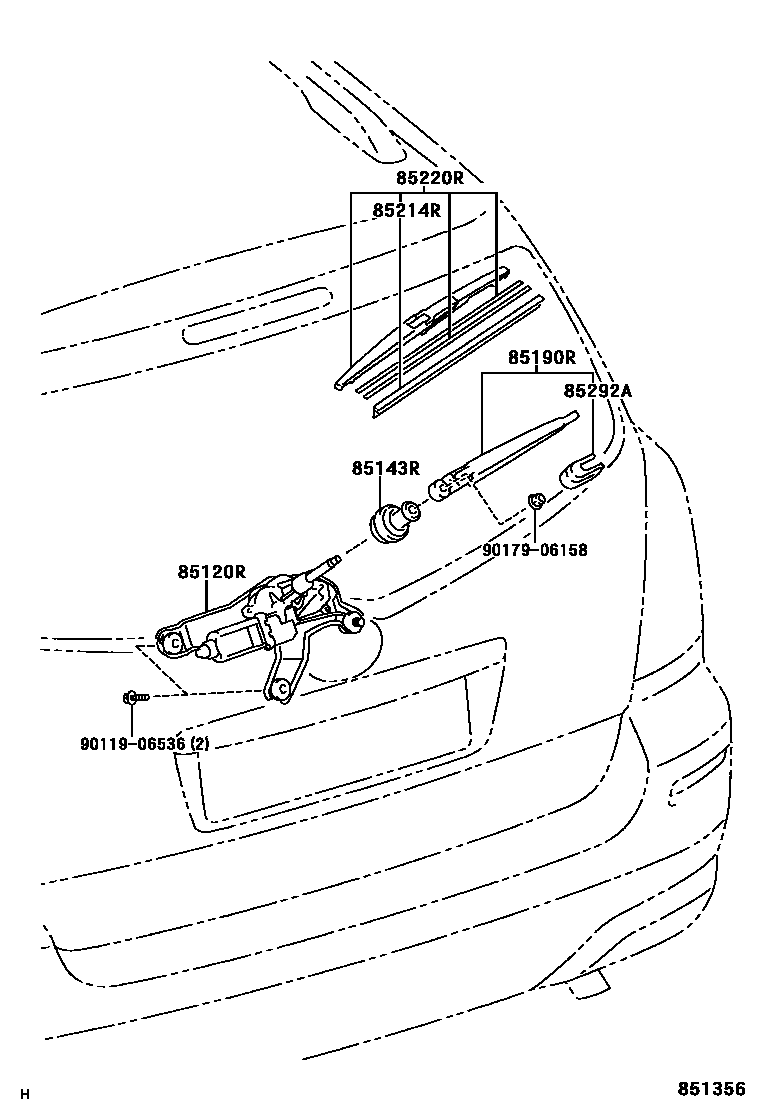

Toyota COROLLA 后刮水器 — Figure 8502
Toyota COROLLA EPC diagram 8502, 后刮水器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85120R | Rear wiper motor and bracket assembly | 85130-0F010 · 85130-0F020 |
| 85143R | Rear wiper motor seal | 85143-05060 |
| 85190R | Rear wiper arm assembly | 85241-0F010 |
| 85214R | Rear wiper rubber strip | 85214-0F010 |
| 85220R | Rear wiper blade assembly | 85242-0F010 |
| 85292A | Rear wiper arm cap | 85292-02030 |
