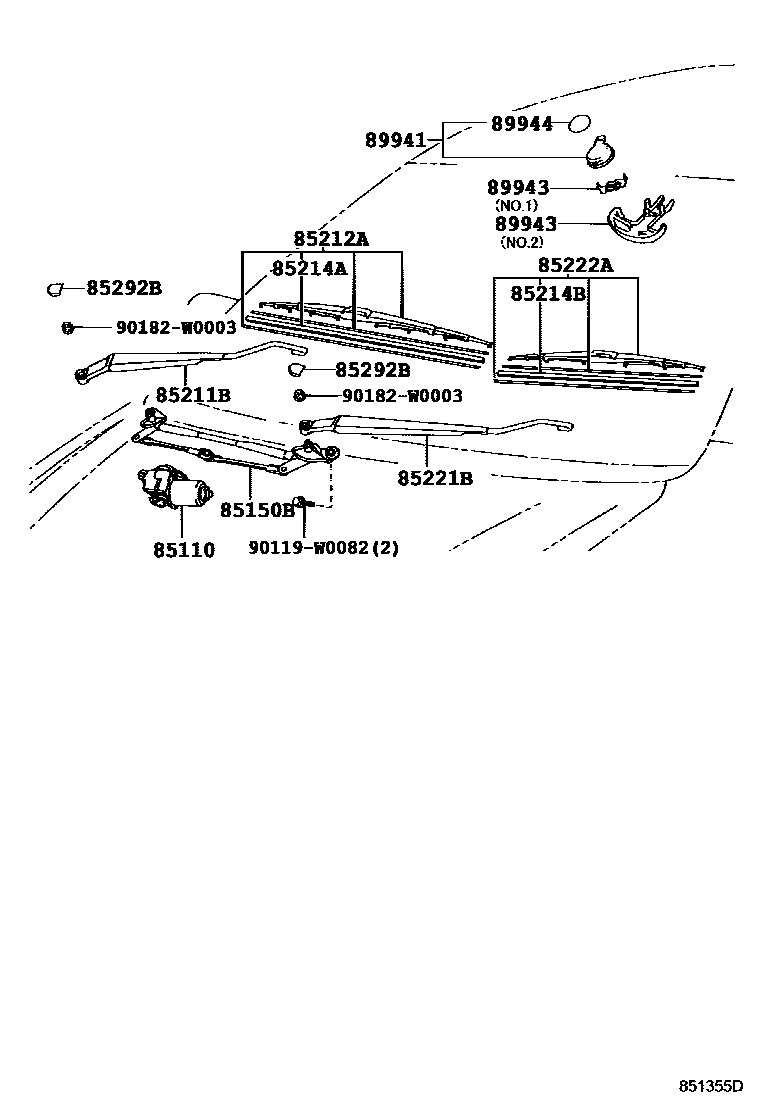

Toyota COROLLA 挡风玻璃刮水器 — Figure 8501
Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-0F010 · 85110-0F020 |
| 85150B | Wiper connecting rod assembly | 85150-0F010 · 85150-0F020 |
| 85211B | Right front wiper arm | 85211-0F010 · 85211-0F020 |
| 85212A | Right front wiper blade | 85212-05080 · 85212-05081 · 85212-0F010 |
| 85214A | Right wiper rubber strip | 85214-02210 · 85214-02211 · 85214-0F020 |
| 85214B | Left wiper rubber strip | 85214-02210 · 85214-02211 · 85214-0F020 |
| 85221B | Left front wiper arm | 85221-0F010 · 85221-0F020 |
| 85222A | Left front wiper blade | 85222-0F010 · 85222-0F020 · 85222-0F021 |
| 85292B | Front wiper arm cap | 85292-0F010 |
| 89941 | rain sensor | 89941-05010 |
| 89943 | Rain sensor cover | 89943-05010 · 89943-05020 |
| 89944 | Rain sensor tape | 89944-05010 |
