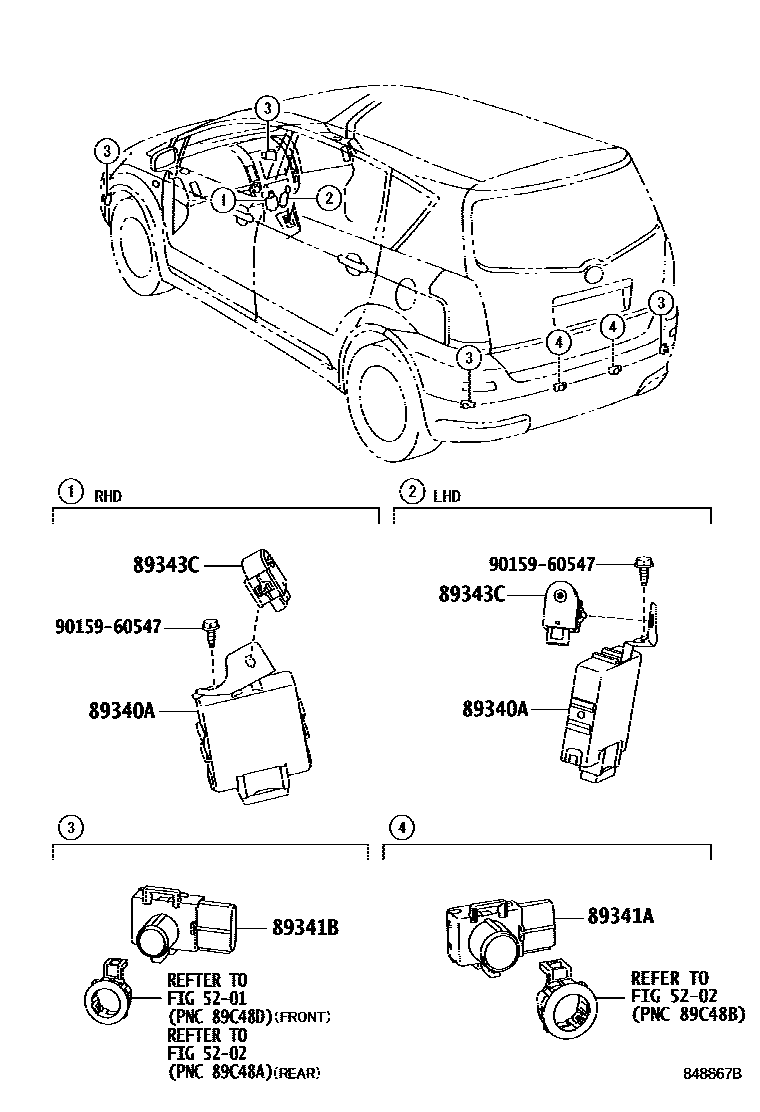

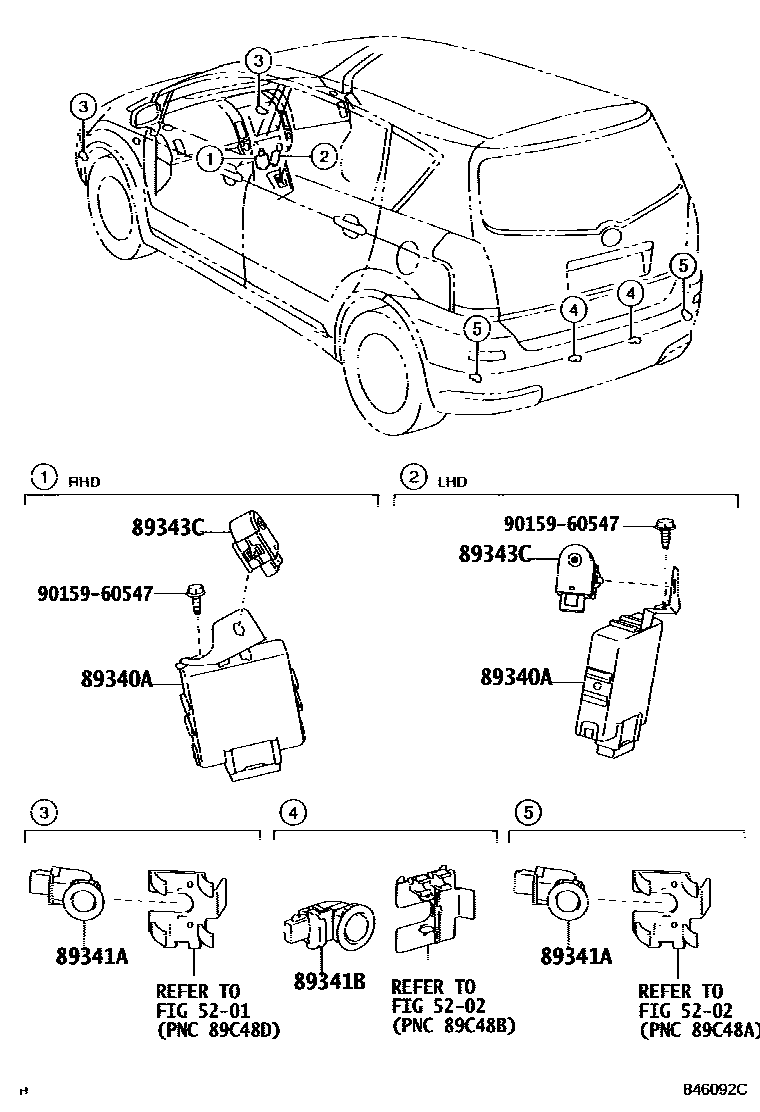

Toyota COROLLA 测距雷达和倒车雷达 — Figure 8417
Toyota COROLLA EPC diagram 8417, 测距雷达和倒车雷达, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89340A | Distance warning ECU assembly | 89340-64010 · 89340-64020 |
| 89341A | Ultrasonic sensor No. 1 | 89341-28370 |
| 89341B | Ultrasonic sensor No. 2 | 89341-52010 |
| 89343C | No. 1 distance warning buzzer | 89343-30010 · 89343-33010 |
