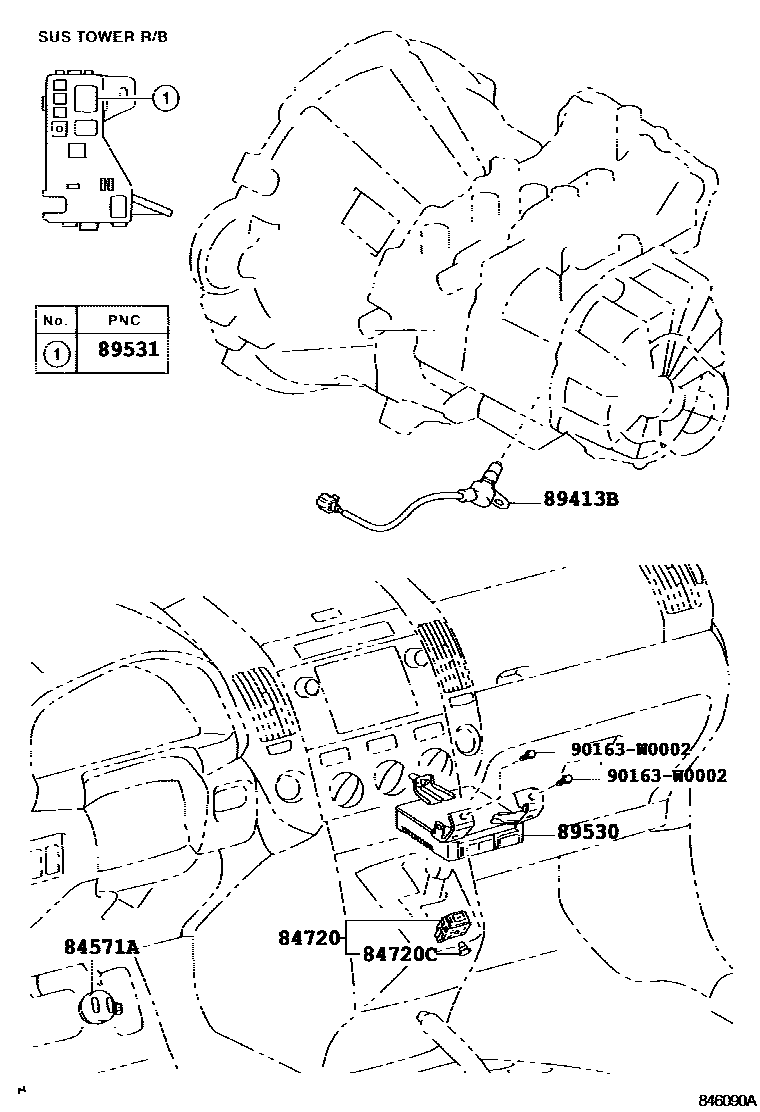

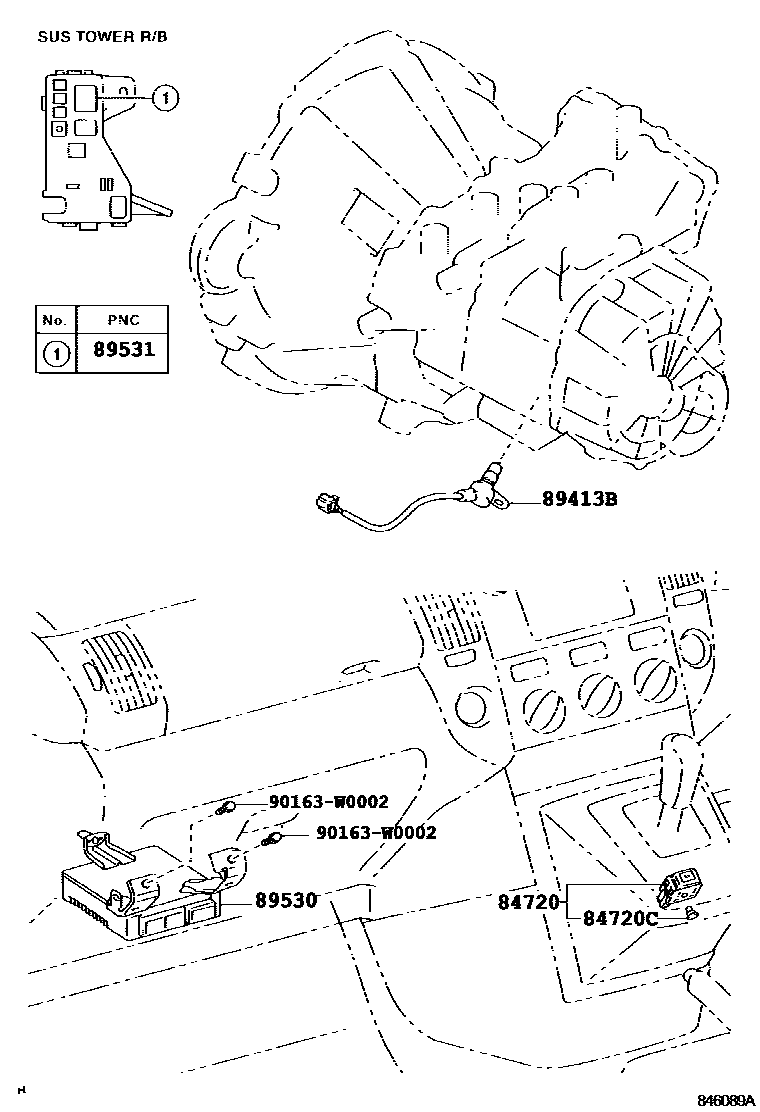

Toyota COROLLA 超速档和电子控制变速器 — Figure 8410
Toyota COROLLA EPC diagram 8410, 超速档和电子控制变速器, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84571A | Kickdown switch | 84571-12010 |
| 84720 | Mode selection switch assembly | 84720-0F010 |
| 84720C | Light bulb (for mode selector switch) | 90010-01079 |
| 89413B | Transmission speed sensor | 89413-64010 |
| 89530 | Transmission control ECU assembly | 89530-64010 · 89530-64020 · 89530-64030 · 89530-64040 |
| 89531 | transmission control relay | 90080-87030 |
