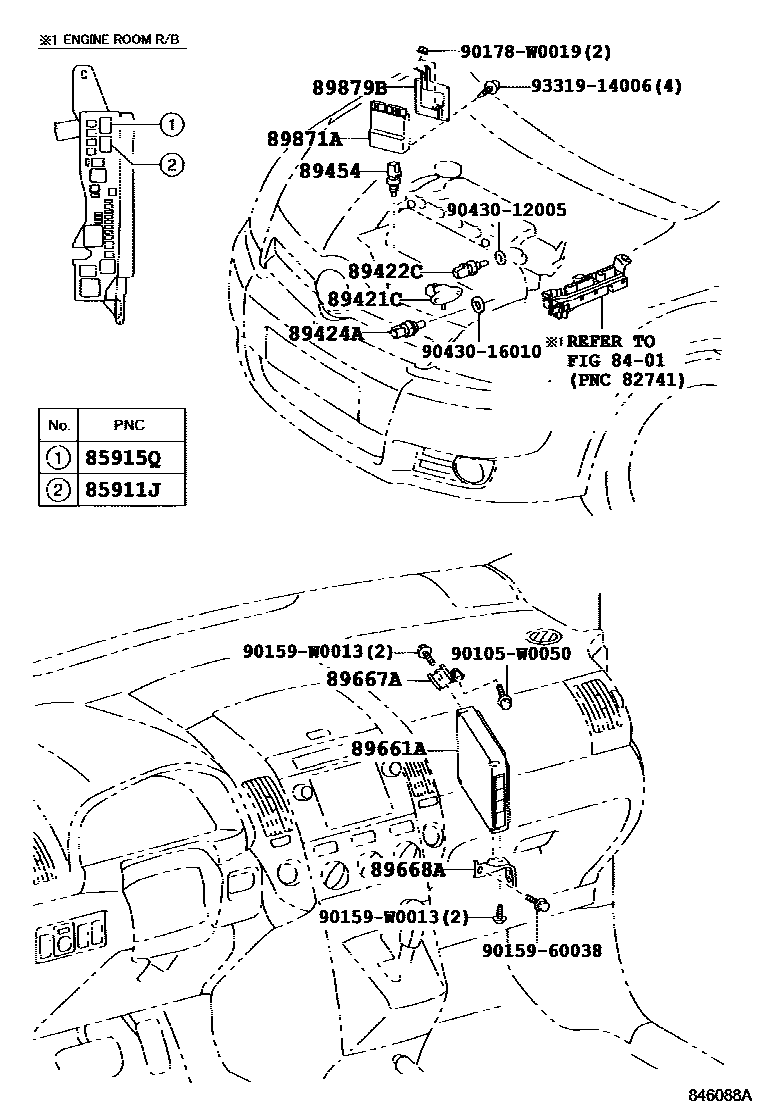

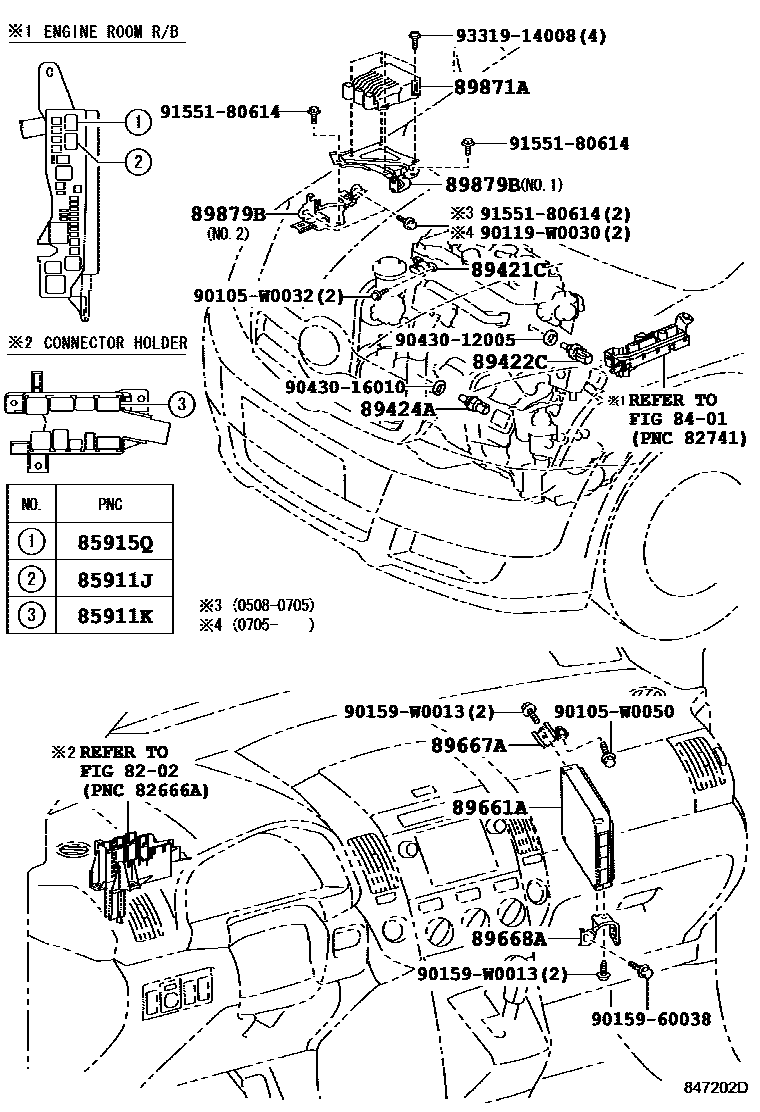

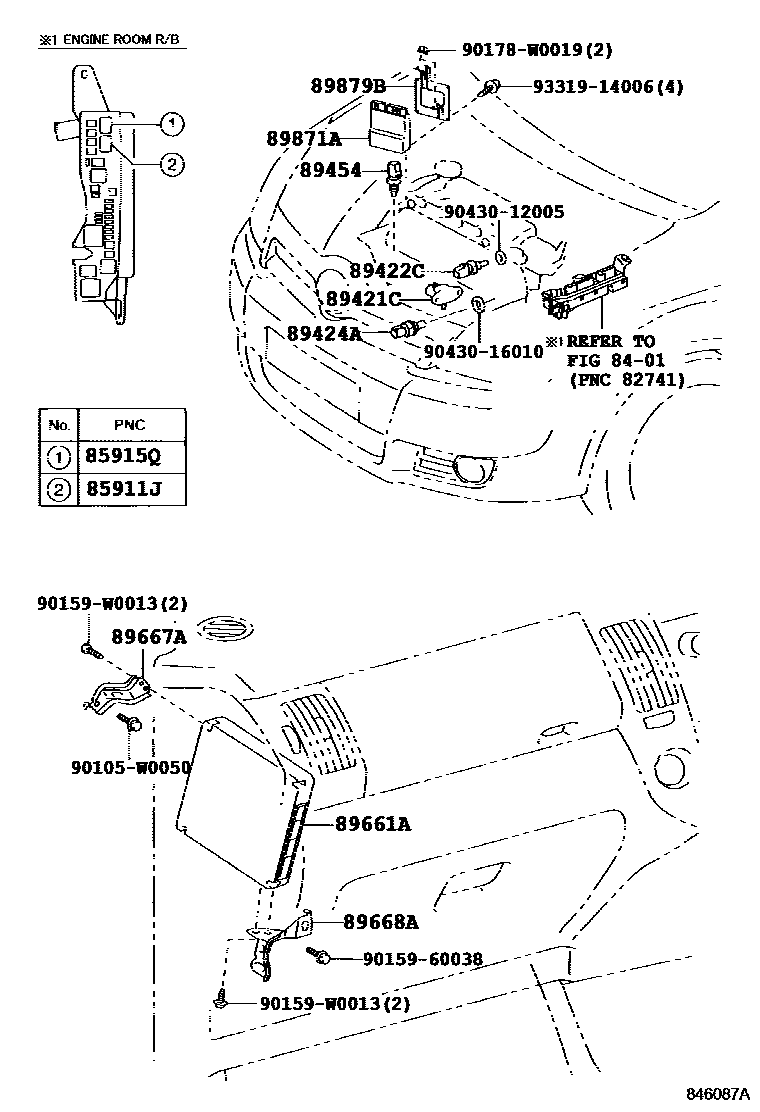

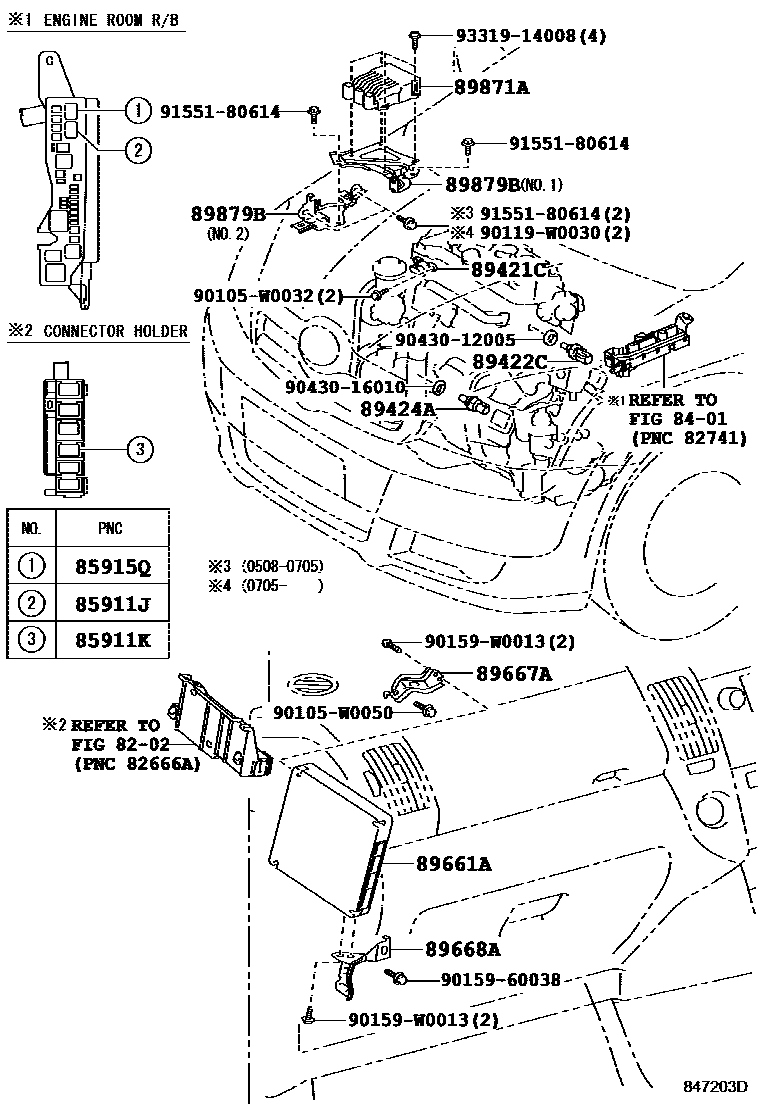

Toyota COROLLA 电子控制柴油机(ECD) — Figure 8405
Toyota COROLLA EPC diagram 8405, 电子控制柴油机(ECD), with 4 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85911J | Circuit breaking relay assembly (for ECD) | 90080-87019 |
| 85911K | Heater relay (for air-fuel ratio sensor) | 90080-87019 |
| 85915Q | ECU relay (for diesel engine) | 90080-87019 |
| 89421C | Turbo pressure sensor (for diesel turbines) | 89421-20200 · 89421-20210 |
| 89422C | Diesel engine water temperature sensor | 89422-33030 · 89422-35010 |
| 89424A | Intake air temperature sensor (for diesel turbine) | 89424-60010 |
| 89454 | fuel temperature sensor | 89454-60010 |
| 89661A | Engine control ECU | 89661-0F010 · 89661-0F020 · 89661-0F090 · 89661-0F091 · 89661-0F092 · 89661-0F100 · 89661-0F101 · 89661-0F102 · 89661-0F110 · 89661-0F111 · 89661-0F112 |
| 89667A | No. 1 engine control ECU bracket | 89667-0F010 · 89667-0F020 |
| 89668A | No. 2 engine control ECU bracket | 89668-0F010 · 89668-0F020 |
| 89871A | Injector driver | 89871-20050 · 89871-20070 · 89871-71010 |
| 89879B | Injector driver bracket | 89879-20130 · 89879-20140 · 89879-20150 · 89879-20160 |
