Toyota COROLLA 电子燃油喷射系统 — Figure 8404

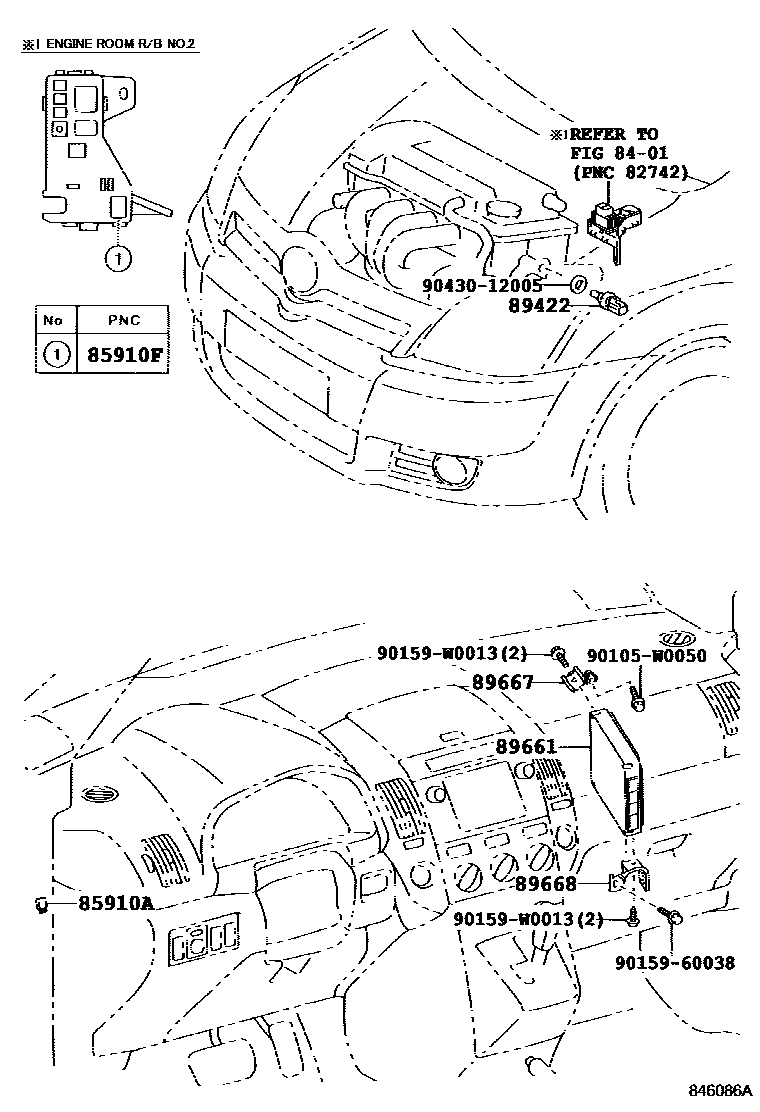

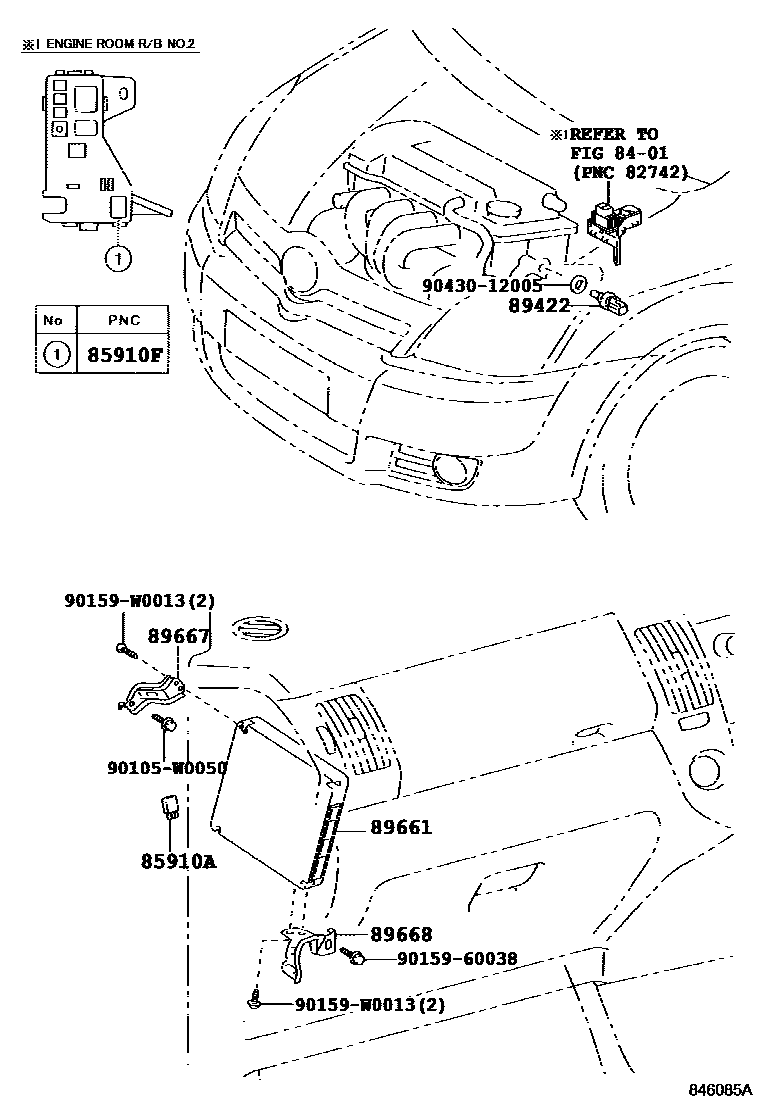

Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 90080-87019 |
| 85910F | ECU relay (for EFI) | 90080-87019 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-35010 |
| 89661 | Engine control ECU | 89661-0F030 · 89661-0F040 · 89661-0F050 · 89661-0F060 · 89661-0F070 · 89661-0F080 |
| 89667 | Engine control ECU bracket | 89667-0F010 · 89667-0F020 |
| 89668 | No. 2 engine control ECU bracket | 89668-0F030 · 89668-0F040 |
