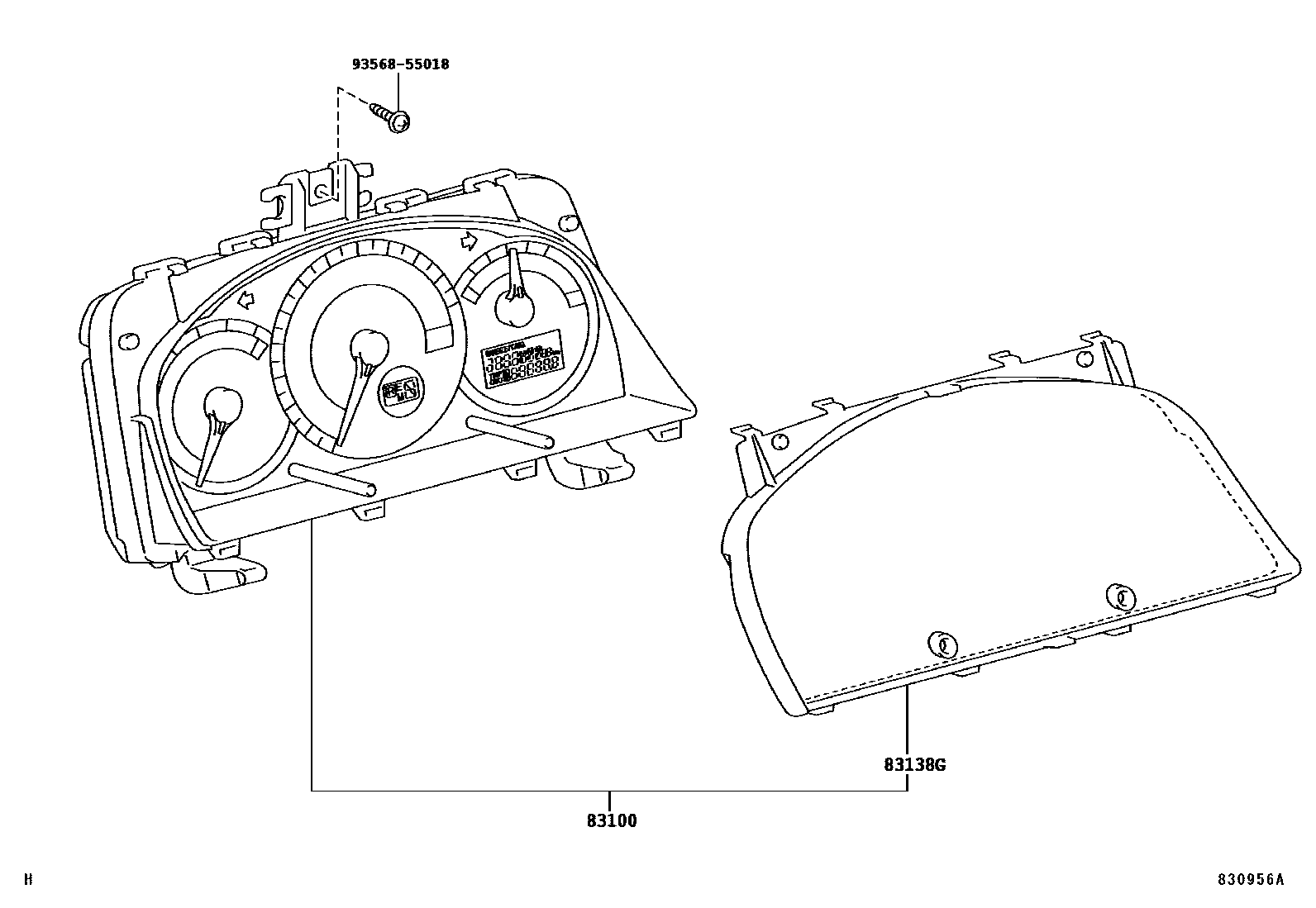

Toyota COROLLA 仪表 — Figure 8301
Toyota COROLLA EPC diagram 8301, 仪表, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100 | Combined instrument assembly | 83800-0F010 · 83800-0F011 · 83800-0F020 · 83800-0F021 · 83800-0F030 · 83800-0F031 · 83800-0F040 · 83800-0F041 · 83800-0F050 · 83800-0F060 · 83800-0F080 · 83800-0F081 · 83800-0F082 · 83800-0F090 · 83800-0F091 · 83800-0F092 |
| 83138G | Instrument cluster glass | 83852-0F010 |
