Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201

Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 6 PNC and OE references.

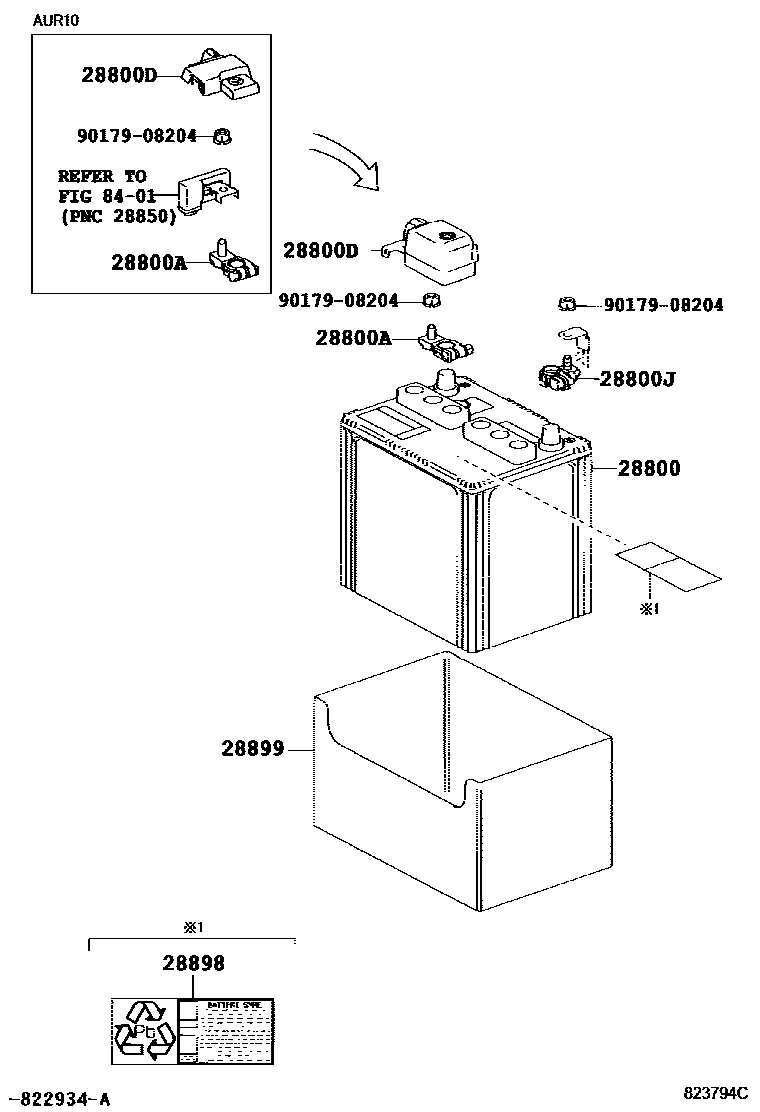

Toyota COROLLA 蓄电池和蓄电池电缆 EPC diagram — 823794C
蓄电池和蓄电池电缆 — 823794C (200402 – 999999)

PNC and OE references

PNCPart nameOE numbers
28800battery28800-0D130 · 28800-0D140 · 28800-0G010 · 28800-0G011 · 28800-0G041 · 28800-0R050
28800Abattery positive terminal90982-05056
28800DConnector cover (for battery terminals)82821-12500 · 82821-20480 · 82821-52060
28800Jbattery negative terminal90982-06028
28898battery plates28898-0B010
28899Battery insulation cover28899-27010 · 28899-27020 · 28899-27050 · 28899-27060
