Toyota COROLLA 车内灯 — Figure 8121

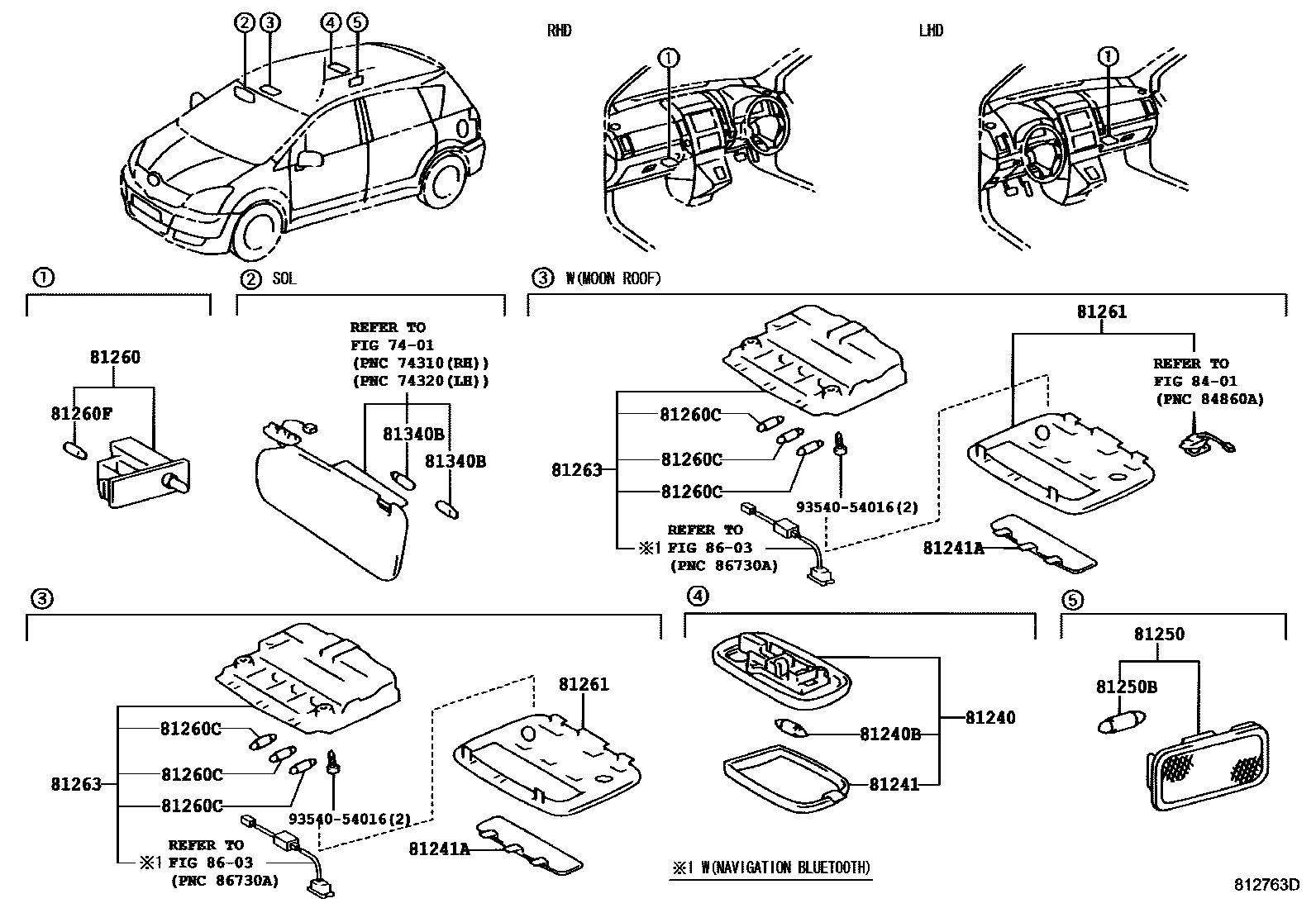

Toyota COROLLA EPC diagram 8121, 车内灯, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81240B | Interior light bulb No. 1 | 90981-14011 |
| 81241 | Interior light cover No. 1 | 81241-12070 |
| 81241A | Interior light cover No. 2 | 81363-05010 |
| 81250 | No. 2 interior light assembly | 81330-05020 · 81330-05021 |
| 81250B | Interior light bulb No. 2 | 90080-81049 · 90981-WE002 |
| 81260 | Glove box light assembly | 81260-13040 |
| 81260C | Light bulb (for reading lamp) | 90080-81049 · 90981-WE002 |
| 81260F | Bulb (for glove box light) | 90981-11018 |
| 81340B | Bulb (for vanity lights) | 90080-81112 · 90981-WB012 |
