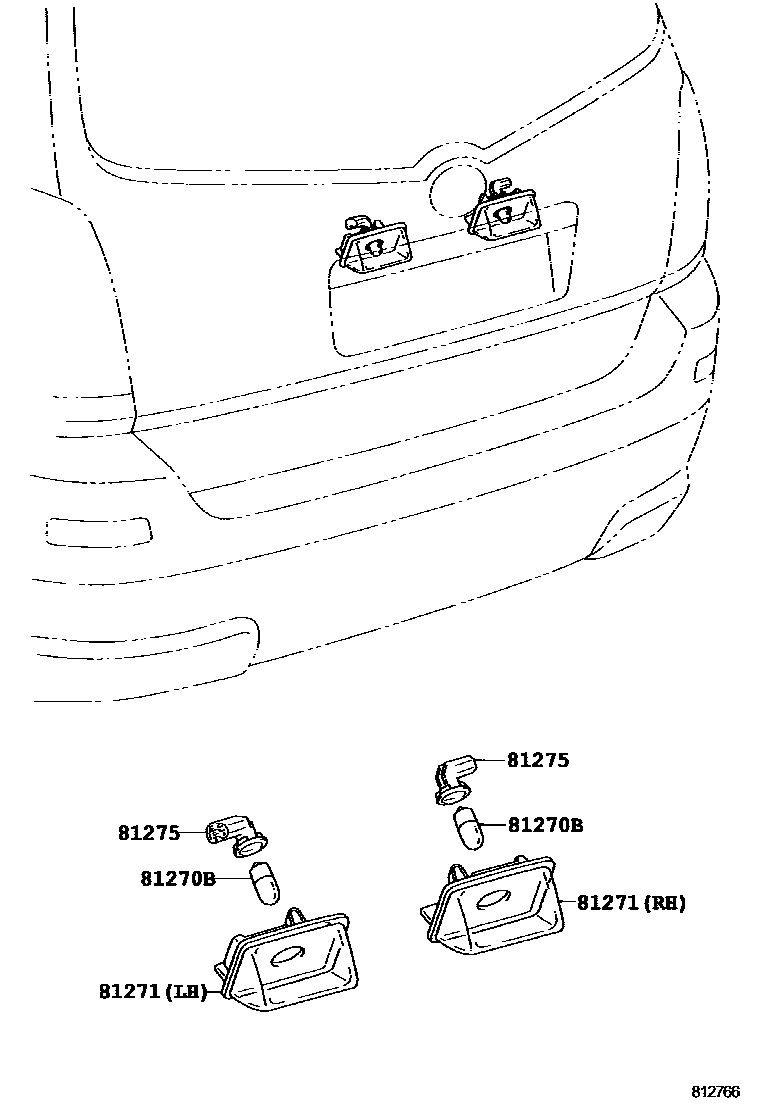

Toyota COROLLA 后牌照灯 — Figure 8113
Toyota COROLLA EPC diagram 8113, 后牌照灯, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81270B | Bulb (for license plate light) | 90080-81110 · 90981-WB008 |
| 81271 | license plate lamp shade | 81271-0F010 · 81691-0F010 |
| 81275 | License plate lamp holder and wiring harness | 81275-02080 |
