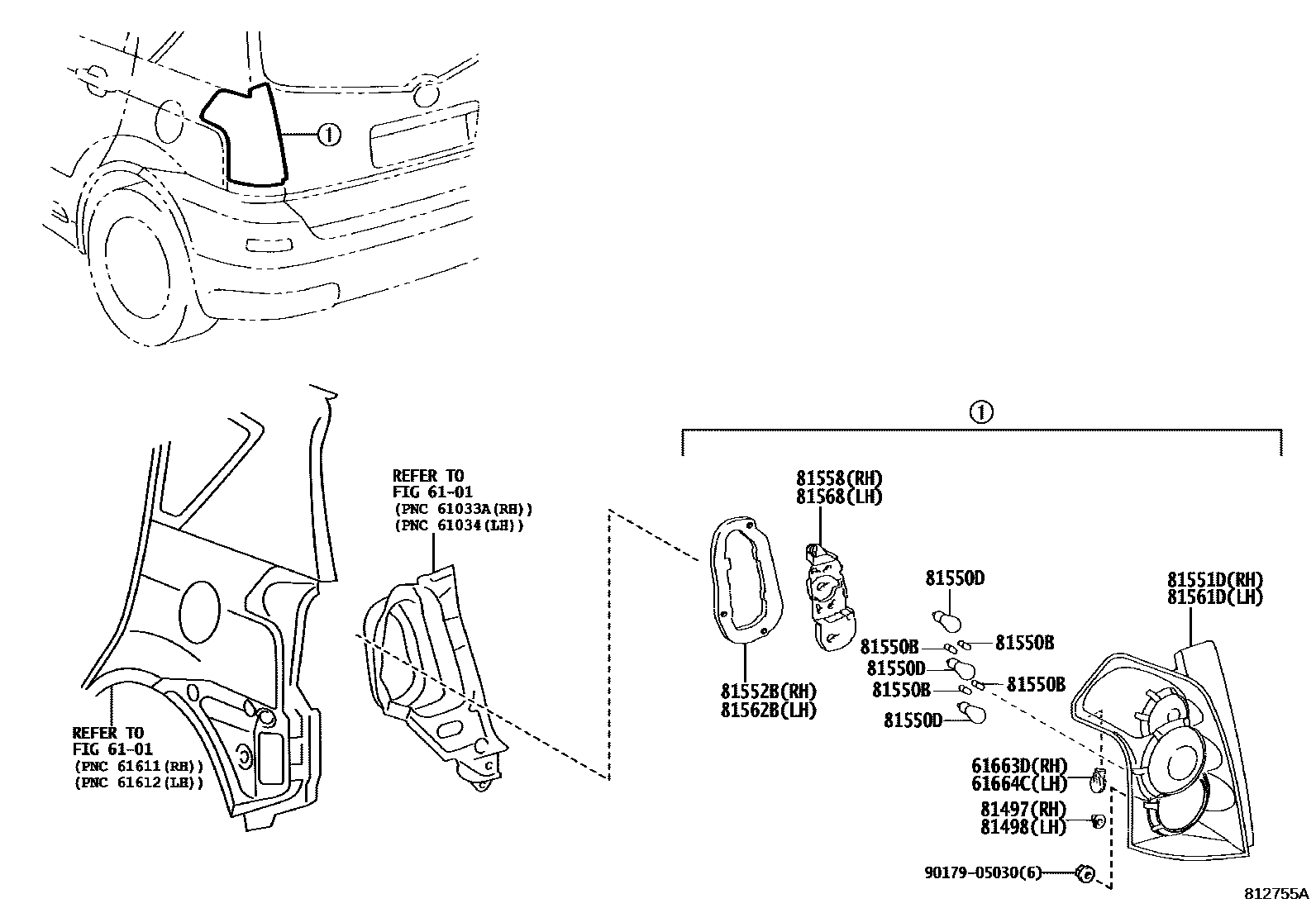

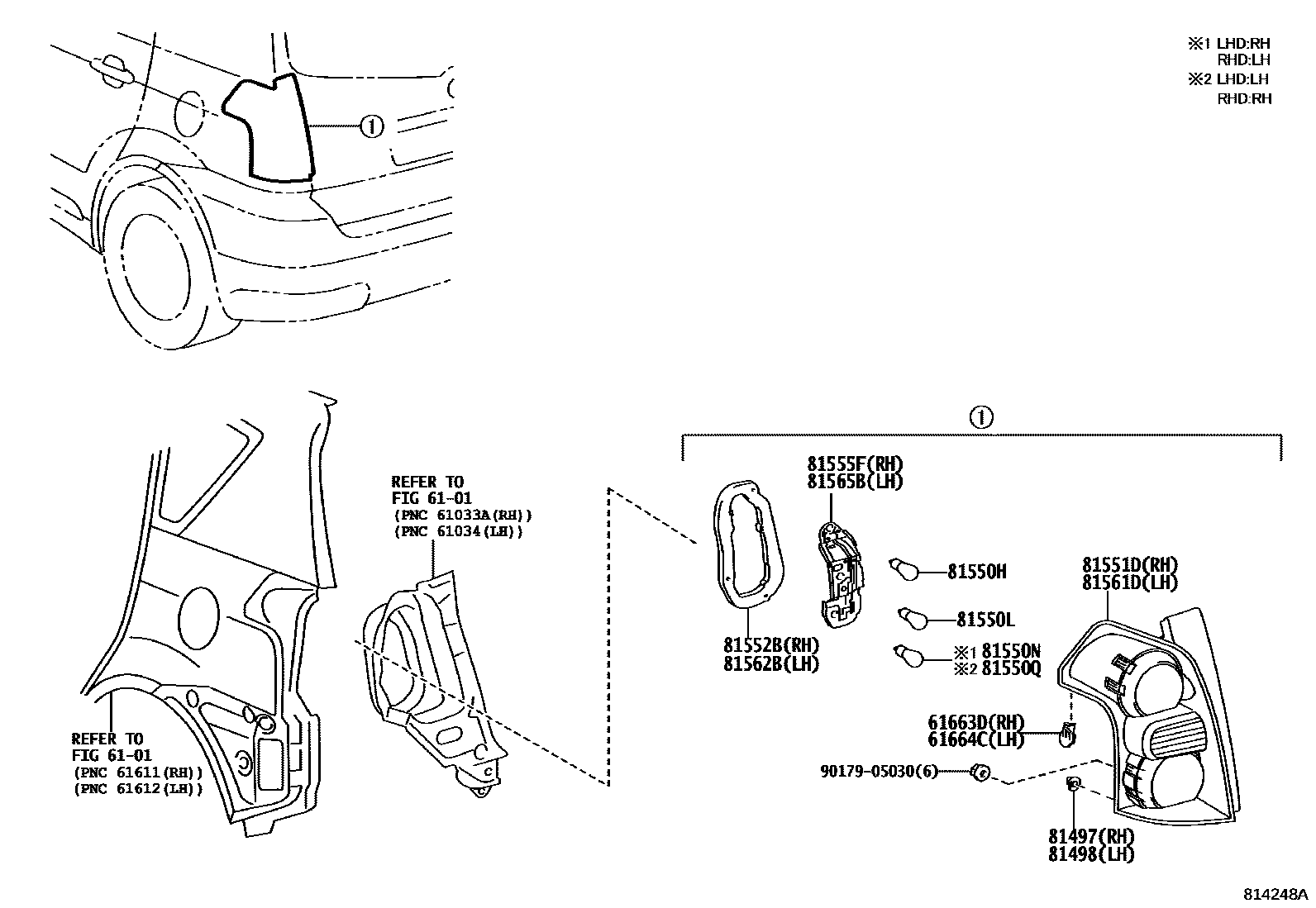

Toyota COROLLA 后组合灯 — Figure 8111
Toyota COROLLA EPC diagram 8111, 后组合灯, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 61663D | Right rear combination light bracket | 61663-0F020 |
| 61664C | Left rear combination light bracket | 61664-0F020 |
| 81497 | Right rear combination lamp cover | 81497-0F010 |
| 81498 | Left rear combination lamp cover | 81497-0F010 |
| 81550B | Bulb (for rear combination lights) | 90981-WB016 · 90981-WB018 · 90981-WC002 |
| 81550D | Bulb (for rear combination lights) | 90080-81108 · 90981-WC007 · 90981-WD003 |
| 81550H | Tail and brake light bulbs | 90981-WC008 |
| 81550L | Rear turn signal light bulb | 90981-WF006 · 90981-WF007 |
| 81550N | reversing light bulb | 90981-WC007 · 90981-WC010 |
| 81550Q | Rear fog light bulb No. 1 | 90981-WC007 · 90981-WC010 |
| 81551D | Right rear combination lamp shade and lamp body | 81551-0F010 · 81551-0F020 · 81551-0F050 · 81551-0F060 · 81551-0F070 · 81551-0F080 |
| 81552B | Right rear combination lamp lamp body seal | 81552-0F010 · 81552-0F050 |
| 81555F | Right rear combination light lamp holder | 81555-0F050 |
| 81558 | No. 1 right rear combination light lampshade | 81557-0F010 |
| 81561D | Left rear combination lamp lampshade and lamp body | 81561-0F010 · 81561-0F020 · 81561-0F050 · 81561-0F060 · 81561-0F070 · 81561-0F080 |
| 81562B | Left rear combination lamp body seal | 81552-0F010 · 81552-0F050 |
| 81565B | Left rear combination light lamp holder | 81565-0F050 |
| 81568 | No. 1 left rear combination light lampshade | 81567-0F010 |
