Toyota COROLLA Fog Lamp — Figure 8102

Toyota COROLLA EPC diagram 8102, Fog Lamp, with 2 images and 5 PNC and OE references.

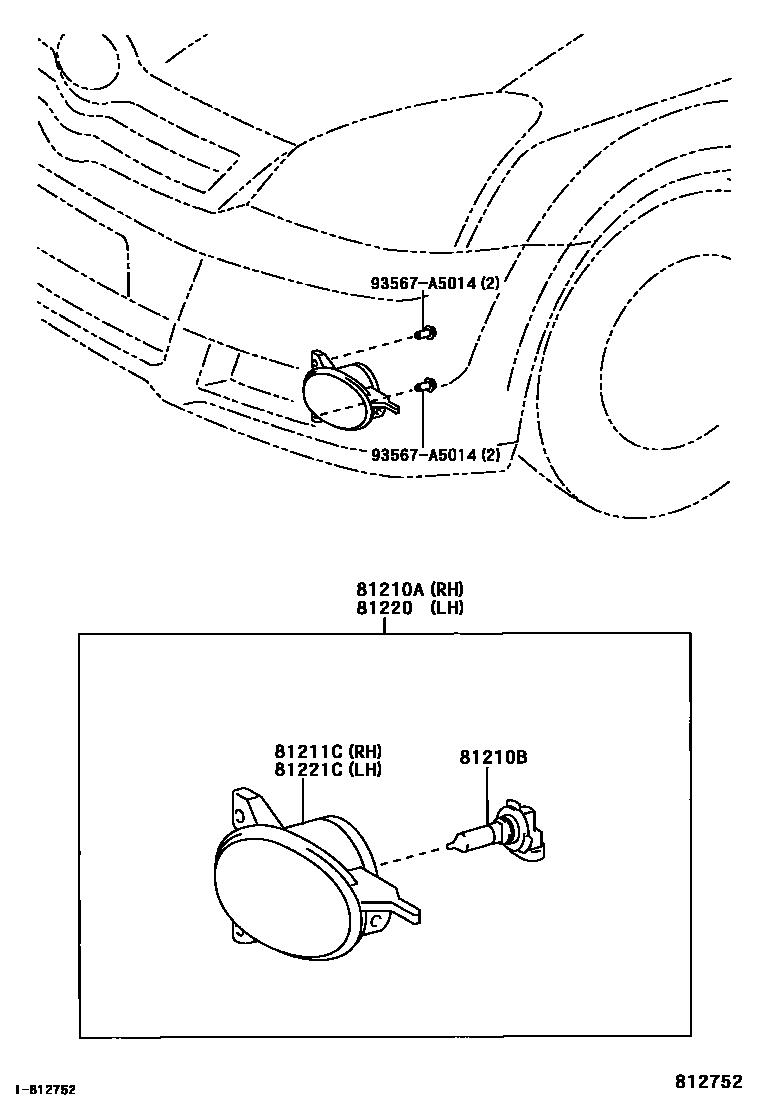

Toyota COROLLA Fog Lamp EPC diagram — 812752
Fog Lamp — 812752 (200402 – 200705)

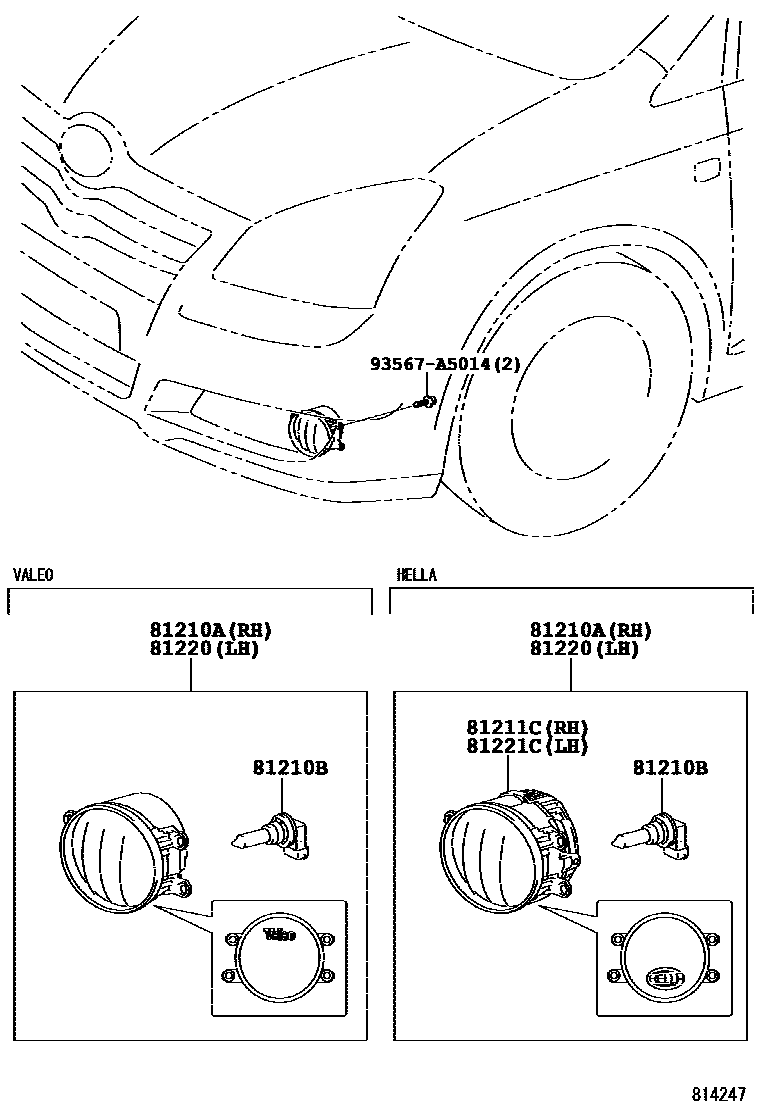

Toyota COROLLA Fog Lamp EPC diagram — 814247
Fog Lamp — 814247 (200705 – 999999)

PNC and OE references

PNCPart nameOE numbers
81210ARight fog light assembly81210-0D041 · 81210-0F010 · 81210-0F020
81210Bfog light bulb90981-13047 · 90981-13081 · 90981-WD013 · 90981-WD014
81211CRight fog light assembly81211-0F010 · 81211-0F020
81220Left fog light assembly81220-0D041 · 81220-0F010 · 81220-0F020
81221CLeft fog light assembly81221-0F010 · 81221-0F020
