Toyota COROLLA Headlamp — Figure 8101

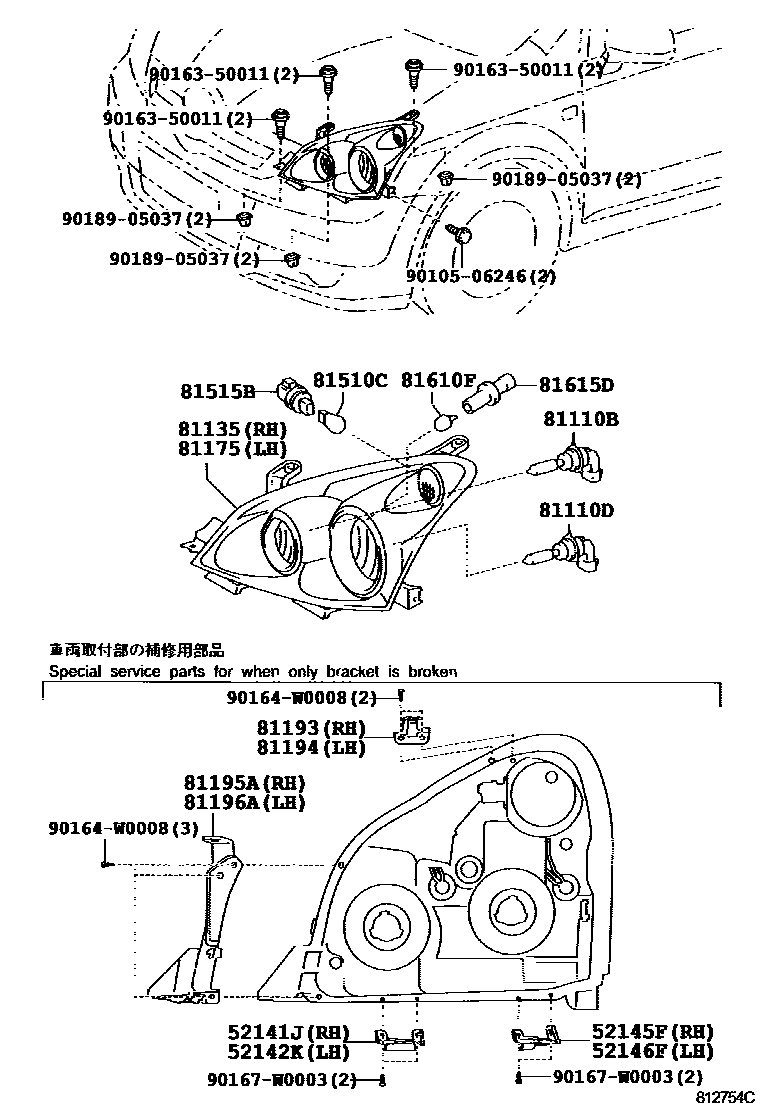

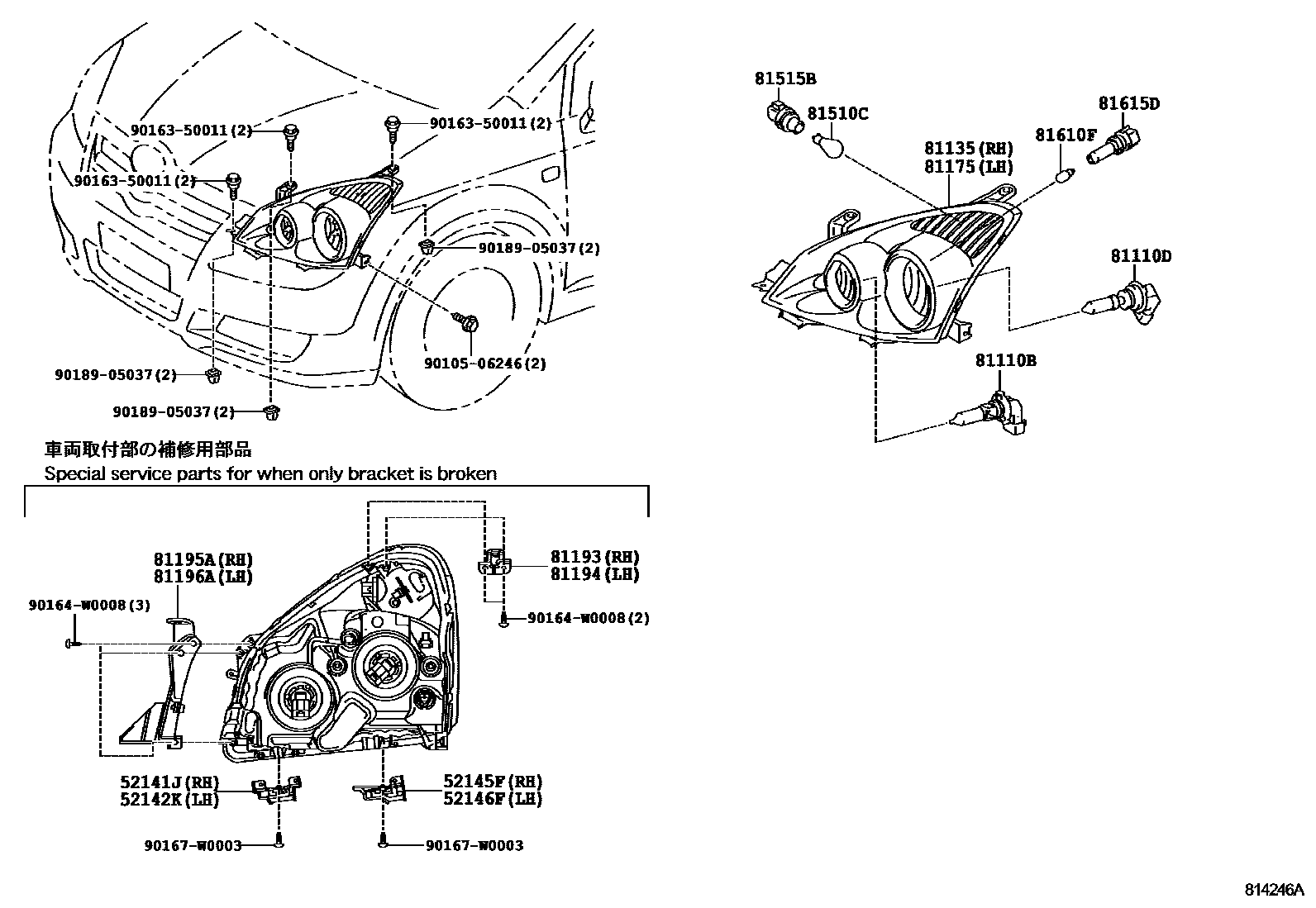

Toyota COROLLA EPC diagram 8101, Headlamp, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52141J | Front bumper right side stay | 52141-0F010 · 52141-0F030 |
| 52142K | Front bumper left stay | 52142-0F010 · 52142-0F030 |
| 52145F | Front bumper No. 2 right side stay | 52145-0F010 · 52145-0F020 |
| 52146F | Front bumper No. 2 left side stay | 52146-0F010 · 52146-0F020 |
| 81110B | Bulb (for headlight No. 1) | 90981-WD008 |
| 81110D | Bulb (for headlight No. 2) | 90981-WD007 |
| 81135 | Right headlight assembly | 81130-0F010 · 81130-0F020 · 81130-0F050 · 81130-0F060 · 81130-0F070 · 81130-0F080 |
| 81175 | Left headlight assembly | 81170-0F010 · 81170-0F020 · 81170-0F050 · 81170-0F060 · 81170-0F070 · 81170-0F080 |
| 81193 | Right headlight upper protective ring | 81193-0F010 |
| 81194 | Left headlight upper protective ring | 81194-0F010 |
| 81195A | Right headlight lower protection ring | 81195-0F010 · 81195-0F020 |
| 81196A | Left headlight lower protection ring | 81196-0F010 · 81196-0F020 |
| 81510C | Bulb (for front turn signal lamp) | 90981-WF002 |
| 81515B | Front turn signal lamp holder | 81515-16280 |
| 81610F | Light bulb (for width indicator light) | 99132-12050 |
| 81615D | Width light lamp holder | 81138-22680 |
