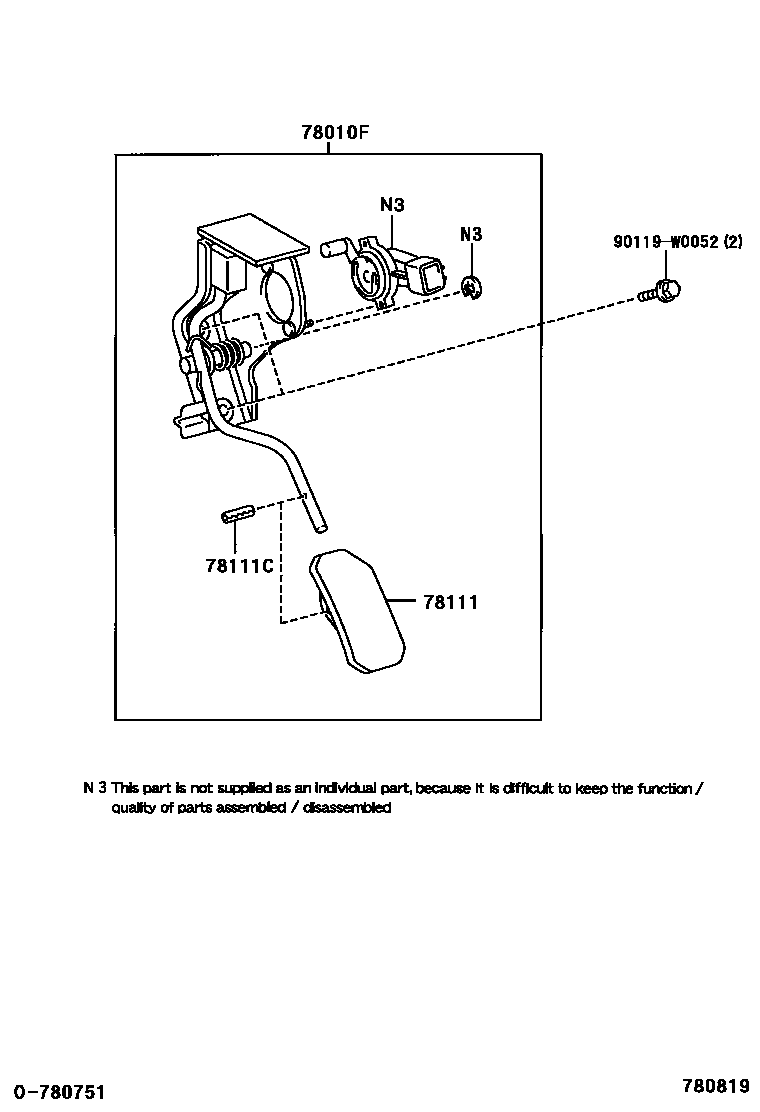

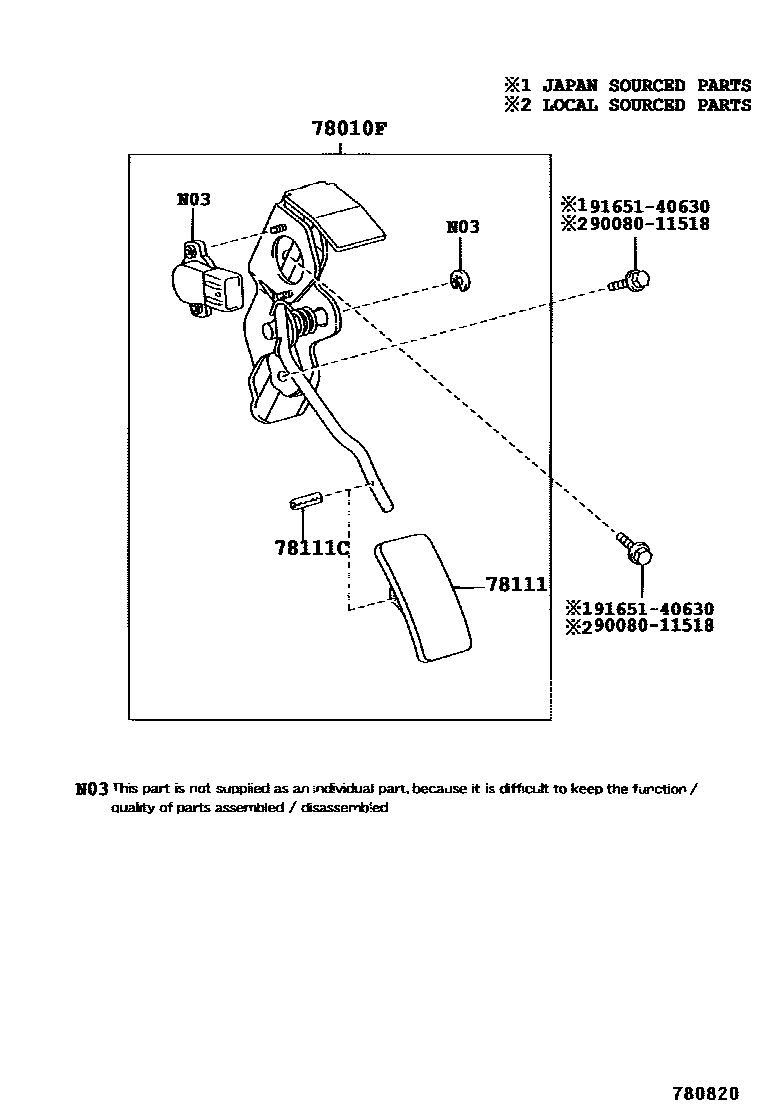

Toyota COROLLA accelerator pedal connecting rod — Figure 7801
Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78010F | Accelerator pedal assembly | 78010-13011 · 78010-13022 · 78010-13023 · 78010-20122 |
| 78111 | accelerator pedal | 78111-32020 · 78111-35030 |
| 78111C | pin (for gas pedal) | 90254-04019 |
