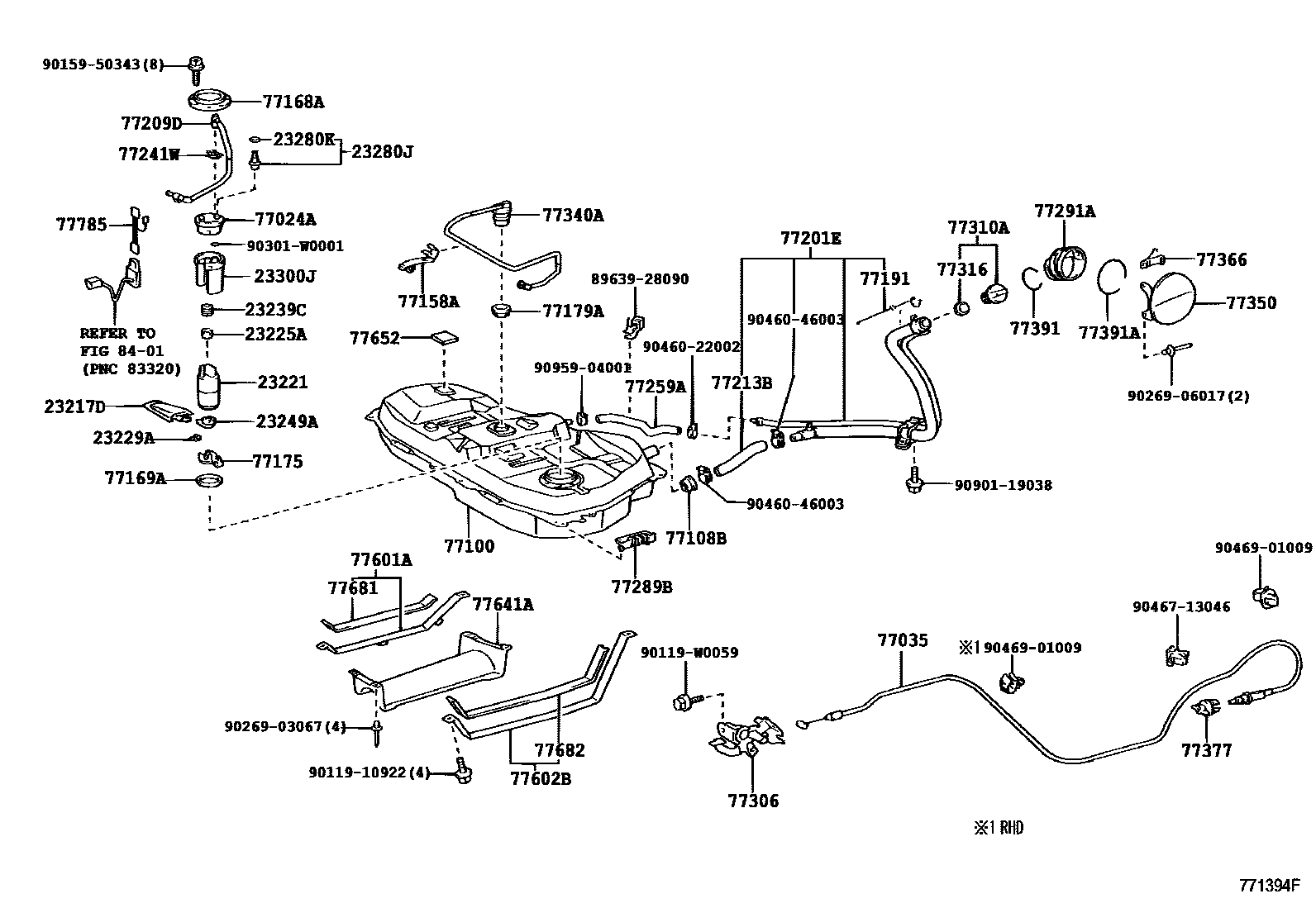

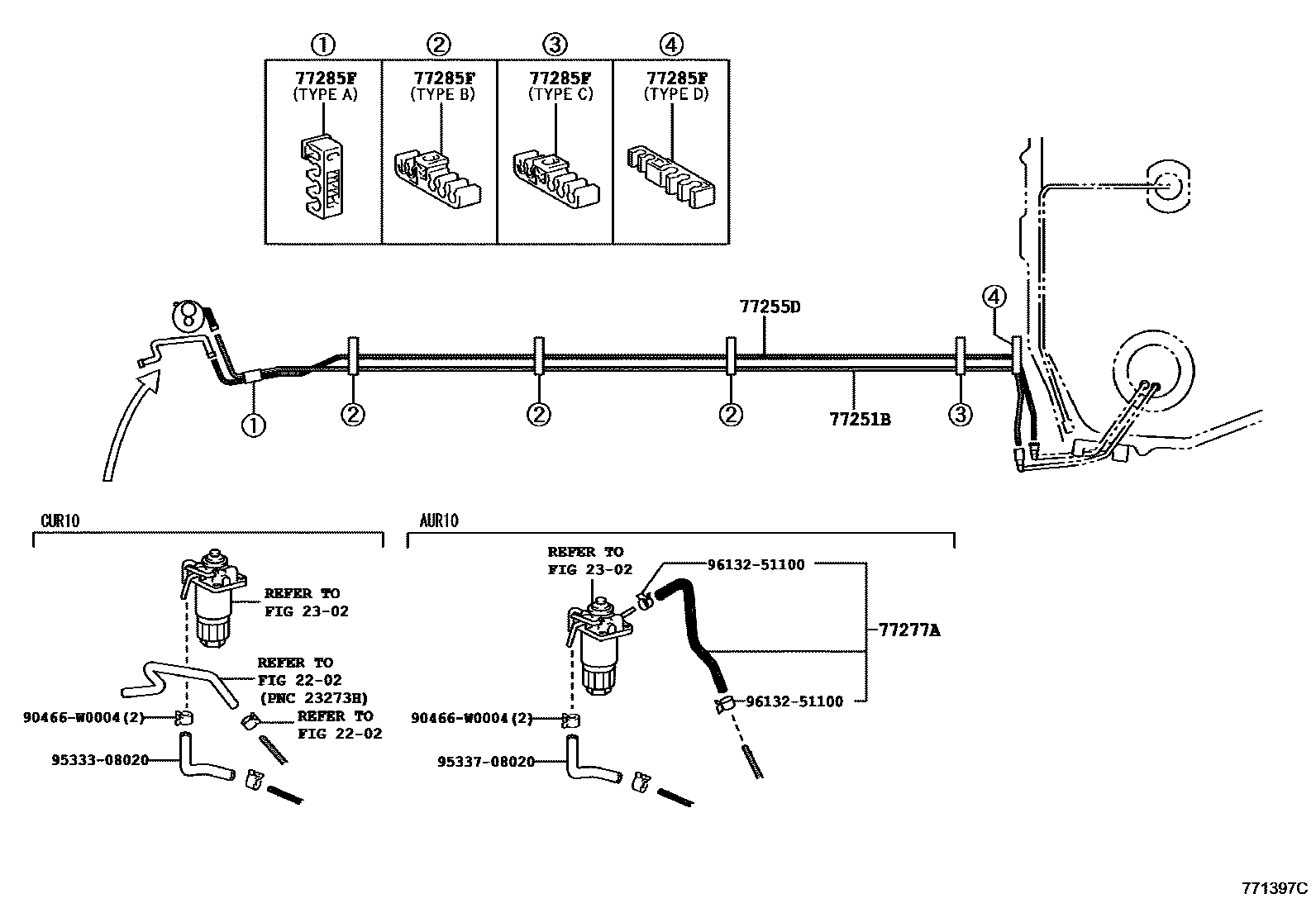

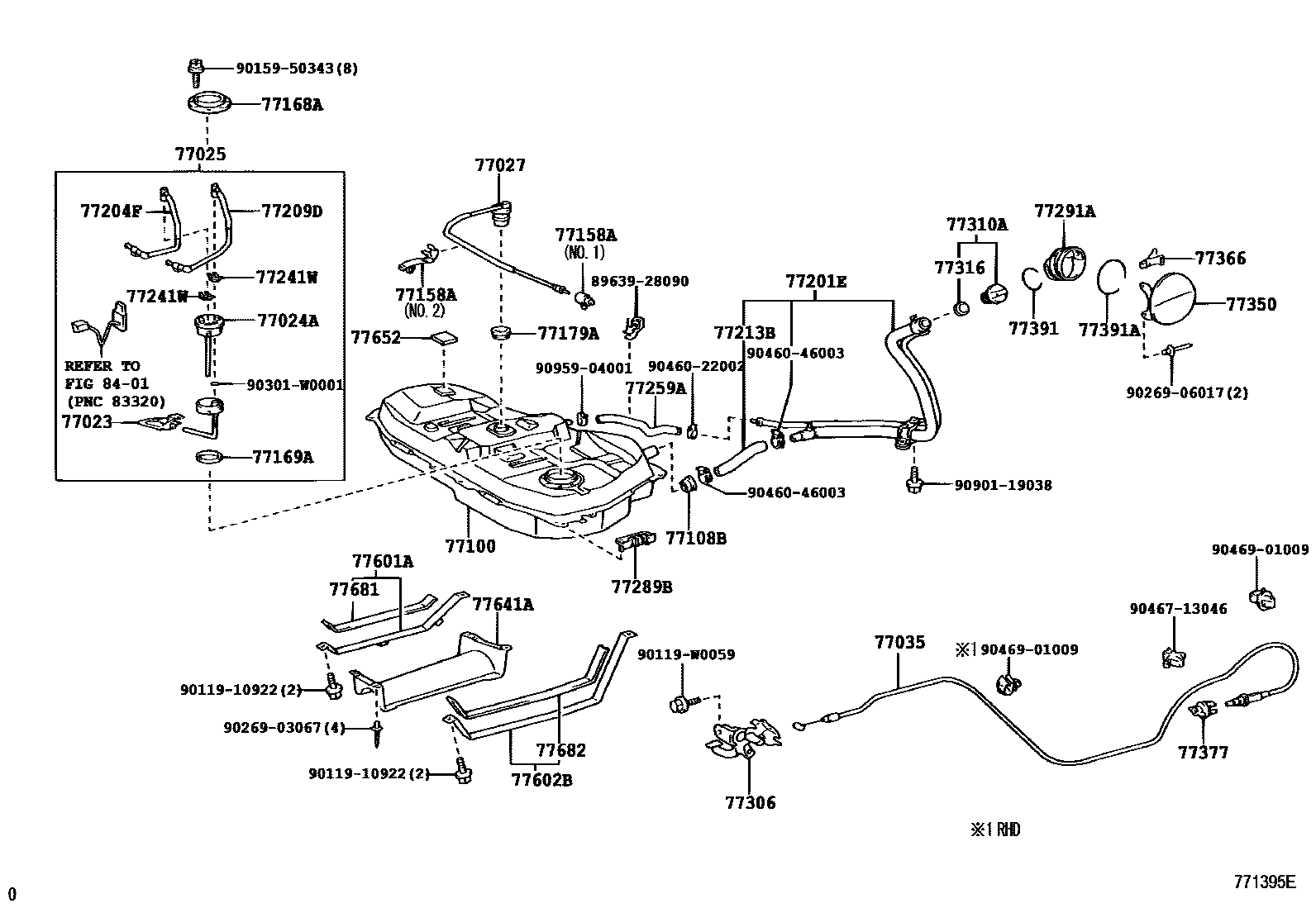

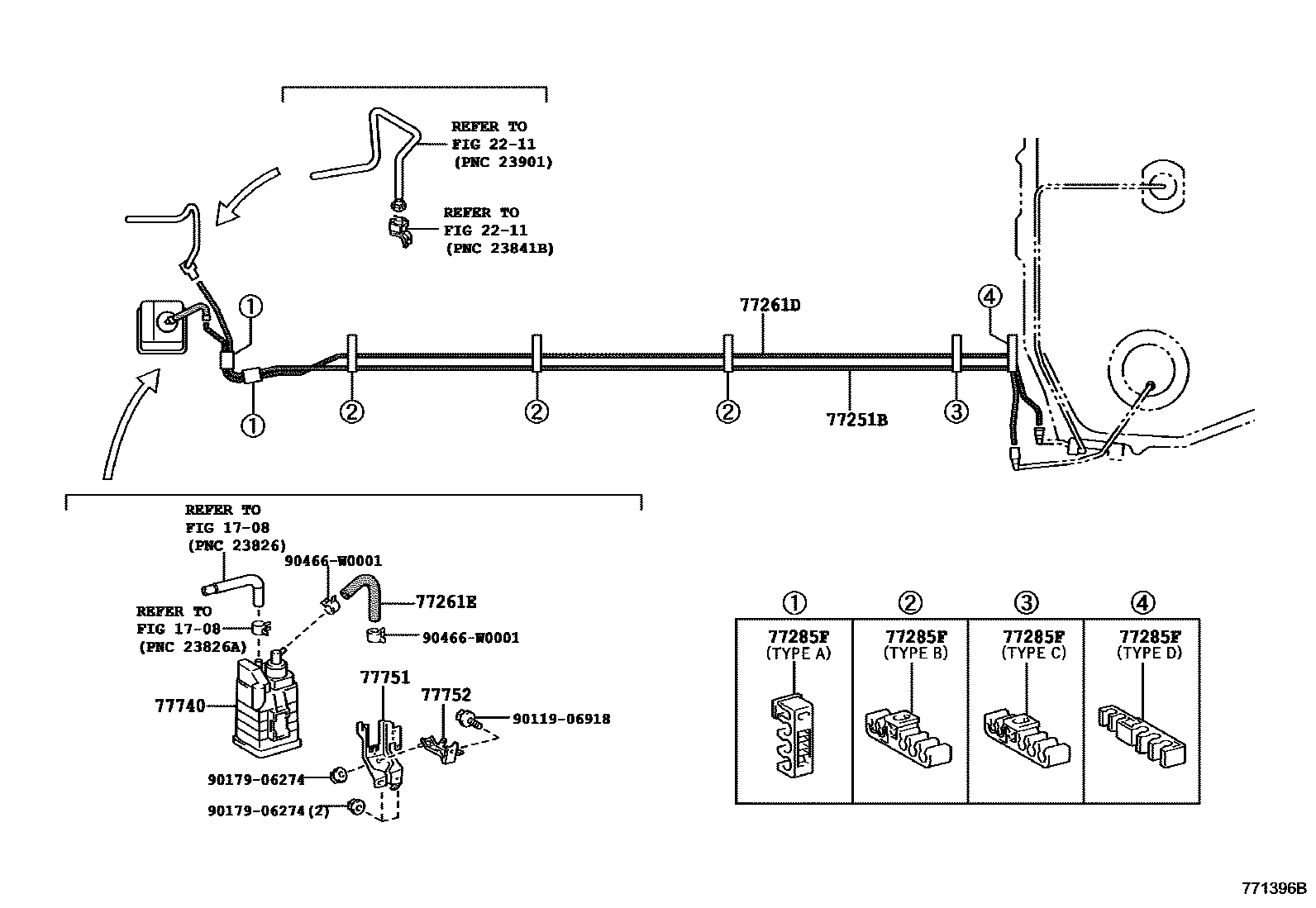

Toyota COROLLA 燃油箱和燃油管 — Figure 7701
Toyota COROLLA EPC diagram 7701, 燃油箱和燃油管, with 4 images and 55 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23217D | fuel pump filter | 23217-0D070 |
| 23221 | fuel pump | 23221-0D070 · 23221-0D080 |
| 23225A | fuel pump septum | 23225-0D020 · 23225-21010 |
| 23229A | Clip (for fuel pump filter) | 23229-16010 |
| 23239C | fuel pump filter seal | 23239-0D020 · 23239-21010 |
| 23249A | Rubber gasket (for fuel pump) | 23249-74610 |
| 23280J | Fuel pressure regulator assembly | 23280-22010 |
| 23280K | O-ring (for fuel pressure regulator) | 90301-07020 |
| 23300J | fuel filter assembly | 23300-28040 |
| 77023 | Fuel suction pipe filter sub-assembly | 77023-32040 |
| 77024A | Fuel absorber sub-assembly | 77024-0F010 · 77024-0F020 |
| 77025 | Rear main fuel pipe and fuel return pipe sub-assembly | 77010-0F010 |
| 77027 | No. 2 fuel evaporation pipe sub-assembly | 77027-0F010 |
| 77035 | Fuel filler cap lock control cable sub-assembly | 77035-0F010 · 77035-0F020 |
| 77100 | fuel tank assembly | 77001-0F010 · 77001-0F020 |
| 77108B | Fuel tank refueling check valve sub-assembly | 77108-12040 |
| 77158A | Fuel tank suction pipe bracket | 77158-12030 · 77158-68010 |
| 77168A | Fuel tank vent pipe fixing plate | 77168-02010 |
| 77169A | Fuel suction pipe fixed gasket | 77169-33020 |
| 77175 | No. 2 oil suction pipe bracket | 77175-0F010 · 77175-52020 |
| 77179A | fuel tank breather gasket | 77179-33010 |
| 77191 | Fuel tank ground wire | 77191-02020 |
| 77201E | Fuel tank filling pipe sub-assembly | 77210-0F010 · 77210-0F011 · 77210-0F012 · 77210-0F020 · 77210-0F021 · 77210-0F022 |
| 77204F | Fuel tank filling pipe upper bracket sub-assembly | 77204-0F010 |
| 77209D | Fuel tank main pipe sub-assembly | 77209-0F010 |
| 77213B | Fuel tank to filler pipe hose | 77213-64010 |
| 77241W | Pipe joint clip | 77241-0F010 |
| 77251B | main fuel pipe | 77251-0F010 · 77251-0F020 |
| 77255D | fuel return pipe | 77255-0F010 |
| 77259A | Fuel hose (for breather pipe) | 77259-64010 · 77259-64020 |
| 77261D | Fuel tank to charcoal canister pipe | 77261-0F010 |
| 77261E | No. 1 fuel hose (for fuel tank to canister pipe) | 95337-06014 |
| 77277A | No. 1 fuel hose (for No. 1 return pipe) | 23274-26030 |
| 77285F | No. 1 fuel pipe clamp | 77289-68020 · 77298-68010 · 77298-68020 · 77298-68030 |
| 77289B | No. 3 fuel pipe clamp | 77289-68010 |
| 77291A | Fuel tank filler pipe cover | 77291-0F010 |
| 77306 | Fuel filler cap lock opening lever sub-assembly | 77306-0F010 · 77306-0F020 |
| 77310A | Fuel tank cap assembly | 77300-28010 · 77300-60010 |
| 77316 | fuel tank cap gasket | 77316-16010 |
| 77340A | Fuel shut-off valve assembly with fuel pipe | 77340-0F010 |
| 77350 | Fuel filler cap assembly | 77350-64010 |
| 77366 | Fuel filler cap hinge spring | 77360-21010 |
| 77377 | Fuel filler cap lock retainer | 77377-02020 |
| 77391 | fuel inlet ring | 77391-12020 |
| 77391A | fuel inlet ring | 77391-63010 |
| 77601A | No. 1 fuel tank strap sub-assembly | 77601-0F010 |
| 77602B | No. 1 fuel tank left side band sub-assembly | 77602-0F010 |
| 77641A | No. 1 fuel tank protective shell | 77641-0F010 |
| 77652 | No. 1 fuel tank liner | 77651-20090 |
| 77681 | Fuel tank right side strap seat | 77681-02030 |
| 77682 | Fuel tank left side strap seat | 77682-0F010 |
| 77740 | Carbon canister assembly | 77740-05020 · 77740-05021 |
| 77751 | Carbon canister base bracket | 77750-05020 |
| 77752 | Carbon canister base bracket | 77752-05020 |
| 77785 | fuel pump wiring harness | 77785-0F010 |
