Toyota COROLLA 挡泥板和扰流板 — Figure 7601

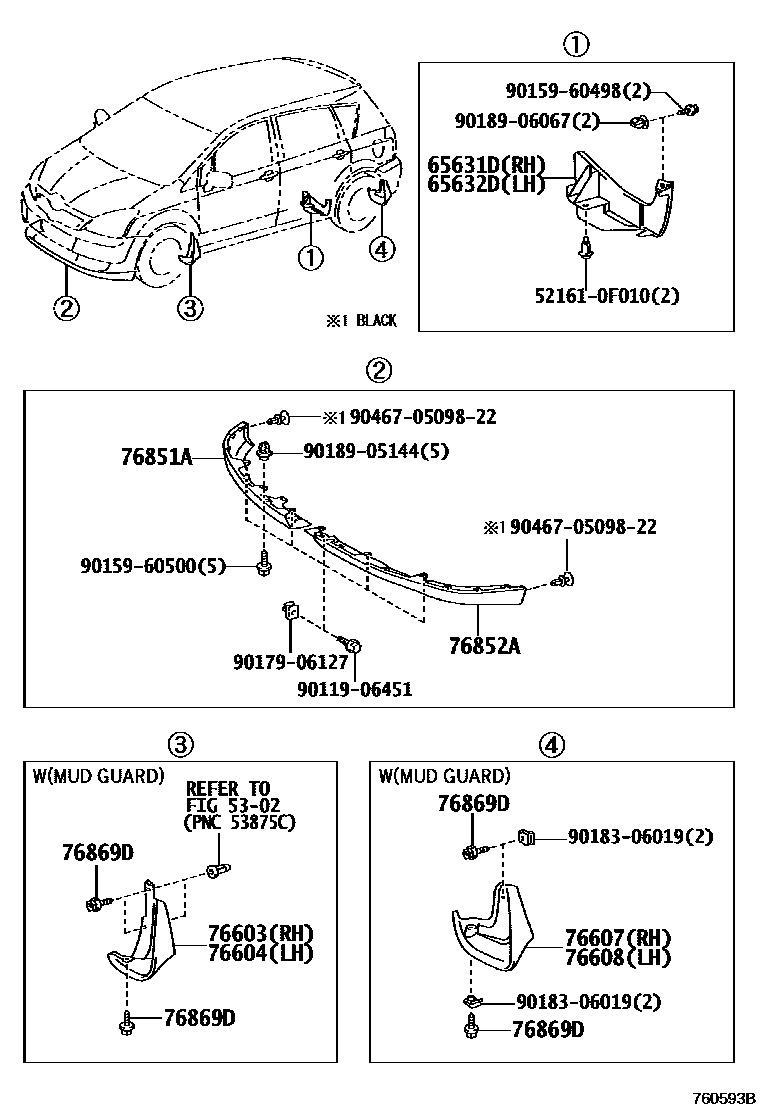

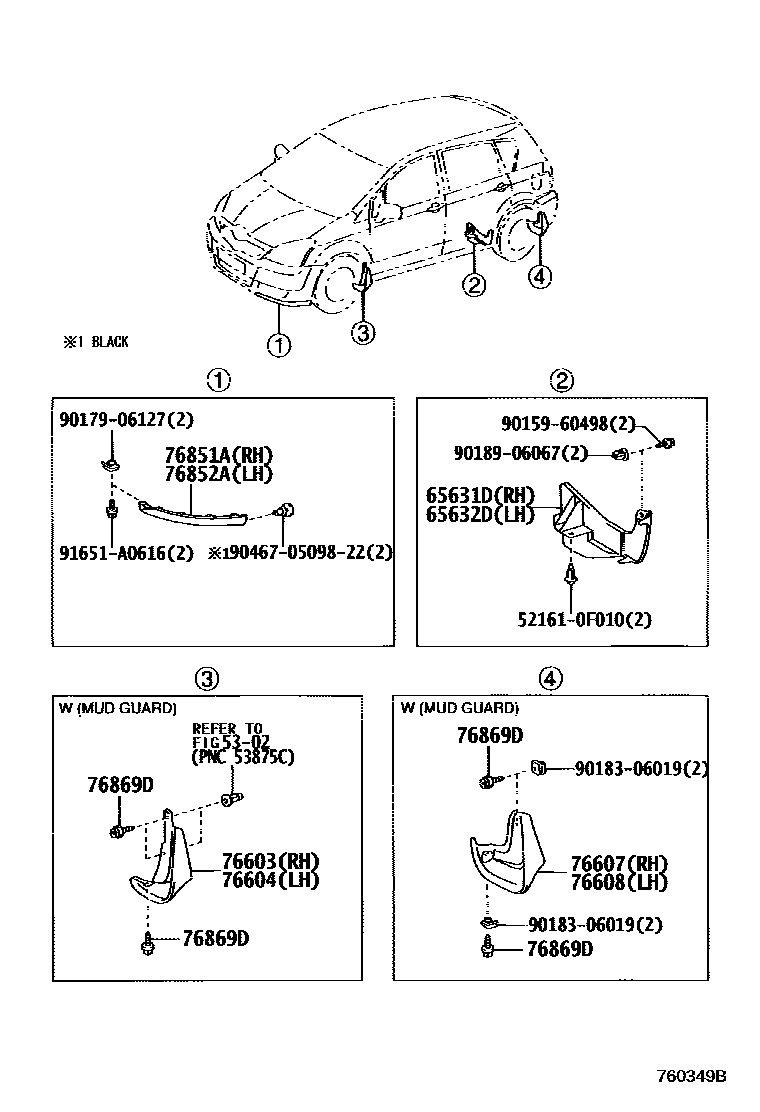

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 65631D | Right rear wheel house front panel | 65631-0F010 |
| 65632D | Left rear wheel house front panel | 65632-0F010 |
| 76603 | Right front fender fender sub-assembly | 76621-0F010 |
| 76604 | Left front fender fender sub-assembly | 76622-0F010 |
| 76607 | Right rear side fender sub-assembly | 76625-0F010 |
| 76608 | Left rear side fender sub-assembly | 76626-0F010 |
| 76851A | Right front spoiler cover | 76851-0F901 · 76851-0F902 |
| 76852A | Left front spoiler cover | 76852-0F901 · 76852-0F902 |
| 76869D | VIS, NO.2 | 90159-60498 |
