Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 7 PNC and OE references.

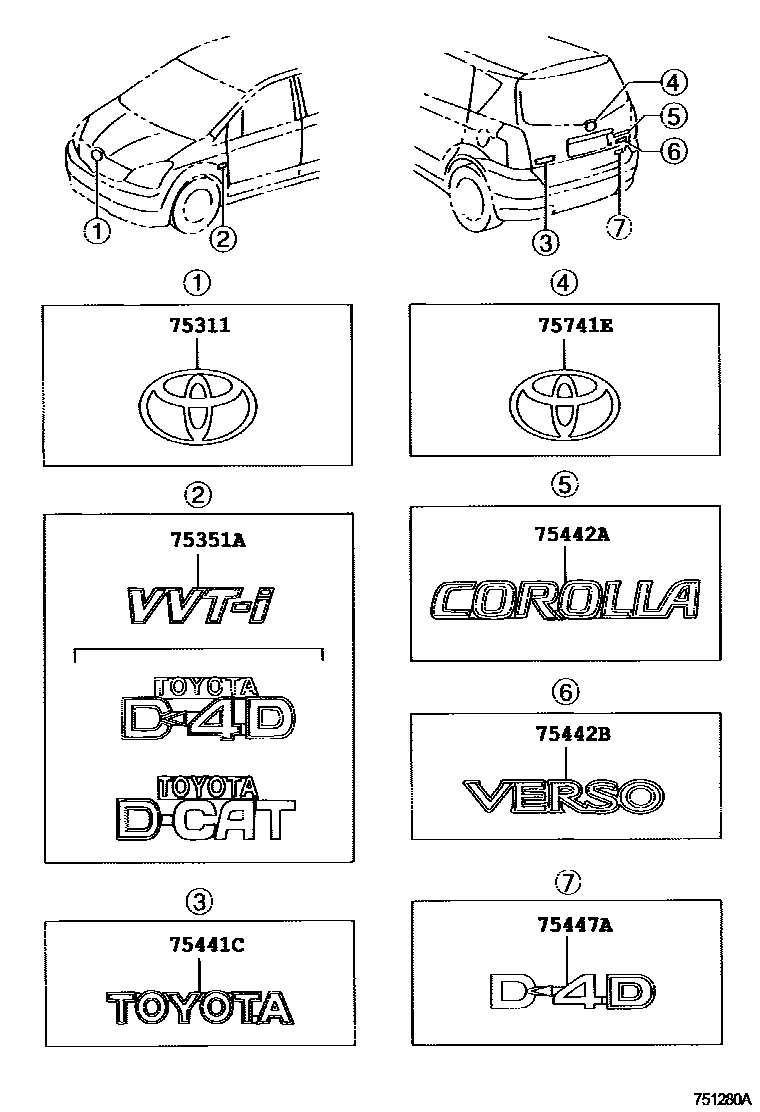

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 751280A
丰田徽标和铭牌(车外和车内) — 751280A (200402 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate75301-0F010 · 75311-0F010
75351AFront fender label75351-12160 · 75351-12170 · 75351-20060
75441CBack door nameplate75441-02040
75442ANo. 2 nameplate on back door75442-02060
75442BNo. 2 nameplate on back door75442-13320
75447ANo. 7 nameplate on back door75447-02010
75741Elogo90975-W2001
