Toyota COROLLA 警示铭牌(车外和车内) — Figure 7403

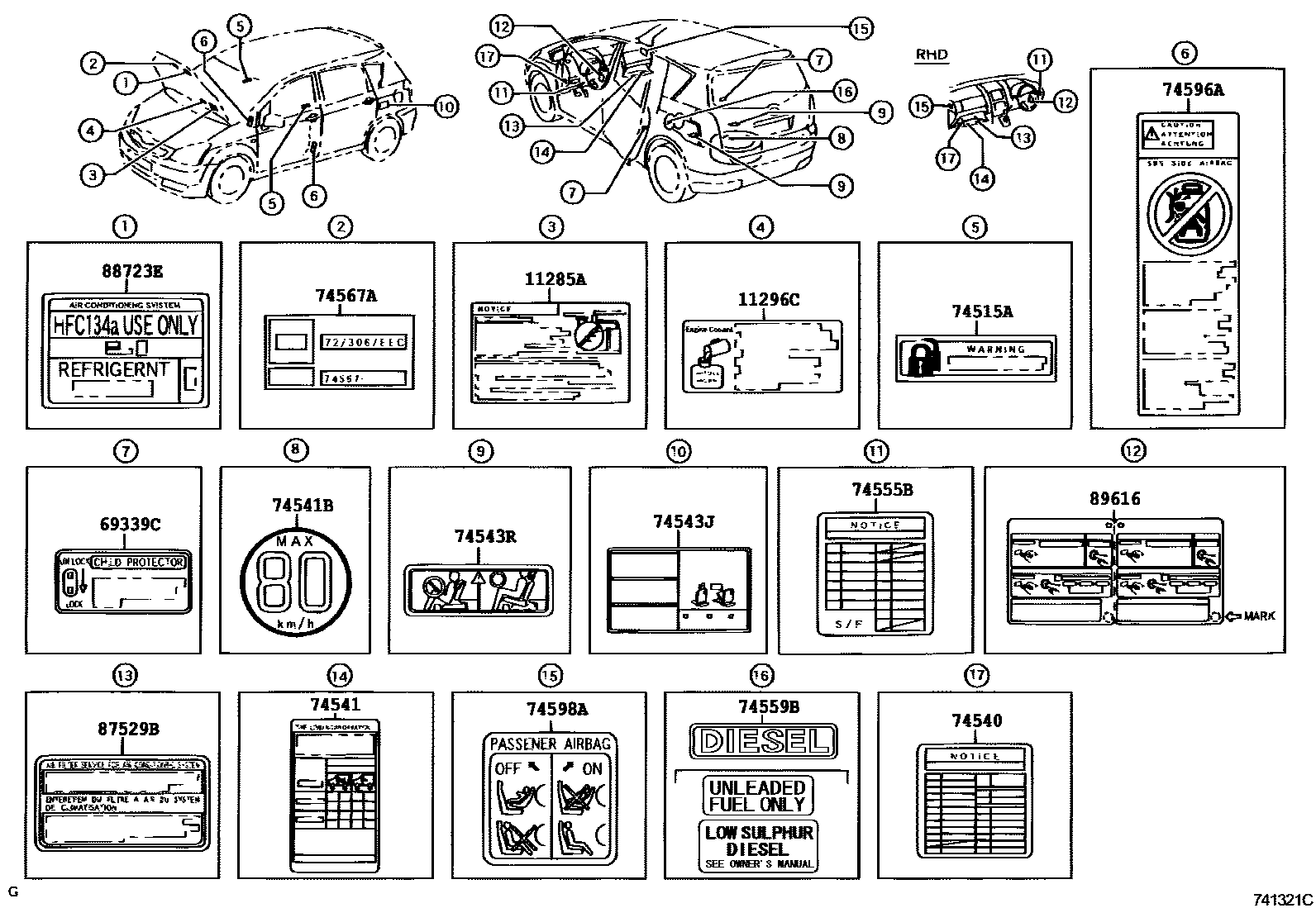

Toyota COROLLA EPC diagram 7403, 警示铭牌(车外和车内), with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11285A | Coolant System Caution Labels | 11285-0G010 · 11285-0R010 |
| 11296C | Engine maintenance information label | 11296-27020 |
| 69339C | Child Restraint Information Label | 69339-02030 |
| 74515A | Anti-theft warning nameplate | 74515-0D010 |
| 74540 | Fuse box warning nameplate | 82683-0F010 |
| 74541 | tire pressure warning plate | 42661-0F020 · 42661-0F030 · 42661-0F040 · 42661-0F050 |
| 74541B | Small spare tire warning plate | 42668-0D010 |
| 74543J | rear seat warning label | 74543-0F020 |
| 74543R | rear seat warning label | 74543-0F030 |
| 74555B | Fuse box warning nameplate | 82683-0F020 |
| 74559B | fuel information label | 74559-02010 · 74559-05010 · 74559-20120 |
| 74567A | E.C.E approval number plate | 74567-20261 · 74567-25041 · 74567-26250 |
| 74596A | Side air bag warning label | 74596-02040 · 74596-12020 |
| 74598A | Passenger air bag warning label | 74598-0F010 |
| 87529B | Cabin filter information label | 87529-0D010 |
| 88723E | Cooler maintenance warning label | 88733-20020 |
| 89616 | Button start information label | 89616-64010 · 89616-64020 · 89616-64030 · 89616-64040 |
