Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 5 PNC and OE references.

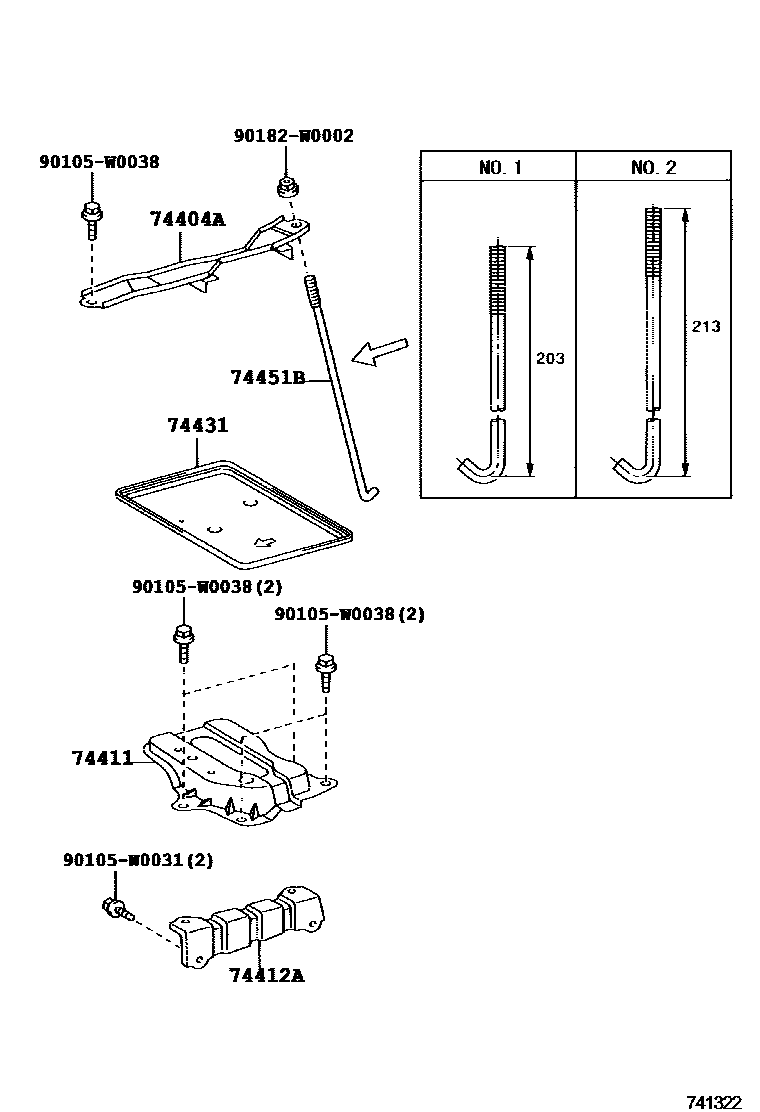

Toyota COROLLA battery holder EPC diagram — 741322A
battery holder — 741322A (200402 – 999999)

PNC and OE references

PNCPart nameOE numbers
74404ABattery clip sub-assembly74404-0F010 · 74404-0F020 · 74404-0F030 · 74404-0F040
74411battery holder74411-02060 · 74411-0F010 · 74411-12140
74412ANo. 2 battery holder74412-02050 · 74412-12020
74431battery tray74431-02070 · 74431-02081 · 74431-0F010
74451BBattery clamp bolt74451-02010 · 74451-02012 · 74451-12130 · 74451-12140
