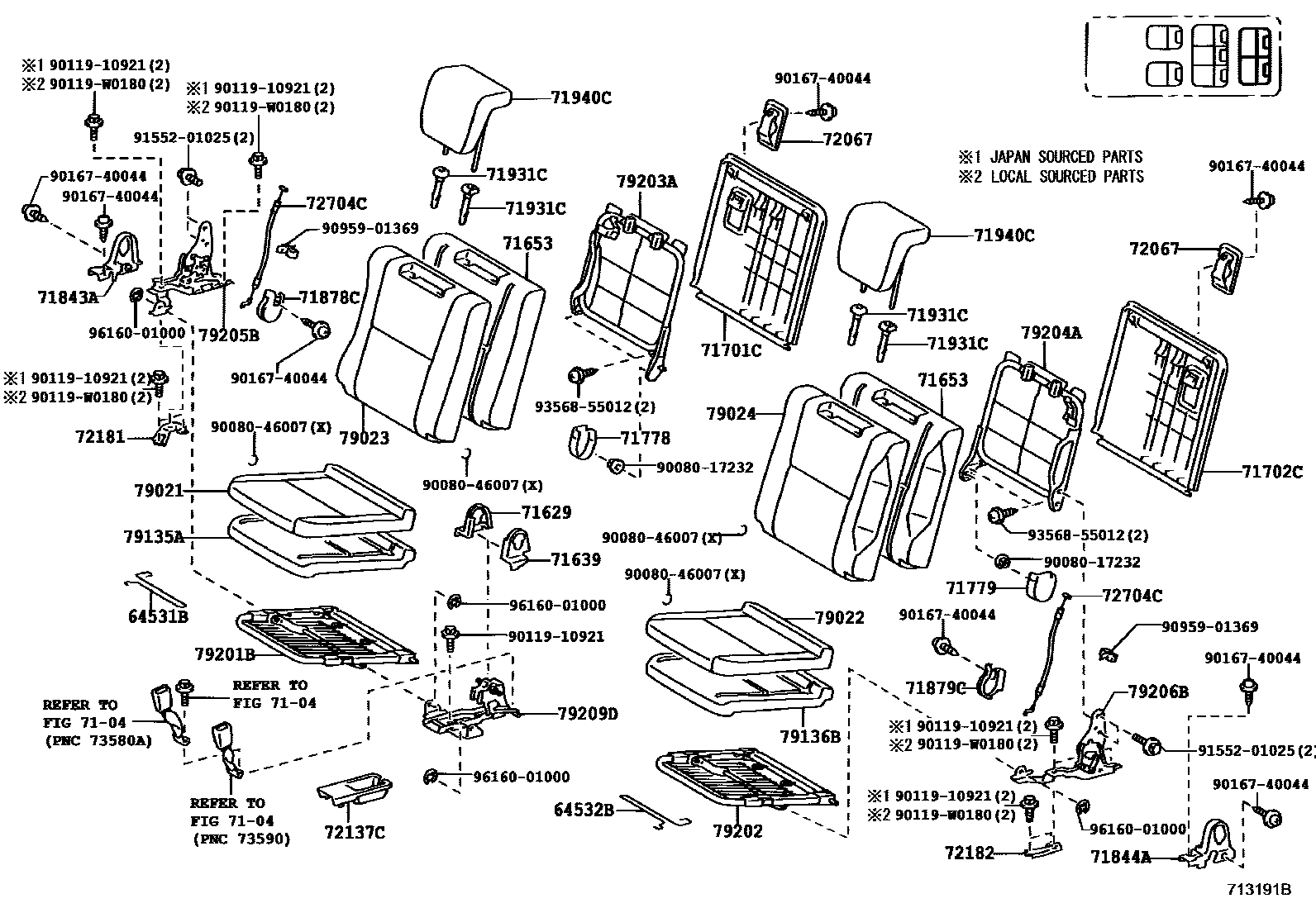

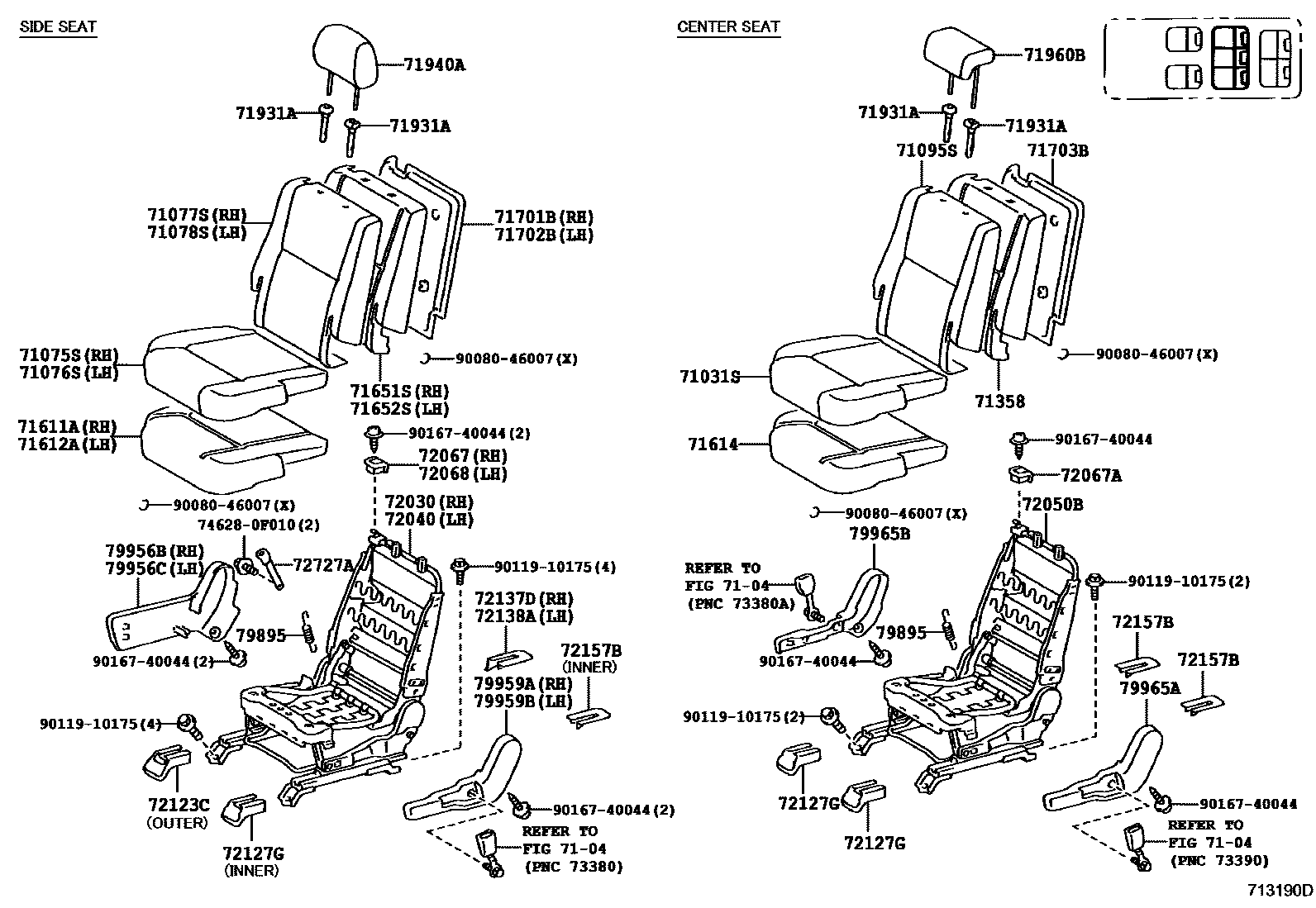

Toyota COROLLA 后排座椅和座椅滑轨 — Figure 7102
Toyota COROLLA EPC diagram 7102, 后排座椅和座椅滑轨, with 2 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64531B | Right hinge torsion bar | 64531-0F010 |
| 64532B | Left hinge torsion bar | 64532-0F010 |
| 71358 | Center seat back cushion | 71365-0F010 |
| 71611A | Rear right seat cushion | 71611-0F010 |
| 71612A | Rear left seat cushion | 71612-0F010 |
| 71614 | Rear center seat cushion | 71614-0F010 |
| 71651S | Rear right seat back cushion (for split seats) | 71651-0F010 |
| 71652S | Rear left seat back cushion (for split seats) | 71652-0F010 |
| 71653 | Rear seat 2 seat back cushion | 71653-0F010 · 71653-0F020 |
| 72030 | Rear No. 1 seat adjuster assembly | 72030-0F010 · 72030-0F011 · 72030-0F012 |
| 72040 | Rear No. 2 seat adjuster assembly | 72030-0F020 · 72030-0F021 · 72030-0F022 |
| 72050B | Rear center seat adjuster No. 1 | 72030-0F030 · 72030-0F031 · 72030-0F032 |
| 72181 | Rear right seat outer slide rail front lower rail ring | 72181-0F010 |
| 72182 | Rear left seat outer slide rail front lower rail ring | 72182-0F010 |
| 72704C | Rear No. 2 seat backrest inclination control cable | 72704-0F010 |
| 79135A | Right seat No. 1 seat cushion cushion | 71611-0F020 |
| 79136B | Seat cushion, seat No. 1, left | 71612-0F020 |
| 79201B | Right No. 2 seat cushion frame sub-assembly | 79201-0F010 |
| 79202 | Left No. 2 seat cushion frame sub-assembly | 79202-0F010 |
| 79203A | Right No. 2 seat back frame sub-assembly | 79203-0F010 |
| 79204A | Left No. 2 seat back frame sub-assembly | 79204-0F010 |
| 79205B | Right No. 2 seat support sub-assembly | 79205-0F010 |
| 79206B | Left No. 2 seat support sub-assembly | 79206-0F010 |
| 79209D | No. 2 seat inner support sub-assembly | 79209-0F010 |
| 79895 | Rear No. 1 seat back spring | 79895-0F030 |
