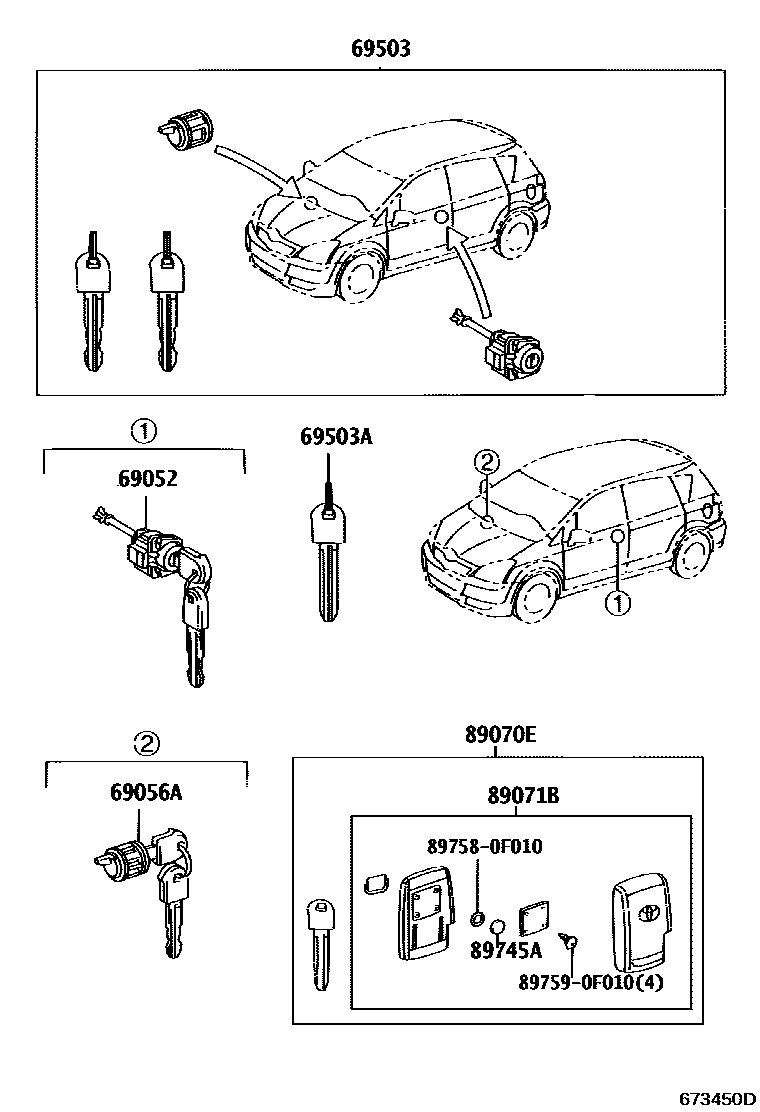

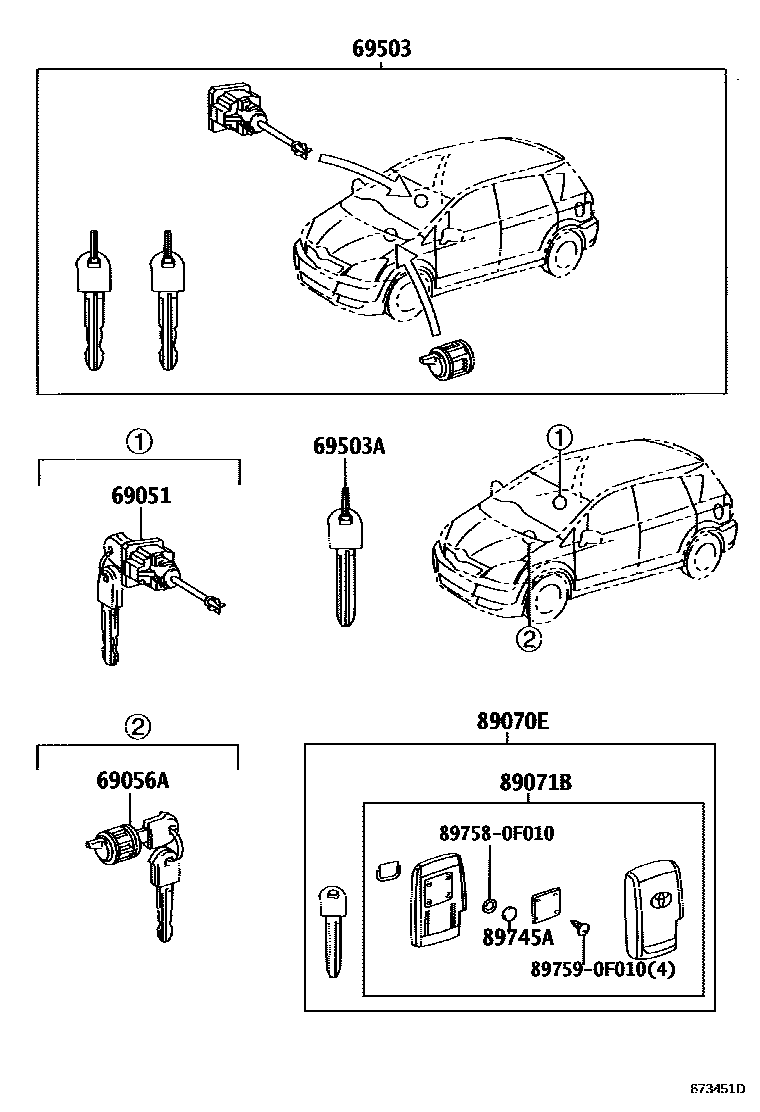

Toyota COROLLA 锁芯组件 — Figure 6712
Toyota COROLLA EPC diagram 6712, 锁芯组件, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-0F010 |
| 69052 | Left door lock cylinder and key assembly | 69052-0F010 |
| 69056A | Glove box lock cylinder and key assembly | 69056-0F010 |
| 69503 | Door lock cylinder components | 69005-0F010 · 69005-0F020 |
| 69503A | external tooth key | 69515-47010 |
| 89070E | Remote key assembly | 89070-0F010 · 89070-0F020 · 89070-0F021 · 89070-0F022 |
| 89071B | Remote key sub-assembly module assembly | 89071-0F030 · 89071-0F040 · 89071-0F041 · 89071-0F042 |
| 89745A | Transmitter battery | 89745-0F010 |
