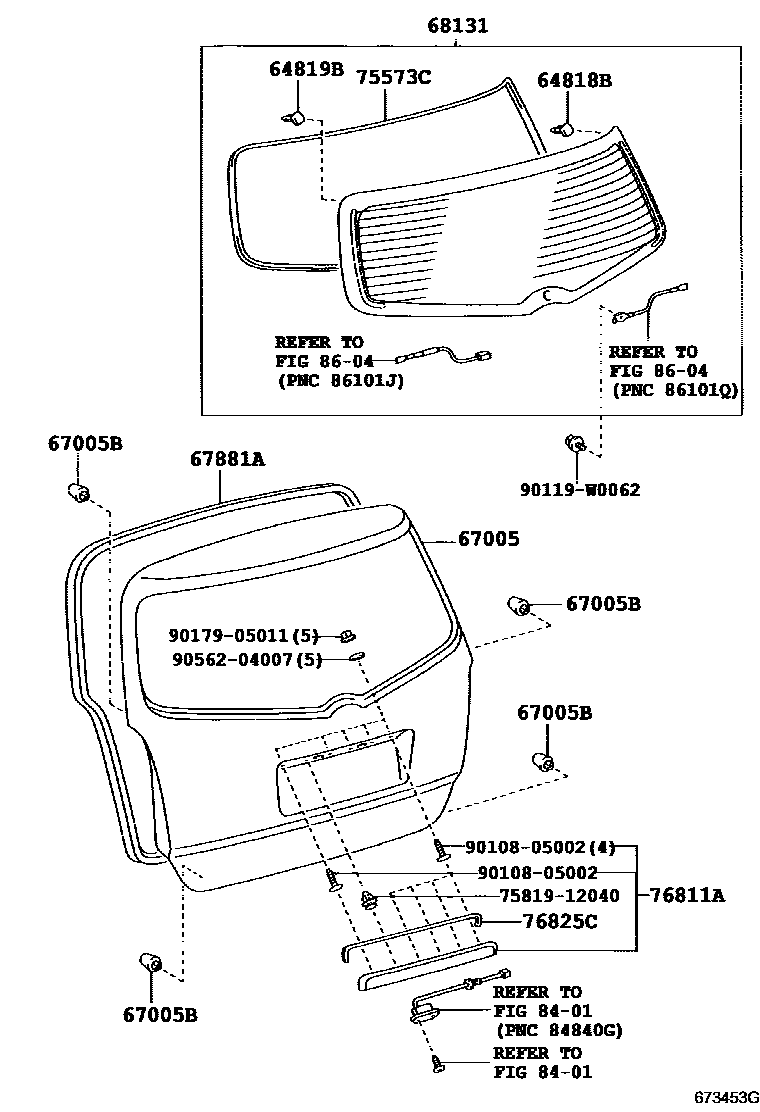

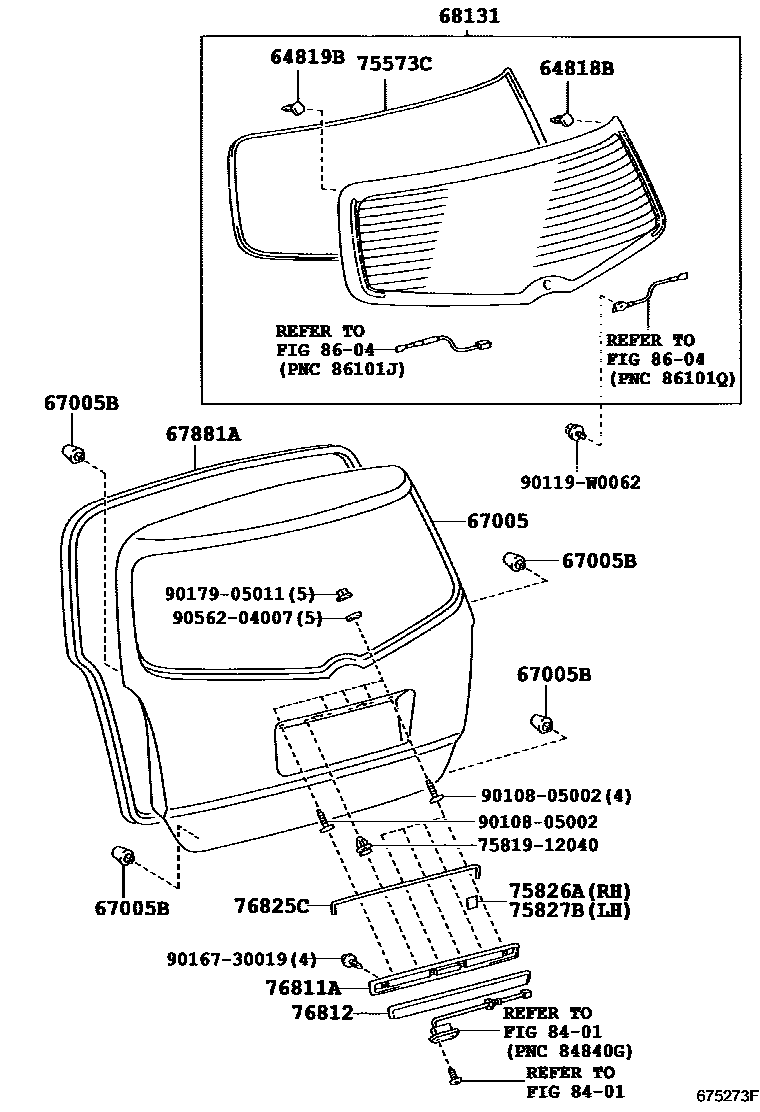

Toyota COROLLA 背门板和背门玻璃 — Figure 6708
Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64818B | No. 1 back door glass spacer | 64818-64010 |
| 64819B | No. 2 back window glass spacer | 64819-64010 |
| 67005 | Rear door panel sub-assembly | 67005-0F010 · 67005-0F011 · 67005-0F020 · 67005-0F021 |
| 67005B | Cushion pad (for back door panel) | 90541-09075 · 90541-09116 |
| 67881A | Back door seal | 67881-0F010 |
| 68131 | back door glass | 68105-0F010 · 68105-0F020 · 68105-0F030 · 68105-0F040 |
| 75573C | Protective strip for rear window | 75573-64010 |
| 75826A | Back door right outer protective strip pad | 75827-0F010 |
| 75827B | Back door left outer protective strip pad | 75828-0F010 |
| 76811A | Rear door exterior decorative strip | 76811-0F901 · 76811-0F902 · 76811-0F903 · 76811-0F904 |
| 76812 | Lower trim strip outside rear door | 76812-0F010 |
| 76825C | Rear door exterior decorative strip protective cover | 76825-0F020 · 76825-64010 |
