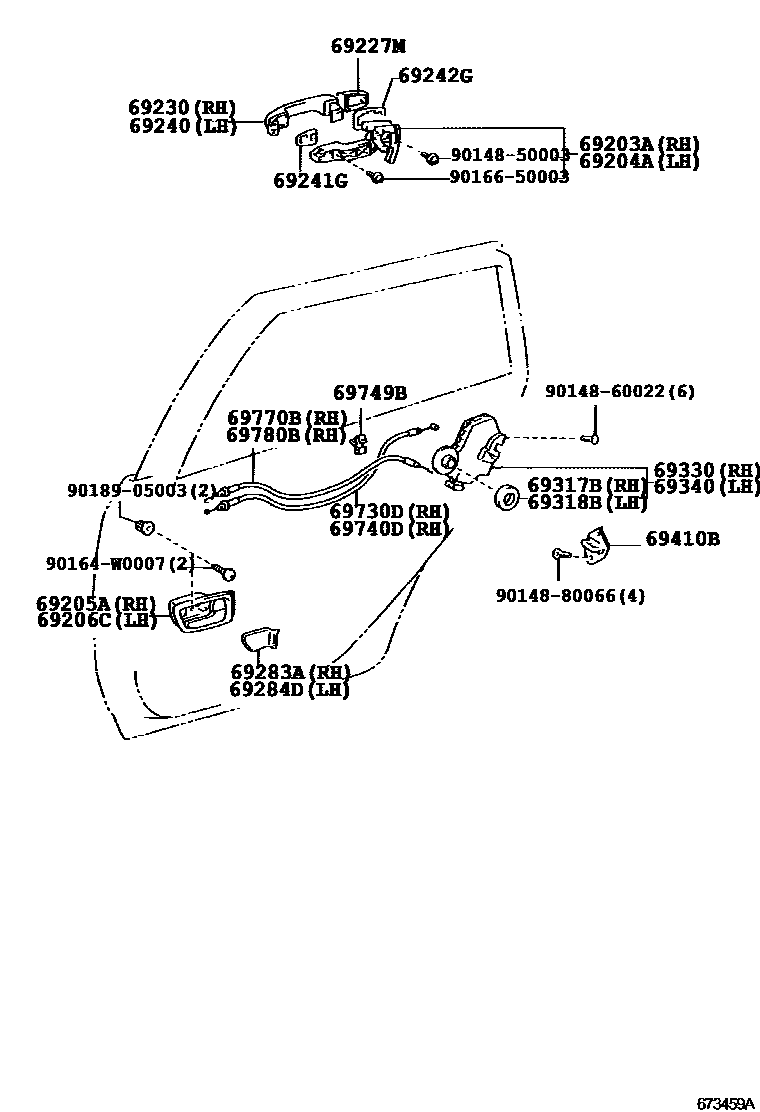

Toyota COROLLA 后门锁和后门把手 — Figure 6706
Toyota COROLLA EPC diagram 6706, 后门锁和后门把手, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69203A | Right rear door outer handle frame sub-assembly | 69203-02060 · 69203-02090 |
| 69204A | Left rear door outer handle frame sub-assembly | 69204-02060 · 69204-02090 |
| 69227M | Rear door outer handle cover | 69227-02901 |
| 69230 | Right rear door outer handle assembly | 69211-05903 |
| 69240 | Left rear door outer handle assembly | 69211-05903 |
| 69241G | Rear door front exterior handle pad | 69241-02040 |
| 69242G | Rear door rear outer handle pad | 69242-02040 · 69242-52020 |
| 69317B | Right rear door keyhole seal | 69318-51010 |
| 69318B | Left rear door keyhole seal | 69318-51010 |
| 69330 | Right rear door door lock assembly | 69050-0F010 · 69050-0F011 · 69050-0F020 |
| 69340 | Left rear door lock assembly | 69060-0F010 · 69060-0F011 · 69060-0F020 |
| 69410B | Rear door lock plate assembly | 69410-33010 |
| 69730D | Right rear door lock remote control cable assembly | 69730-0F010 |
| 69740D | Left rear door lock remote control cable assembly | 69730-0F010 |
| 69749B | Rear door lock link clamp | 69749-32040 |
| 69770B | Right rear door inner lock cable assembly | 69770-0F010 |
| 69780B | Left rear door inner lock cable assembly | 69780-0F010 |
