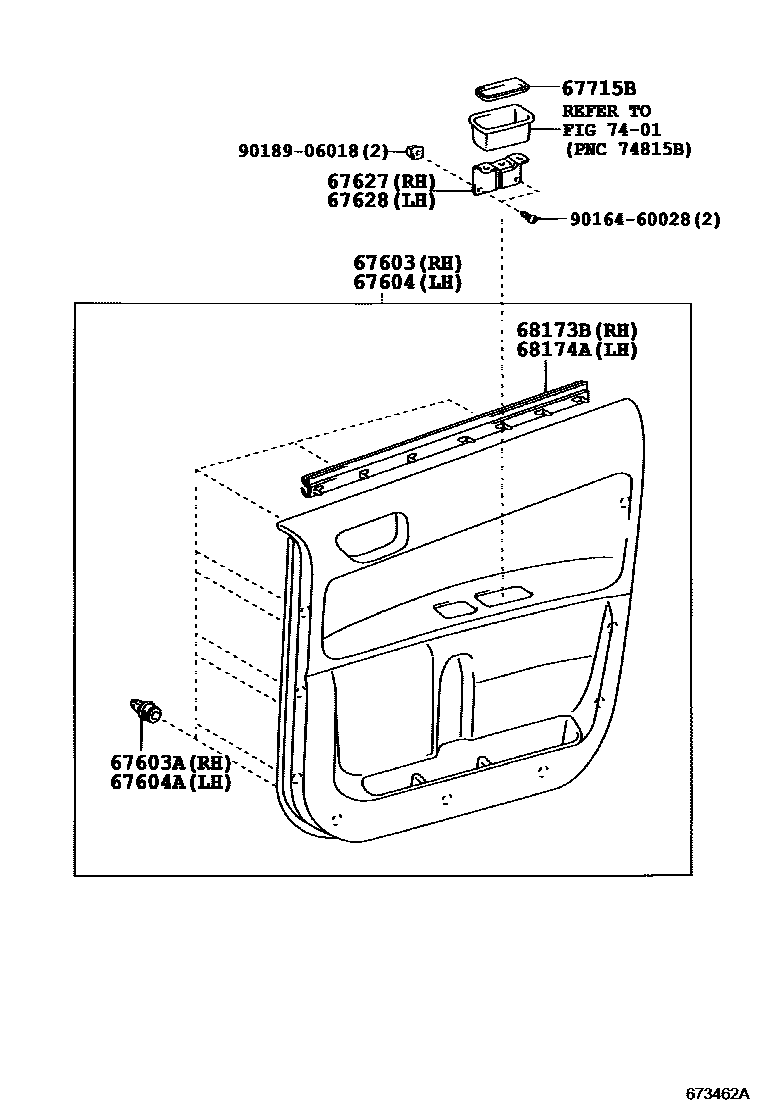

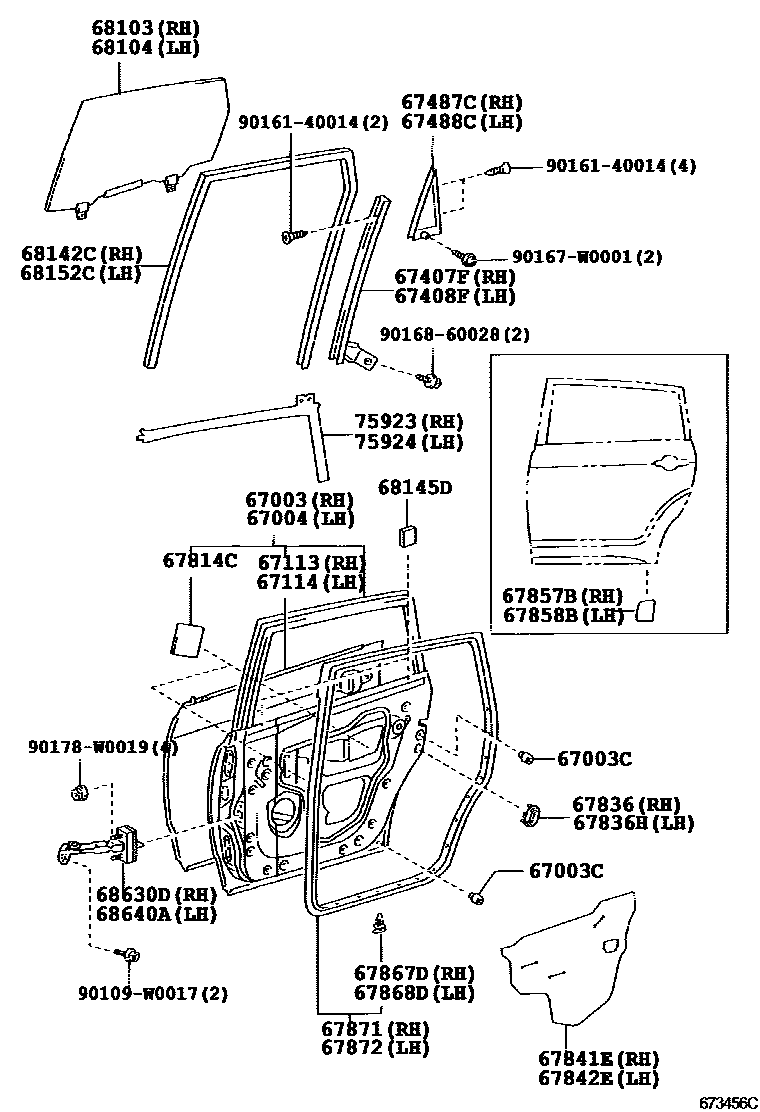

Toyota COROLLA 后门板和后门玻璃 — Figure 6705
Toyota COROLLA EPC diagram 6705, 后门板和后门玻璃, with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-0F010 |
| 67003C | Rear door panel cushion | 90541-09124 |
| 67004 | Left rear door panel sub-assembly | 67004-0F010 |
| 67113 | Right rear door outer panel | 67113-0F010 |
| 67114 | Left rear door outer panel | 67114-0F010 |
| 67407F | Right rear door window rear lower frame sub-assembly | 67407-0F010 |
| 67408F | Left rear door window rear lower frame sub-assembly | 67408-0F010 |
| 67487C | Right rear door rear rail seal | 67487-0F010 · 67487-0F011 |
| 67488C | Left rear door rear rail seal | 67488-0F010 · 67488-0F011 |
| 67603A | Fixings (for rear door trim) | 90467-10161 · 90467-W0005 |
| 67604A | Left sliding door upper decorative panel assembly | 90467-10161 · 90467-W0005 |
| 67627 | Right rear door trim panel bracket | 67625-0F010 |
| 67628 | Left rear door trim panel bracket | 67625-0F010 |
| 67715B | Rear door decorative mat | 67715-0F010 |
| 67814C | door guard seals | 67817-47010 |
| 67836 | Right rear door lock child restraint cover | 67836-12040 |
| 67836H | Left rear door lock child restraint cover | 67836-12040 |
| 67841E | Right rear door access hole cover | 67841-0F010 |
| 67842E | Left rear door access hole cover | 67842-0F010 |
| 67857B | Right rear door panel protector | 67857-0F010 |
| 67858B | Left rear door panel protector | 67858-0F010 |
| 67867D | Right rear door seal strip fixing | 67868-02020 |
| 67868D | Left rear door seal strip fixing | 67868-02020 |
| 67871 | Right rear door sealing strip | 67871-0F010 |
| 67872 | Left rear door sealing strip | 67872-0F010 |
| 68103 | Right rear door glass sub-assembly | 68103-0F010 · 68103-0F020 |
| 68104 | Left rear door glass sub-assembly | 68104-0F010 · 68104-0F020 |
| 68142C | Right rear door glass lift slot | 68142-0F010 |
| 68145D | Rear door window cushion | 69759-12110 |
| 68152C | Left rear door glass lift slot | 68152-0F010 |
| 68173B | Right rear door glass inner sealing strip | 68173-0F010 |
| 68174A | Left rear door glass inner sealing strip | 68174-0F010 |
| 68630D | Right rear door opening limiter assembly | 68630-64010 |
| 68640A | Left rear door opening limiter assembly | 68640-64010 |
| 75923 | No. 2 right side light-shielding film | 75923-0F010 |
| 75924 | No. 2 left shading film | 75924-0F010 |
