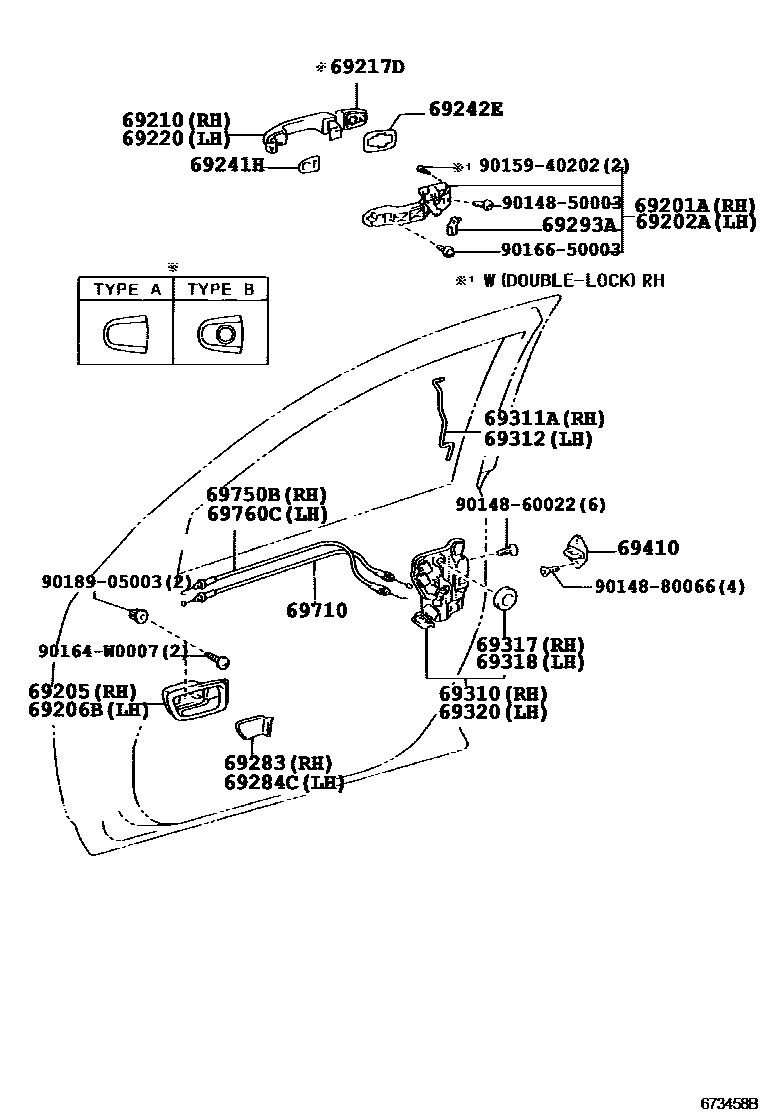

Toyota COROLLA 前门锁和车门把手 — Figure 6703
Toyota COROLLA EPC diagram 6703, 前门锁和车门把手, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69201A | Right front door outer handle frame sub-assembly | 69201-02060 · 69201-05060 · 69201-0F010 |
| 69202A | Left front door outer handle frame sub-assembly | 69202-02040 · 69202-05020 |
| 69210 | Right front door outer handle assembly | 69211-05903 |
| 69217D | Front door outer handle cover | 69217-02902 · 69217-02903 |
| 69220 | Left front door outer handle assembly | 69211-05903 |
| 69241H | Front door exterior handle pad | 69241-02040 |
| 69242E | Front door rear outer handle pad | 69242-02040 · 69242-52020 |
| 69293A | Front door outer handle buckle | 69293-33010 · 69293-33020 |
| 69310 | Right front door lock assembly | 69030-02141 · 69030-02142 · 69030-02161 · 69030-02162 · 69030-02171 |
| 69311A | Right front door lock opening lever | 69311-0F010 |
| 69312 | Left front door lock opening lever | 69312-0F010 |
| 69317 | Right front door keyhole seal | 69318-51010 |
| 69318 | Left front door keyhole seal | 69318-51010 |
| 69320 | Left front door lock assembly | 69040-02141 · 69040-02142 · 69040-02151 · 69040-02152 · 69040-02161 |
| 69410 | Front door lock plate assembly | 69410-33010 |
| 69710 | Right front door opening control linkage assembly | 69710-0F010 |
| 69750B | Right front door inner locking link assembly | 69750-0F010 |
| 69760C | Left front door inner lock cable assembly | 69760-0F010 |
