Toyota COROLLA 前门板和前门玻璃 — Figure 6701

Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 2 images and 35 PNC and OE references.

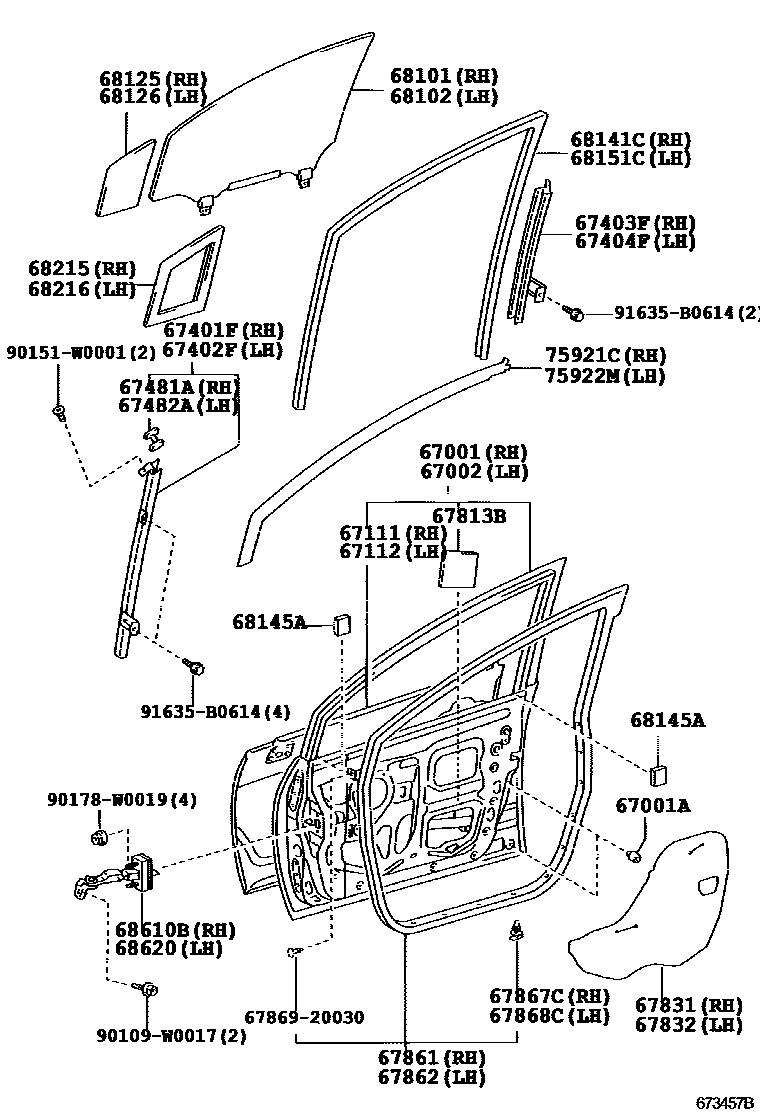

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 673457B
前门板和前门玻璃 — 673457B (200402 – 999999)

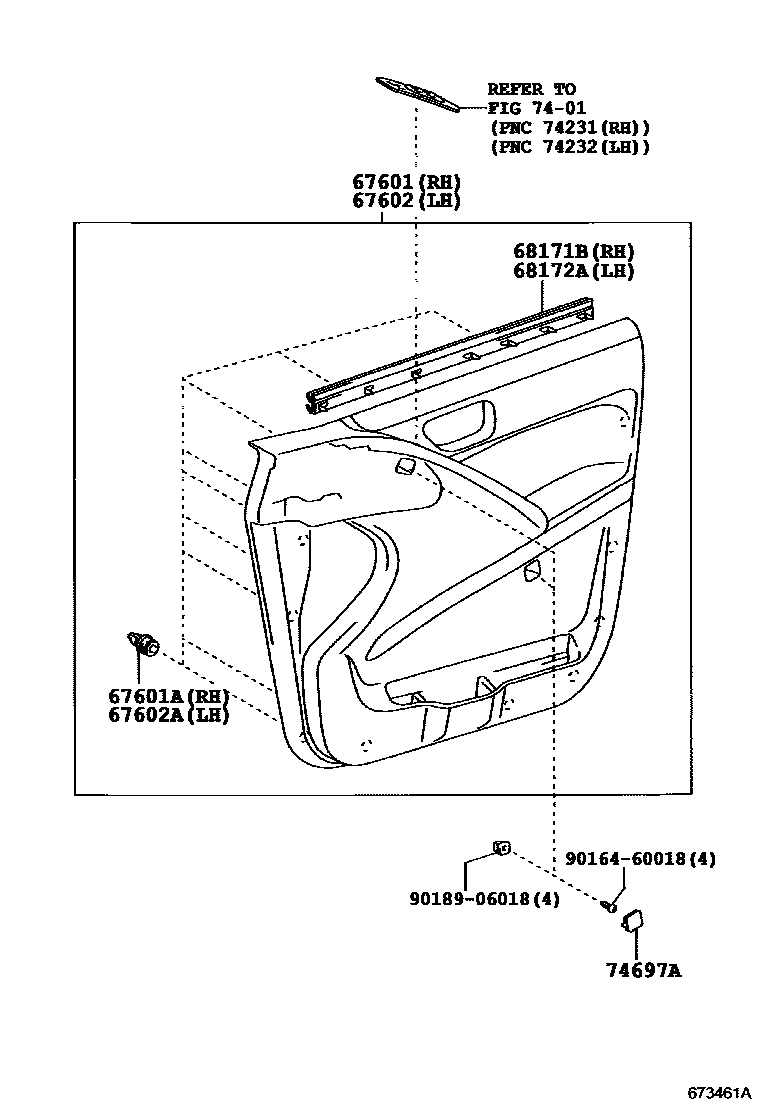

Toyota COROLLA 前门板和前门玻璃 EPC diagram — 673461A
前门板和前门玻璃 — 673461A (200402 – 999999)

PNC and OE references

PNCPart nameOE numbers
67001Right front door panel sub-assembly67001-0F010 · 67001-0F011
67001AFront door panel cushion90541-09116
67002Left front door panel sub-assembly67002-0F010 · 67002-0F011
67111Outer right front door panel67111-0F010
67112Outer left front door panel67112-0F010
67401FRight front door front lower door frame sub-assembly67401-64011
67402FLeft front door front lower door frame sub-assembly67402-64011
67403FRight front door rear lower door frame sub-assembly67403-0F010
67404FLeft front door rear lower door frame sub-assembly67404-0F010
67481ARight front door front lower door frame seal67481-64011
67482ALeft front door front lower door frame seal67482-64011
67601AFixings (for front door trim)90467-10161 · 90467-W0005
67602ALeft door trim panel fixing90467-10161 · 90467-W0005
67813Bdoor guard seals67817-47010
67831Right front door access hole cover67831-0F010
67832Left front door access hole cover67832-0F010
67861Right front door seal67861-0F010
67862Left front door seal67862-0F010
67867CRight front door seal strip fixing67868-02020
67868CLeft front door seal strip fixing67868-02020
68101Right front door glass sub-assembly68101-0F010
68102Left front door glass sub-assembly68102-0F010
68125Right front door fixed window glass68125-0F010
68126Left front door fixed window glass68126-0F010
68141CRight front door glass lift channel68141-0F010
68145AFront door window cushion69759-12110
68151CLeft front door glass lift channel68151-0F010
68171BRight front door glass inner sealing strip68171-0F010
68172ALeft front door glass inner sealing strip68172-0F010
68215Right front door fixed window seal68215-0F010
68216Left front door fixed window seal68216-0F010
68610BRight front door opening limiter assembly68610-64010
68620Left front door opening limiter assembly68620-64010
75921CNo. 1 right side light-shielding film75921-0F010
75922MNo. 1 left shading film75922-0F010
