Toyota COROLLA 底板和底板装饰罩 — Figure 6404

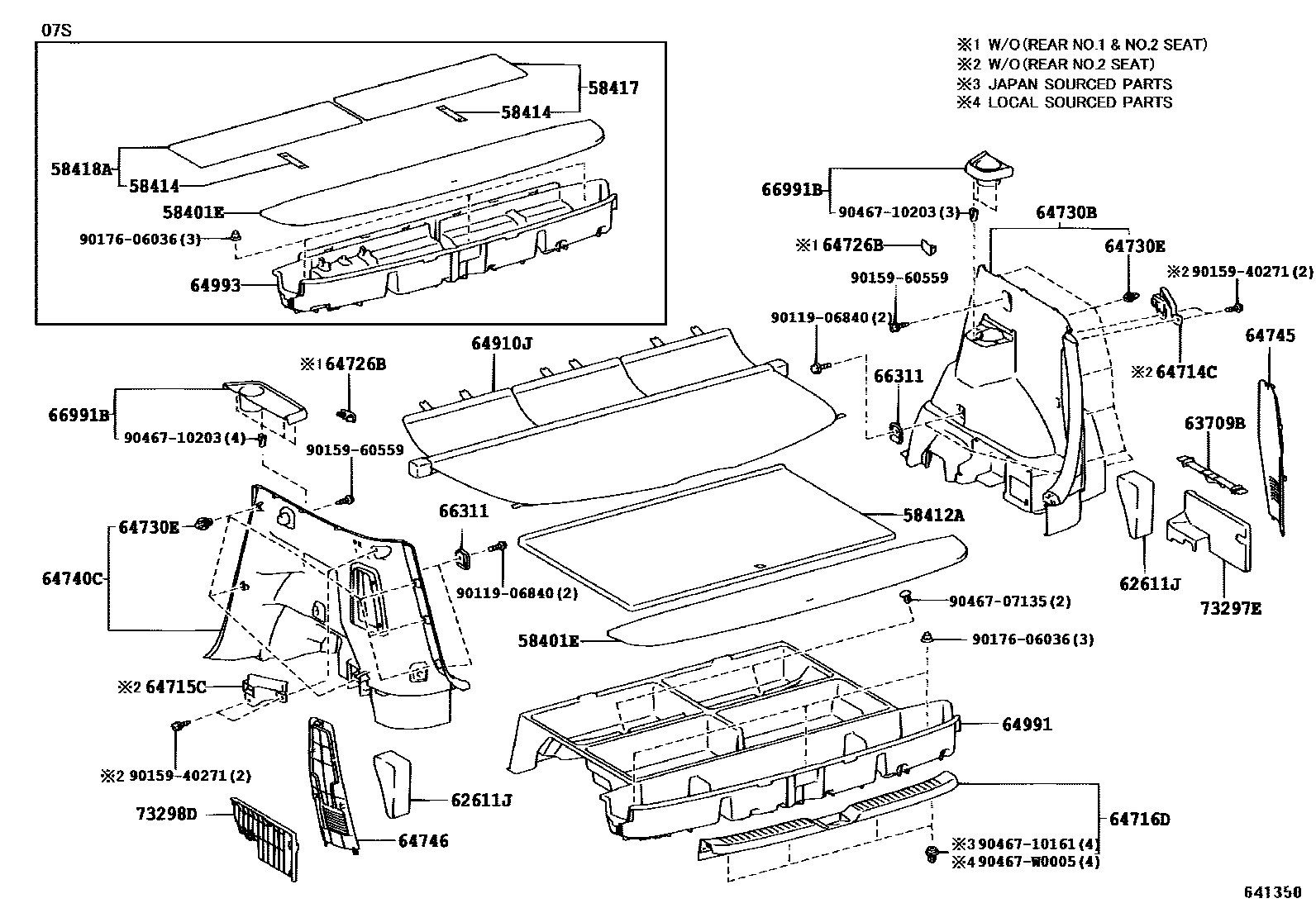

Toyota COROLLA EPC diagram 6404, 底板和底板装饰罩, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58414 | Base plate limiter | 58414-64010 |
| 62611J | Side wheel housing pads | 62611-0F010 |
| 64730E | Clip (for bottom panel side decorative panel) | 90467-10161 · 90467-W0005 |
| 64991 | Front floor box | 64991-0F010 |
| 64993 | Bottom floor box | 64993-0F010 |
| 66311 | rope hook | 66310-13010 |
