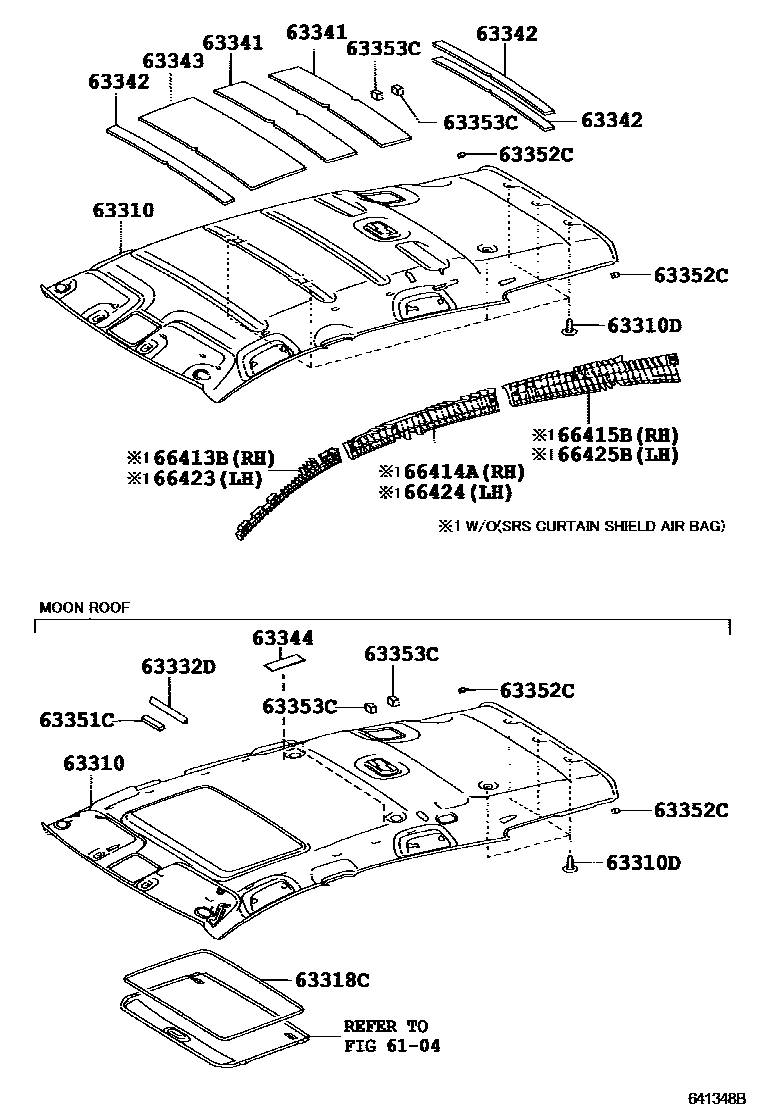

Toyota COROLLA 车顶内衬和消声垫 — Figure 6402
Toyota COROLLA EPC diagram 6402, 车顶内衬和消声垫, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63332D | Skylight lining block | 63332-0F020 |
| 63341 | No. 1 roof silencer mat | 63341-02040 |
| 63342 | No. 2 roof muffler pad | 63342-02070 |
| 63343 | No. 3 roof muffler pad | 63343-02030 |
| 63344 | No. 4 roof silencer mat | 63344-0F010 |
| 63351C | roof lining pads | 63351-0F020 |
| 63352C | Headlining end pads | 63352-0F010 |
| 63353C | Center roof lining lining | 63353-0F010 |
| 66413B | Right front longitudinal member spacer | 66413-0F010 |
| 66414A | Right rear longitudinal member spacer | 66414-0F010 |
| 66415B | No. 2 right rear longitudinal beam spacer | 66415-0F010 |
| 66423 | Left front longitudinal member spacer | 66423-0F010 |
| 66424 | Left rear longitudinal member spacer | 66424-0F010 |
| 66425B | No. 2 left rear longitudinal beam spacer | 66425-0F010 |
