Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

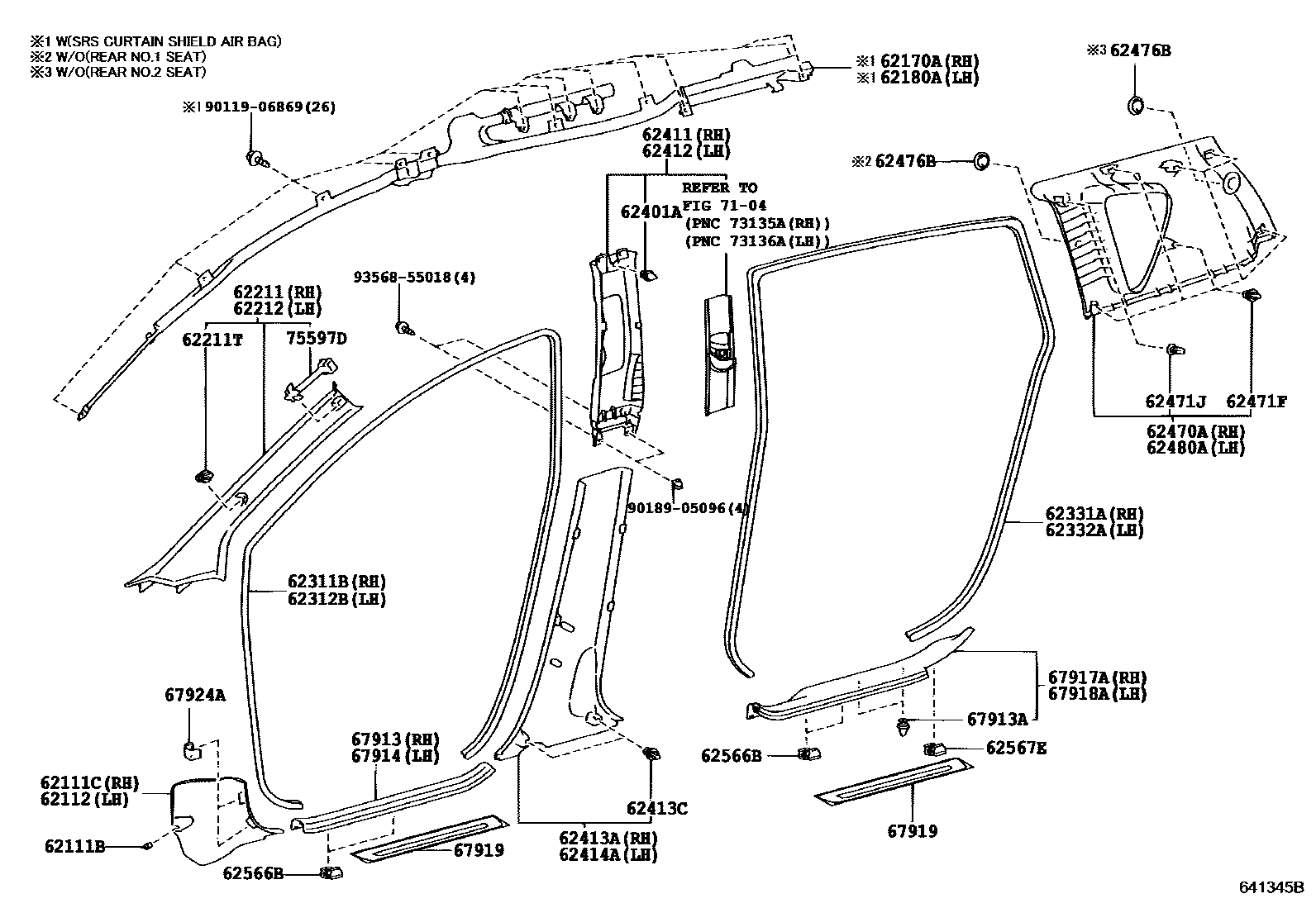

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 1 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62111B | Clip (for cowl side trim panel) | 90467-06191 |
| 62170A | Right curtain air bag assembly | 62170-0F010 |
| 62180A | Left curtain air bag assembly | 62180-0F010 |
| 62211T | Clip (for front pillar decorative panel) | 62217-13010 |
| 62401A | Clips (for decorative panels on center pillars) | 90467-10167 |
| 62413C | Clip (for the decorative panel under the center pillar) | 90467-10161 · 90467-W0005 |
| 62471F | Clip (for roof side inner upper trim panel) | 90467-10161 · 90467-W0005 |
| 62471J | Clips (for roof side trim panels) | 90950-08003 |
| 62566B | No. 1 door inner sill protection strip clip | 62566-32010 |
| 62567E | No. 2 door inner sill guard strip clip | 62567-33040 |
| 67913A | Clip (for wear plate) | 90467-10161 · 90467-W0005 |
| 67919 | Door wear plate decorative parts | 67919-64010 · 67919-64020 |
| 67924A | Door No. 2 wear plate clip | 67924-20090 |
| 75597D | Roof side trim clips | 75597-05010 · 75597-0F010 |
