Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

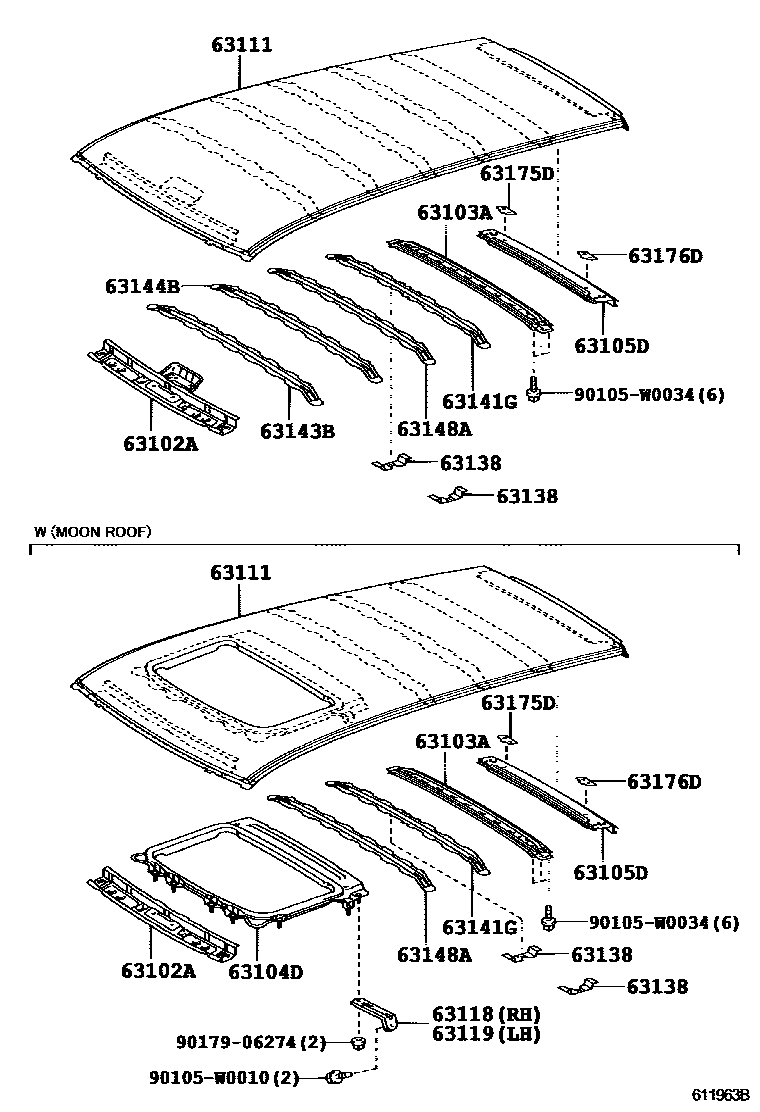

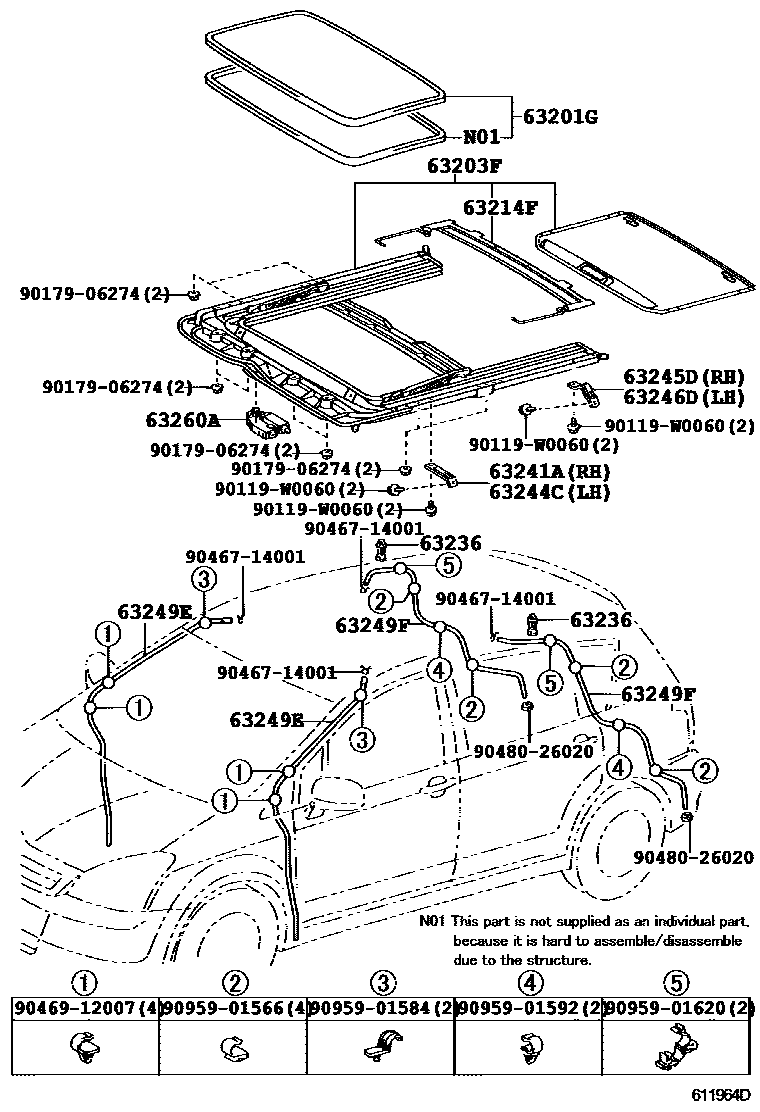

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 3 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102A | Windshield roof sub-assembly | 63102-0F010 · 63102-0F020 |
| 63103A | Roof panel reinforcement sub-assembly | 63103-0F010 |
| 63104D | No. 2 roof panel reinforcement sub-assembly | 63104-0F010 |
| 63105D | Rear window upper frame sub-assembly | 63105-0F010 |
| 63111 | roof panel | 63111-0F010 · 63111-0F020 · 63111-0F030 · 63111-0F040 |
| 63118 | Right roof panel bracket | 63118-0F010 |
| 63119 | Left roof panel bracket | 63119-0F010 |
| 63138 | No. 2 ceiling light bracket | 63138-12011 |
| 63141G | No. 1 roof panel reinforcement | 63141-0F010 |
| 63143B | No. 3 roof panel reinforcement | 63143-0F010 |
| 63144B | No. 4 roof panel reinforcement | 63144-0F010 |
| 63148A | No. 7 roof panel reinforcement | 63148-0F010 |
| 63175D | Back door right recessed hinge reinforcement | 63175-02030 |
| 63176D | Back door left recessed hinge reinforcement | 63176-02030 |
| 63185A | Right front roof rack bracket | 63185-0F010 |
| 63186A | Left front roof rack bracket | 63186-0F010 |
| 63187C | Right rear roof rack No. 1 bracket | 63187-0F010 |
| 63188B | Left rear roof rack No. 1 bracket | 63188-0F010 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-0F010 |
| 63214F | Roof rear drain channel | 63214-02040 |
| 63236 | Sliding skylight or removable skylight drain hose clamp | 63236-0F010 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-0F010 |
| 63244C | Sliding sunroof frame left center mounting bracket | 63241-0F010 |
| 63245D | Sliding sunroof frame right rear mounting bracket | 63245-0F010 |
| 63246D | Sliding sunroof frame left rear mounting bracket | 63245-0F010 |
| 63249E | Sliding skylight drain hose | 63249-0F010 |
| 63249F | Sliding skylight drain hose | 63249-0F020 |
| 63260A | Sliding sunroof driving gear sub-assembly | 63260-05020 |
| 63486A | Right front roof rack support foot cushion | 63486-0F010 · 63486-64010 |
| 63487A | Left front roof rack support foot cushion | 63487-0F010 · 63487-64010 |
| 63488 | Right rear roof rack foot cushion pad | 63488-0F010 · 63488-64010 |
| 63489 | Left rear roof rack support foot cushion pad | 63489-0F010 · 63489-64010 |
