Toyota COROLLA 侧梁 — Figure 6101

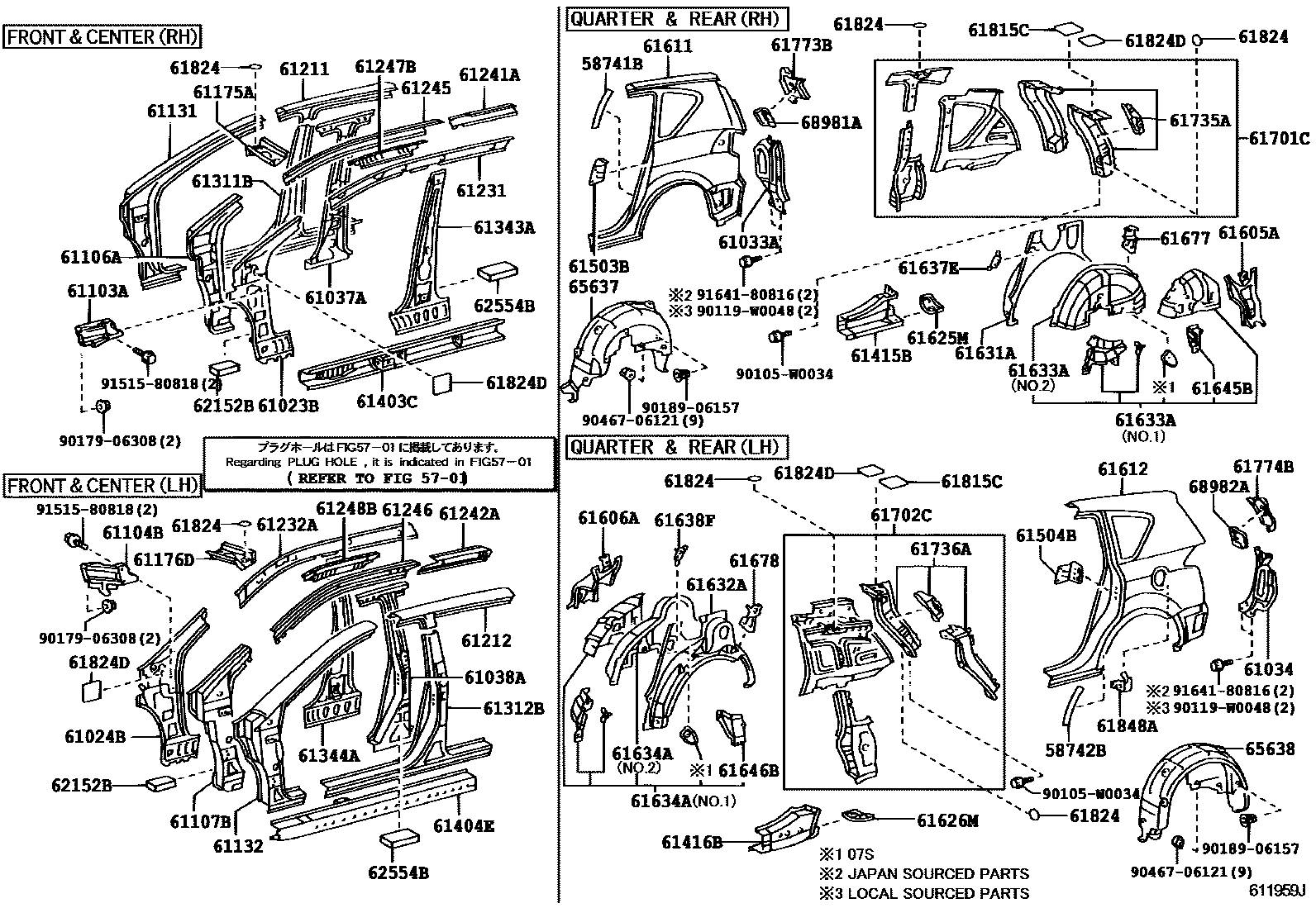

Toyota COROLLA EPC diagram 6101, 侧梁, with 1 images and 68 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58741B | Right side enclosure protection panel | 58741-0F010 |
| 58742B | Left side enclosure protection panel | 58742-0F010 |
| 61023B | Right body inner front pillar sub-assembly | 61023-0F010 |
| 61024B | Left body inner front pillar sub-assembly | 61024-0F010 |
| 61033A | Rear door opening side reinforcement sub-assembly | 61033-0F010 |
| 61034 | Rear door opening left reinforcement sub-assembly | 61034-0F010 |
| 61037A | Right body center pillar reinforcement sub-assembly | 61037-0F010 · 61037-0F902 · 61037-0F903 |
| 61038A | Left body center pillar reinforcement sub-assembly | 61038-0F010 · 61038-0F902 · 61038-0F903 |
| 61103A | Right front wall side reinforcement sub-assembly | 61103-0F010 |
| 61104B | Left front wall side reinforcement sub-assembly | 61104-0F010 |
| 61106A | Right body front pillar reinforcement sub-assembly | 61106-0F010 |
| 61107B | Left side body front pillar reinforcement sub-assembly | 61107-0F010 |
| 61131 | Right body outer front upper pillar | 61131-0F010 |
| 61132 | Left body outer front upper pillar | 61132-0F010 |
| 61175A | No. 2 right outer front pillar upper reinforcement | 61175-0F010 |
| 61176D | No. 2 left body exterior front pillar reinforcement | 61176-0F010 |
| 61211 | Roof right outer longitudinal beam | 61211-0F010 |
| 61212 | Roof left outer longitudinal beam | 61212-0F010 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-0F010 |
| 61232A | Roof left inner longitudinal beam | 61232-0F010 |
| 61241A | Right rear roof rail corner panel | 61241-0F010 |
| 61242A | Left rear roof rail corner panel | 61242-0F010 |
| 61245 | Roof right outer longitudinal beam reinforcement | 61245-0F010 |
| 61246 | Roof left outer longitudinal beam reinforcement | 61246-0F010 |
| 61247B | Roof right inner longitudinal beam reinforcement | 61247-0F010 |
| 61248B | Roof left inner longitudinal beam reinforcement | 61248-0F010 |
| 61311B | Right body outer center pillar | 61311-0F010 · 61311-0F011 |
| 61312B | Left body outer center pillar | 61312-0F010 · 61312-0F011 |
| 61343A | Right body inner center pillar | 61343-0F900 |
| 61344A | Left body inner center pillar | 61344-0F900 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-0F010 · 61403-0F011 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-0F010 · 61404-0F011 |
| 61415B | Right door outer sill extension | 61415-0F010 |
| 61416B | Left door outer sill extension | 61416-0F010 |
| 61503B | Right side locking column reinforcement sub-assembly | 61503-0F010 |
| 61504B | Left side locking column reinforcement sub-assembly | 61504-0F010 |
| 61605A | Right side panel reinforcement sub-assembly | 61605-0F010 |
| 61606A | Left side enclosure reinforcement sub-assembly | 61606-0F010 |
| 61611 | Right side hoarding | 61601-0F010 · 61601-0F011 |
| 61612 | left side panel | 61602-0F010 · 61602-0F011 |
| 61625M | Right side panel reinforcement bracket | 61625-0F010 |
| 61626M | Left side panel reinforcement bracket | 61626-0F010 |
| 61631A | Right wheel cover outer panel | 61631-0F010 · 61631-0F011 |
| 61632A | Left side wheel cover outer panel | 61632-0F010 · 61632-0F011 |
| 61633A | Right wheel housing lining panel | 61607-0F902 · 61607-0F903 · 61633-0F010 · 61633-0F020 |
| 61634A | Left side wheel housing lining panel | 61608-0F902 · 61608-0F903 · 61634-0F010 · 61634-0F020 |
| 61637E | Side wheel arch bracket | 61637-0F010 |
| 61638F | Left side wheel cover bracket | 61637-0F010 |
| 61645B | Right rear side wheel housing corner panel | 61645-0F010 |
| 61646B | Left rear side wheel housing corner panel | 61646-0F010 |
| 61677 | Right No. 2 seat belt anchor lower reinforcement | 61677-0F010 |
| 61678 | Left No. 2 seat belt anchor lower reinforcement | 61678-0F010 |
| 61701C | Roof right side outer panel sub-assembly | 61701-0F901 · 61701-0F902 |
| 61702C | Roof left outer panel sub-assembly | 61702-0F901 · 61702-0F902 |
| 61735A | Right rear roof inner panel | 61735-0F900 |
| 61736A | Left rear roof inner panel | 61736-0F900 |
| 61773B | Back door upper right opening frame | 61773-0F010 |
| 61774B | Back door upper left opening frame | 61774-0F010 |
| 61815C | Inner roof cover | 61815-64010 |
| 61824 | Noise Control Panel No. 1 | 61824-12050 · 61824-12060 |
| 61824D | Noise Control Panel No. 1 | 61824-52040 |
| 61848A | Left side panel fixing | 61848-0F010 |
| 62152B | No. 2 silencer pad on cowl side | 62152-12050 |
| 62554B | No. 4 column pad | 62554-0F010 |
| 65637 | Right rear wheel house lining | 65637-0F010 · 65637-0F011 |
| 65638 | Left rear wheel house lining | 65638-0F010 · 65638-0F011 |
| 68981A | Back door right side support rod fixing | 68981-0F010 |
| 68982A | Back door left support rod fixing | 68982-0F010 |
